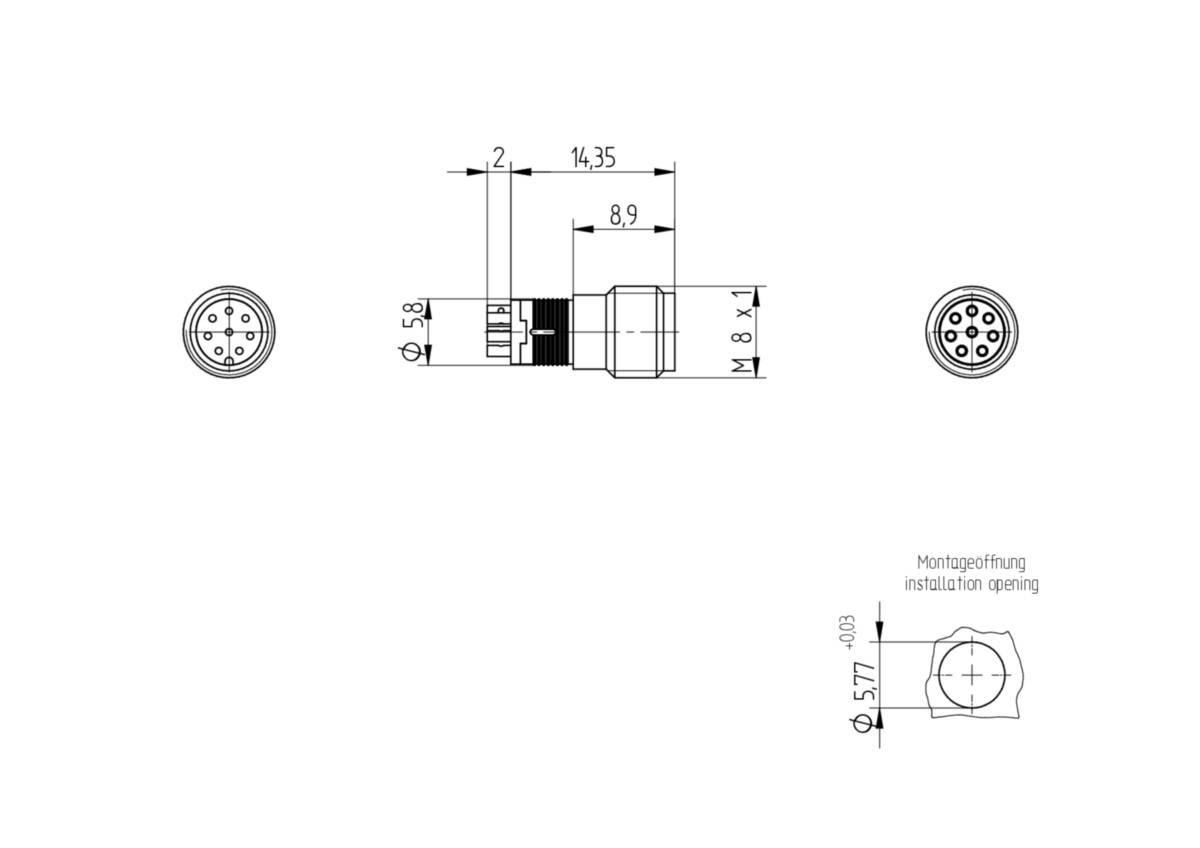

M8 Insert Sensor/Actuator Receptacle Connector
€9.29*
Prices excl. VAT plus shipping costs
Article number:RSMEDG 8
Manufacturer number:88036
EAN:04020841666179
Brand:Lumberg Automation
Minimum order quantity:10
Product information
M8 Insert Sensor/Actuator Receptacle Connector: Male, insert, M8 Screw - mating side, solder contacts - connecting side, 8-pin, A-coded, unshielded, metallic grey housing, 30 V AC/DC, 1.5 A (26 AWG)
Downloads
Datasheet (EN)Specifications
| Ambient Temperature (Operation)*: | - 25 °C - + 85 °C |
|---|---|
| Attachment Material: | CuZn |
| Attachment Plating: | Cu/Ni |
| Attachment Type: | Screw-Locking |
| Coding: | A |
| Connecting Side: | Solder Contacts |
| Connector Design: | Insert |
| Connector Type: | Receptacle |
| Contact Base Material (#1): | CuZn |
| Contact Bearer Color: | Black |
| Contact Bearer Material (#1): | PA |
| Contact Plating: | Cu/Au |
| Contact Resistance: | ≤ 10 mOhm |
| Design Standard: | IEC 61076-2-104 |
| Fastening Torque (Attachment): | M 8x1: 30 Ncm, hand-tight |
| Flammability Class (Contact Bearer): | UL 94 V-0 |
| Housing Color: | Silver |
| Housing Material: | CuZn |
| Housing Plating: | Cu/Ni |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Item Description: | RSMEDG 8 |
| Long Description (#1): | M8 Insert Sensor/Actuator Receptacle Connector: Male, insert, M8 Screw - mating side, solder contacts - connecting side, 8-pin, A-coded, unshielded, metallic grey housing, 30 V AC/DC, 1.5 A (26 AWG) |
| Mating Cycles: | ≤ 100 |
| Mating Side: | M8 Screw |
| Note Derating: | * Notice derating |
| Number of Pins: | 8 |
| Operating Temperature (UL): | max. + 95 °C |
| Operating Voltage: | 30 V AC/DC |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Part Number (#1): | 88036 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Potted: | |
| Product Family: | Sensor / Actuator Connectors |
| Product Sub Family: | M8 Insert |
| Protection Degree / IP Rating**: | IP67 |
| Protection Degree / IP Rating Note: | * only if mounted and locked in combination with Hirschmann / Lumberg connector. On the installation side tightness has to be assured by taking proper measures. |
| Rated Current (UL)*: | 1 A |
| Rated Current*: | 1.5 A (26 AWG) |
| Rated Impulse Voltage: | 0.8 kV |
| Rated Voltage: | 30 V |
| Rated Voltage (UL): | 30 V AC/DC |
| RoHS Compliant: | yes |
| Shielding: | Unshielded |
| Type of Connection: | Solder |
| Type of Contact / Gender: | Male |
| UL: | UL 2238; cURus |
| UL-File: | E315587 |
| uniek_nr: | aut88036 |
