Fast Ethernet Cat5e Data Dubbelzijdige Kabelset
€ 152,95*
Prijzen excl. BTW en excl. verzendkosten
Artikelnummer:0985 S4742 104/15 M
Fabrikantnummer:2103
EAN:04001088014220
Merk:Lumberg Automation
Minimale bestelhoeveelheid:5
Productinformatie

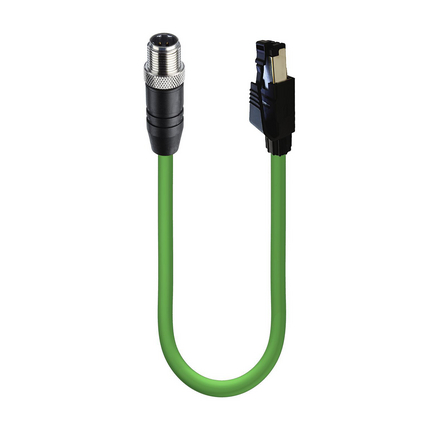

De Fast Ethernet Cat5e Data Dubbelzijdige Kabelset biedt betrouwbare dataoverdracht en connectiviteit voor industriële en automatiserings toepassingen. Het beschikt over een mannelijke rechte D-gecodeerde zwarte M12 Standaard connector en een mannelijke rechte RJ45-gecodeerde zwarte RJ45 Field Attachable connector. De kabelset is afgeschermd, ondersteunt spanningen van 30 V AC / 42 V DC en heeft een stroomsterkte van 1.5 A. De groene TPE kabel bevat 4 draden met een doorsnede van 0.38 mm², wat duurzaamheid en flexibiliteit in verschillende omgevingen garandeert. Werkend binnen een temperatuurbereik van -40 °C tot +90 °C en voorzien van een IP65, IP67 en IP69K beschermingsgraad aan de M12 kant, is deze kabelset geschikt voor veeleisende omstandigheden. Het ondersteunt Fast Ethernet Cat5e dataoverdrachtssnelheden tot 100 Mbit/s, wat het ideaal maakt voor industriële netwerken met hoge snelheid.
Downloads
Datablad (EN)Specificaties
| Ambient Temperature (Drag Chain Inst): | - 25 °C - + 60 °C |
|---|---|
| Ambient Temperature (Fixed Installation): | - 40 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation): | - 40 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Operation)*: | - 40 °C - + 90 °C |
| Ambient Temperature (Operation), Side 2*: | - 40 °C - + 70 °C |
| Attachment Material: | CuZn |
| Attachment Plating: | Nickel-plated |
| Attachment Type: | Coupling Screw |
| Cable Characteristics: | Exclusion of dangerous materials; Sunlight resistance: UL 1581 sec. 1200 |
| Cable Diameter D: | ø 6.50 ± 0.20 mm |
| Cable Jacket Color: | green matt similarly RAL 6018 |
| Cable Jacket Material: | TPE |
| Cable Length: | 15 m |
| Cable Number: | 542 |
| Coding: | D |
| Coding, Side 2: | RJ45 |
| Conductor Size: | 0.38 mm² |
| Conductor material: | Cu |
| Connector Design: | Straight |
| Connector Design, Side 2: | Straight |
| Connector Type: | Cordset, double ended |
| Contact Base Material (#1): | CuSn |
| Contact Base Material, Side 2: | CuSn |
| Contact Bearer Color: | Black |
| Contact Bearer Color, Side 2: | Black |
| Contact Bearer Material (#1): | PBT |
| Contact Bearer Material, Side 2: | PA |
| Contact Plating: | Cu/Au |
| Contact Plating, Side 2: | Cu/Au |
| Contact Resistance: | ≤ 10 mOhm |
| Contact Resistance, Side 2: | ≤ 20 mOhm |
| Core Colors: | white, blue, yellow, orange |
| Cycles (Bending): | ˃ 5 M |
| Data Transmission: | Fast Ethernet Cat5e |
| Data Transmission Rate: | 100 Mbit/s |
| Design Standard: | IEC 61076-2-101 |
| Design Standard, Side 2: | IEC 60603-7 |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Flammability Class (Cable Jacket): | CM (UL 1685) |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Flammability Class (Contact Bearer), Side 2: | UL 94 V-0 |
| Flammability Class (Housing), Side 2: | UL 94 V-0 |
| Flammability Class (Molded Body): | UL 94 HB |
| Foil shield: | Al-PT Foil |
| Housing Color, Side 2: | Black |
| Housing Material, Side 2: | PA |
| Insulated Wire Diameter: | ø 1.50 mm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Insulation Resistance Cable: | ≥ 5000 MΩxkm |
| Item Description: | 0985 S4742 104/15 M |
| Long Description (#1): | Fast Ethernet Cat5e Data Double-Ended Cordset: Male straight D-coded black M12 Standard to male straight RJ45-coded black RJ45 Field Attachable, shielded, 30 V AC / 42 V DC, 1.5 A; TPE green cable, 4-wires, 0.38 mm² |
| Mating Cycles: | ≤ 100 |
| Mating Cycles, Side 2: | ≤ 750 |
| Minimal Bending Radius (Fixed Inst): | ˃ 30 mm |
| Minimal Bending Radius (Flexible Inst): | ˃ 60 mm |
| Molded Body Color: | Black |
| Molded Body Material: | TPU |
| Note: | Do not connect or disconnect under load. |
| Note Derating: | Notice derating |
| Number of Pins: | 4 |
| Number of Pins, Side 2: | 4 |
| Number of Wires: | 4 |
| Oil Resistance: | UL OIL RES I |
| Operating Voltage: | 30 V AC / 42 V DC |
| Overall Shield (Cable): | Cu-ETP1 tinned |
| Overvoltage Category: | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2: | I acc. to DIN EN 60664-1 (VDE 0110-1) |
| Part Number (#1): | 2103 |
| Pin Color 01@Side 1: | yellow |
| Pin Color 01@Side 2: | yellow |
| Pin Color 02@Side 1: | white |
| Pin Color 02@Side 2: | orange |
| Pin Color 03@Side 1: | orange |
| Pin Color 03@Side 2: | white |
| Pin Color 04@Side 1: | blue |
| Pin Color 04@Side 2: | blue |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Product Family: | Data Connectors |
| Product Sub Family: | M12 Standard |
| Product Sub Family, Side 2: | RJ45 Field Attachable |
| Protection Degree / IP Rating**: | IP65, IP67, IP69K |
| Protection Degree / IP Rating, Side 2**: | IP20 |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Rated Current*: | 1.5 A |
| Rated Impulse Voltage: | 1 kV |
| Rated Voltage: | 60 V |
| RoHS Compliant: | yes |
| Shielding: | Shielded |
| Shielding Material: | CuZn, tin-plated |
| Shielding Material, Side 2: | Copper, nickel-plated |
| Type of Contact / Gender: | Male |
| Type of Contact / Gender, Side 2: | Male |
| Wire Insulation Material: | PP |
| uniek_nr: | aut2103 |
