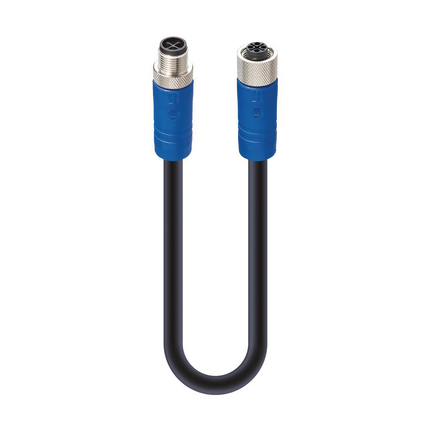

M12 Power Dubbelzijdige Kabelset
€ 130,62*
Prijzen excl. BTW en excl. verzendkosten
Artikelnummer:
RSTS 4S-RKTS 4S-915/10 M
Fabrikantnummer:
934853086
Merk:
Lumberg Automation
Minimale bestelhoeveelheid:
10
Productinformatie
De M12 Power Dubbelzijdige Kabelset is ontworpen voor robuuste en veilige stroomverbindingen. Deze kabelset heeft een mannelijke rechte naar vrouwelijke rechte configuratie met 4-pins (3+PE) S-gecodeerde connectoren, wat betrouwbare stroomverdeling garandeert. De connectoren zijn afgeschermd en de blauwe behuizing is vervaardigd uit TPE voor verbeterde duurzaamheid. Deze kabelset is geschikt voor 600V AC/DC en 16A en voldoet aan hoge prestatienormen. De zwarte PVC-kabel met een geleidergrootte van 1,50 mm² biedt flexibiliteit en duurzaamheid in diverse installaties. Werktemperaturen variëren van -40 °C tot +125 °C. De kabelset heeft een IP65- en IP67-beschermingsklasse, waardoor deze geschikt is voor zware omgevingen. Het bevat een vertind koperen gevlochten afscherming voor algehele afscherming, wat minimale interferentie en signaalintegriteit waarborgt.
Downloads
Datablad (EN)Specificaties
| Operating Voltage: | 600 V AC/DC |
|---|---|
| O-Ring Material, Side 2: | FKM |
| O-Ring Material: | FKM |
| Number of Wires: | 4 |
| Number of Pins, Side 2: | 4(3+PE) |
| Number of Pins: | 4(3+PE) |
| Overall Shield (Cable): | tinned copper braided screen |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Pin Color 03@Side 2: | black 3 |
| Pin Color 03@Side 1: | black 3 |
| Pin Color 02@Side 2: | black 2 |
| Pin Color 02@Side 1: | black 2 |
| Pin Color 01@Side 2: | black 1 |
| Pin Color 01@Side 1: | black 1 |
| Part Number (#1): | 934853086 |
| Type of Contact / Gender, Side 2: | female |
| Type of Contact / Gender: | Male |
| Shielding Material, Side 2: | CuZn, plating: Ni |
| Shielding Material: | CuZn, plating: Ni |
| Shielding: | Shielded |
| RoHS Compliant: | yes |
| Rated Voltage (UL): | 600 V |
| Rated Voltage: | 630 V |
| UL: | UL 2237; cULus |
| UL Cable Type: | AWM: 21179 |
| Wire Insulation Material: | PP |
| UL-File-No, Material Molding, Side 2: | E47960 |
| UL-File-No, Material Molding: | E47960 |
| UL-File-No, Material Contact Bearer, Side 2: | E41871 |
| UL-File-No, Material Contact Bearer: | E41871 |
| UL-File: | E497237 |
| Rated Impulse Voltage: | 6.0 kV |
| Rated Current*: | 16 A |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Pin Color PE@Side 2: | green-yellow |
| Pin Color PE@Side 1: | green-yellow |
| Product Family: | Power Connector |
| Product Sub Family: | M12 Power |
| Rated Current (UL)*: | 16 A |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67 |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Protection Degree / IP Rating Note: | * only if mounted and locked in combination with Hirschmann / Lumberg connector. |
| Protection Degree / IP Rating (IEC 60529), Side 2: | IP65, IP67 |
| Protection Degree / IP Rating (IEC 60529): | IP65, IP67 |
| Product Sub Family, Side 2: | M12 Power |
| Note Derating: | * Notice derating |
| Connector Type: | Cordset, double ended |
| Connector Design, Side 2: | Straight |
| Connector Design: | Straight |
| Conductor material: | Cu |
| Conductor Size: | 1.50 mm² |
| Coding, Side 2: | S |
| Coding: | S |
| Clearance / Creepage Distance, Side 2: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Clearance / Creepage Distance: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Contact Base Material (#1): | CuNi |
| Contact Base Material, Side 2: | CuNi |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Contact Resistance: | ≤ 10 mOhm |
| Contact Plating, Side 2: | Cu/Au |
| Contact Plating: | Cu/Au |
| Contact Bearer Material, Side 2: | PBT GF |
| Contact Bearer Material (#1): | PBT GF |
| Contact Bearer Color, Side 2: | Black |
| Contact Bearer Color: | black |
| Attachment Material, Side 2: | CuZn |
| Attachment Material: | CuZn |
| Ambient Temperature (Operation), Side 2*: | -40 °C to +125 °C, notice derating |
| Ambient Temperature (Operation)*: | -40 °C to +125 °C, notice derating |
| Ambient Temperature (Flex Installation): | -15 °C to +80 °C |
| Ambient Temperature (Fixed Installation): | -30 °C to +80 °C |
| Ambient Temperature (Drag Chain Inst): | -0…+60 °C |
| Attachment Plating: | Cu/Ni |
| Attachment Plating, Side 2: | Cu/Ni |
| Attachment Type: | Coupling Screw |
| Cable Number: | 915 |
| Cable Length: | 10 m |
| Cable Jacket Material: | PVC |
| Cable Jacket Color: | black |
| Cable Diameter D: | ø 9.4 ±0.20 mm |
| Attachment Type, Side 2: | Coupling Nut |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Insulated Wire Diameter: | ø 2.35 mm |
| Inner Jacket: | PVC |
| Insulation Resistance Cable: | min 500 MOhm x km |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Item Description: | RSTS 4S-RKTS 4S-915/10 M |
| Molded Body Material, Side 2: | TPE |
| Molded Body Material: | TPE |
| Molded Body Color, Side 2: | blue |
| Molded Body Color: | blue |
| Minimal Bending Radius (Flexible Inst): | ˃ 7.5 x D |
| Minimal Bending Radius (Fixed Inst): | ˃ 4 x D |
| Mating Cycles, Side 2: | ≤ 100 |
| Mating Cycles: | ≤ 100 |
| Long Description (#1): | M12 Power Double-Ended Cordset: Male straight to female straight, 4-pin(3+PE), S-coded, shielded, blue body, 600 V AC/DC, 16 A; PVC black cable, 1.50 mm² |
| Flammability Class (Molded Body), Side 2: | UL 94 HB |
| Design Standard, Side 2: | IEC 61076-2-111 |
| Design Standard: | IEC 61076-2-111 |
| Cycles (Bending): | ˃ 1 M |
| Customer Specific Product: | |
| Fastening Torque (Contact Screw): | M 12x1: (50-60) Ncm, hand-tight |
| Flammability Class (Molded Body): | UL 94 HB |
| Flammability Class (Contact Bearer), Side 2: | UL 94 V-2 |
| Flammability Class (Contact Bearer): | UL 94 V-2 |
| Flammability Class (Cable Jacket): | VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 / UL VW-1, CSA FT1 |
| Fastening Torque (Contact Screw), Side 2: | M 12x1: (50-60) Ncm, hand-tight |
