PROFIBUS Data Dubbelzijdige Kabel
€ 184,10*
Prijzen excl. BTW en excl. verzendkosten
Artikelnummer:0975 254 101/24 M
Fabrikantnummer:67830
EAN:04020841573231
Merk:Lumberg Automation
Minimale bestelhoeveelheid:5
Productinformatie

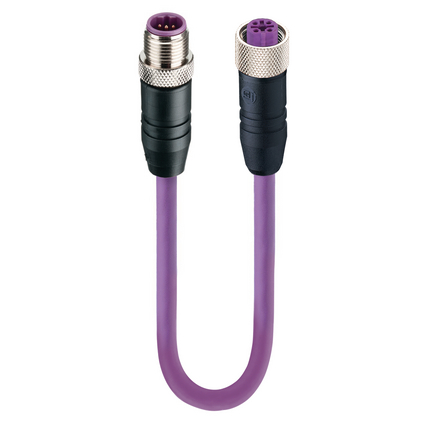

De PROFIBUS Data Dubbelzijdige Kabel is ontworpen voor het verbinden van PROFIBUS-apparaten. Deze hoogwaardige kabel is voorzien van een mannelijke rechte B-gecodeerde zwarte M12-connector aan de ene kant en een vrouwelijke rechte B-gecodeerde zwarte M12-connector aan de andere kant. De connectoren zijn afgeschermd om betrouwbare en storingsvrije gegevensoverdracht te garanderen. De kabel heeft een robuuste PUR paarse mantel, met 2 draden en een geleidergrootte van 0,34 mm², en kan 50 V AC / 60 V DC en een stroomsterkte van 4 A aan. Het is ontworpen volgens industriële normen zoals IEC 61076-2-101 en biedt een bedrijfstemperatuurbereik van -25 °C tot +80 °C. Met uitstekende weerstand tegen chemicaliën, oliën en omgevingsfactoren is deze kabel ideaal voor veeleisende industriële omgevingen.
Downloads
Datablad (EN)Specificaties
| Ambient Temperature (Drag Chain Inst): | - 25 °C - + 60 °C |
|---|---|
| Ambient Temperature (Fixed Installation): | - 50 °C - + 80 °C |
| Ambient Temperature (Flex Installation): | - 25 °C - + 80 °C |
| Ambient Temperature (Operation)*: | - 25 °C - + 80 °C |
| Ambient Temperature (Operation), Side 2*: | - 25 °C - + 80 °C |
| Attachment Material: | CuZn |
| Attachment Material, Side 2: | CuZn |
| Attachment Plating: | Nickel-plated |
| Attachment Plating, Side 2: | Nickel-plated |
| Attachment Type: | Coupling Screw |
| Attachment Type, Side 2: | Coupling Nut |
| Cable Characteristics: | Exclusion of dangerous materials; Line fulfills the transmission values RS485 (Type A) of the PROFIBUS user organization; Free of lacquer wetting disturbing substances; Good microbes and hydrolysis resistance Mainly plasticizer diffusion free; Good |
| Cable Diameter D: | ø 7.60 ± 0.30 mm |
| Cable Jacket Color: | violet matt similarly RAL 4001 |
| Cable Jacket Material: | PUR |
| Cable Length: | 24 m |
| Cable Number: | 254 |
| Coding: | B |
| Coding, Side 2: | B |
| Conductor Size: | 0.34 mm² |
| Conductor material: | Cu |
| Connector Design: | Straight |
| Connector Design, Side 2: | Straight |
| Connector Type: | Cordset, double ended |
| Contact Base Material (#1): | CuZn |
| Contact Base Material, Side 2: | CuZn |
| Contact Bearer Color: | Violett |
| Contact Bearer Color, Side 2: | Violett |
| Contact Bearer Material (#1): | TPU-GF |
| Contact Bearer Material, Side 2: | TPU |
| Contact Plating: | Cu/Au |
| Contact Plating, Side 2: | Cu/Au |
| Contact Resistance: | ≤ 10 mOhm |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Core Colors: | red, green |
| Cycles (Bending): | ˃ 1 M |
| Data Transmission: | PROFIBUS |
| Design Standard: | IEC 61076-2-101 |
| Design Standard, Side 2: | IEC 61076-2-101 |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Fastening Torque (Attachment), Side 2: | M 12x1: (50-60) Ncm, hand-tight |
| Flammability Class (Cable Jacket): | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2, flame-retardant |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Flammability Class (Contact Bearer), Side 2: | UL 94 HB |
| Flammability Class (Molded Body): | UL 94 HB |
| Flammability Class (Molded Body), Side 2: | UL 94 HB |
| Foil shield: | Al-PT Foil |
| Halogenfree: | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
| Insulated Wire Diameter: | ø 2.60 ± 0.05 mm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Insulation Resistance Cable: | ˃ 2500 MΩxkm |
| Item Description: | 0975 254 101/24 M |
| Long Description (#1): | PROFIBUS Data Double-Ended Cordset: Male straight B-coded black M12 Standard to female straight B-coded black M12 Standard, shielded, 50 V AC / 60 V DC, 4 A; PUR violet cable, 2-wires, 0.34 mm² |
| Mating Cycles: | ≤ 100 |
| Mating Cycles, Side 2: | ≤ 100 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Molded Body Color: | Black |
| Molded Body Color, Side 2: | Black |
| Molded Body Material: | TPU |
| Molded Body Material, Side 2: | TPU |
| Note: | Do not connect or disconnect under load. |
| Note Derating: | Notice derating |
| Number of Pins: | 5 |
| Number of Pins, Side 2: | 5 |
| Number of Wires: | 2 |
| Operating Voltage: | 50 V AC / 60 V DC |
| Overall Shield (Cable): | Cu-ETP1 tinned |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Part Number (#1): | 67830 |
| Pin Color 01@Side 1: | n.c. |
| Pin Color 01@Side 2: | n.c. |
| Pin Color 02@Side 1: | green |
| Pin Color 02@Side 2: | green |
| Pin Color 03@Side 1: | n.c. |
| Pin Color 03@Side 2: | n.c. |
| Pin Color 04@Side 1: | red |
| Pin Color 04@Side 2: | red |
| Pin Color 05@Side 1: | n.c. |
| Pin Color 05@Side 2: | n.c. |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Product Family: | Data Connectors |
| Product Sub Family: | M12 Standard |
| Product Sub Family, Side 2: | M12 Standard |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67 |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Rated Current*: | 4 A |
| Rated Impulse Voltage: | 1.5 kV |
| Rated Voltage: | 60 V |
| RoHS Compliant: | yes |
| Shielding: | Shielded |
| Shielding Material: | CuZn, tin-plated |
| Shielding Material, Side 2: | CuZn, tin-plated |
| Type of Contact / Gender: | Male |
| Type of Contact / Gender, Side 2: | Female |
| UL Cable Type: | AWM: 20549 |
| Wire Insulation Material: | PE |
| uniek_nr: | aut67830 |
