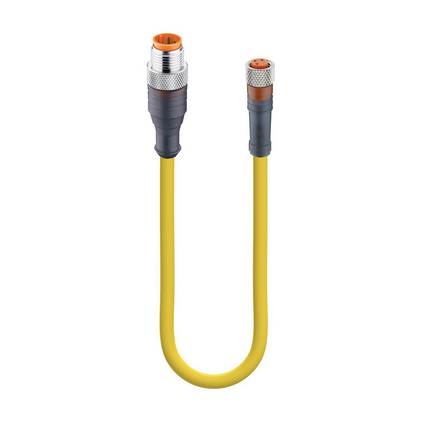

Sensor/Actuator Double-Ended Cordset
€ 23,59*
Prijzen excl. BTW en excl. verzendkosten
Artikelnummer:
RST 3-RKMV 3-341/4 M
Fabrikantnummer:
12419
EAN:
04001088049956
Merk:
Lumberg Automation
Minimale bestelhoeveelheid:
10
Productinformatie
De Sensor/Actuator Double-Ended Cordset is ontworpen om betrouwbare connectiviteit te bieden voor sensor- en actuatoortoepassingen. Het beschikt over een mannelijke rechte A-gecodeerde doorschijnende 3-pins M12-connector aan de ene kant en een vrouwelijke rechte A-gecodeerde doorschijnende 3-pins M8-connector aan de andere kant, wat hoogwaardige verbindingen in diverse omgevingen mogelijk maakt. De kabel ondersteunt 50 V AC en 60 V DC operaties met een maximale stroom van 4 A, wat zorgt voor efficiënte stroomoverdracht. De gele PUR-kabel, met een draaddoorsnede van 0,34 mm², biedt duurzaamheid en flexibiliteit, zodat deze geschikt is voor zowel statische als dynamische installaties. De connectoren zijn getest voor maximaal 100 aansluitcycli en bieden een veilige verbinding die bestand is tegen verontreiniging en vocht (IP65, IP67, IP68 en IP69K gecertificeerd).
Downloads
Datablad (EN)Specificaties
| Mating Cycles: | ≤ 100 |
|---|---|
| Oil Resistance: | Good chemical and oil resistance |
| Operating Temperature (UL): | max. + 50 °C |
| Operating Temperature (UL), Side 2: | max. + 50 °C |
| Operating Voltage: | 50 V AC / 60 V DC |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Part Number (#1): | 12419 |
| Pin Color 01@Side 1: | brown |
| Pin Color 01@Side 2: | brown |
| O-Ring Material, Side 2: | FKM, green |
| Number of Wires: | 3 |
| Mating Cycles, Side 2: | ≤ 100 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Molded Body Color: | Translucent |
| Molded Body Color, Side 2: | Translucent |
| Molded Body Material: | TPU |
| Molded Body Material, Side 2: | TPU |
| Note: | Do not connect or disconnect under load. |
| Note Derating: | Notice derating |
| Number of Pins: | 3 |
| Number of Pins, Side 2: | 3 |
| Pin Color 03@Side 1: | blue |
| Pin Color 03@Side 2: | blue |
| Pin Color 04@Side 1: | black |
| Rated Impulse Voltage: | 1.5 kV |
| Rated Voltage: | 60 V |
| Rated Voltage (UL): | 30 V AC/DC |
| RoHS Compliant: | yes |
| Shielding: | Unshielded |
| Type of Contact / Gender: | Male |
| Type of Contact / Gender, Side 2: | Female |
| UL: | UL 2238; cURus |
| UL Cable Type: | AWM: 20549 |
| UL-File: | E315587 |
| Rated Current*: | 4 A |
| Rated Current (UL)*: | 4 A |
| Pin Color 04@Side 2: | black |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Product Family: | Sensor / Actuator Connectors |
| Product Sub Family: | M12 Standard |
| Product Sub Family, Side 2: | M8 Standard |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Protection Degree / IP Rating**: | IP65, IP67, IP68 (1 m / 24 h), IP69K |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67, IP69K |
| Wire Insulation Material: | PP |
| Long Description (#1): | Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 3-pin M12 Standard connector to female straight A-coded translucent 3-pin M8 Standard connector, 50 V AC / 60 V DC, 4 A; PUR yellow cable, 3-wires, 0.34 mm² |
| Ambient Temperature (Drag Chain Inst): | - 25 °C - + 60 °C |
| Cable Jacket Material: | PUR |
| Cable Length: | 4 m |
| Cable Number: | 341 |
| Coding: | A |
| Coding, Side 2: | A |
| Conductor Size: | 0.34 mm² |
| Conductor material: | Cu |
| Connector Design: | Straight |
| Connector Design, Side 2: | Straight |
| Connector Type: | Cordset, double ended |
| Contact Base Material (#1): | CuZn |
| Cable Jacket Color: | yellow matt similarly RAL 1021 |
| Cable Diameter D: | ø 4.30 ± 0.20 mm |
| Ambient Temperature (Fixed Installation): | - 50 °C - + 80 °C |
| Ambient Temperature (Flex Installation): | - 25 °C - + 80 °C |
| Ambient Temperature (Operation)*: | - 40 °C - + 90 °C |
| Ambient Temperature (Operation), Side 2*: | - 40 °C - + 90 °C |
| Attachment Material: | CuZn |
| Attachment Material, Side 2: | CuZn |
| Attachment Plating: | Nickel-plated |
| Attachment Plating, Side 2: | Nickel-plated |
| Attachment Type: | Coupling Screw |
| Attachment Type, Side 2: | Coupling Nut |
| Cable Characteristics: | Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness Flexibility |
| Contact Base Material, Side 2: | CuSn |
| Contact Bearer Color: | Orange |
| Contact Bearer Color, Side 2: | Orange |
| Flammability Class (Cable Jacket): | DIN EN 50265-2-2, VDE 0482-265-2-2, IEC 60332-2-2, CSA FT2 |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Flammability Class (Contact Bearer), Side 2: | UL 94 HB |
| Flammability Class (Molded Body): | UL 94 HB |
| Flammability Class (Molded Body), Side 2: | UL 94 HB |
| Halogenfree: | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
| Insulated Wire Diameter: | ø 1.30 ± 0.10 mm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Insulation Resistance Cable: | min 1000 MOhm x km |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Fastening Torque (Attachment), Side 2: | M 8x1: 30 Ncm, hand-tight |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Contact Bearer Material (#1): | TPU-GF |
| Contact Bearer Material, Side 2: | TPU |
| Contact Plating: | Cu/Au |
| Contact Plating, Side 2: | Cu/Au |
| Contact Resistance: | ≤ 10 mOhm |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Cycles (Bending): | ˃ 2 M |
| Design Standard: | IEC 61076-2-101 |
| Design Standard, Side 2: | IEC 61076-2-104 |
| Item Description: | RST 3-RKMV 3-341/4 M |
| Uniek Nr.: | aut12419 |
