Sensor/Actuator Double-Ended Cordset
€ 33,34*
Prijzen excl. BTW en excl. verzendkosten
Artikelnummer:
RST 5-RKT 5-270/3 M
Fabrikantnummer:
39551
EAN:
04020841406102
Merk:
Lumberg Automation
Minimale bestelhoeveelheid:
10
Productinformatie
De Sensor/Actuator Double-Ended Cordset is uitgerust met een mannelijke rechte A-gecodeerde doorzichtige 5-pins M12-connector aan de ene kant en een vrouwelijke rechte A-gecodeerde doorzichtige 5-pins M12-connector aan de andere kant. Deze cordset is geschikt voor 50 V AC/ 60 V DC en kan tot 4 A stroom verwerken. De connectoren zijn verbonden via een robuuste 5-aderige grijze PUR-kabel met een geleidergrootte van 0,50 mm², waardoor betrouwbare en stabiele verbindingen in diverse toepassingen worden gegarandeerd. Het compacte ontwerp en het brede bedrijfstemperatuurbereik (-40 °C tot +90 °C) maken het geschikt voor veeleisende omgevingen. Daarnaast biedt de cordset een hoge mate van bescherming (IP65, IP67, IP68, IP69K) en uitstekende weerstand tegen chemicaliën, oliën en extreme omstandigheden.
Downloads
Datablad (EN)Specificaties
| Note Derating: | Notice derating |
|---|---|
| Pin Color 02@Side 1: | white |
| Pin Color 02@Side 2: | white |
| Pin Color 03@Side 1: | blue |
| Pin Color 03@Side 2: | blue |
| Pin Color 04@Side 1: | black |
| Pin Color 04@Side 2: | black |
| Pin Color 05@Side 1: | green-yellow |
| Pin Color 05@Side 2: | green-yellow |
| Pin Color 01@Side 2: | brown |
| Pin Color 01@Side 1: | brown |
| Number of Pins: | 5 |
| Number of Pins, Side 2: | 5 |
| Number of Wires: | 5 |
| O-Ring Material, Side 2: | FKM, green |
| Oil Resistance: | Good chemical and oil resistance |
| Operating Temperature (UL): | max. + 50 °C |
| Operating Temperature (UL), Side 2: | max. + 50 °C |
| Operating Voltage: | 50 V AC / 60 V DC |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Part Number (#1): | 39551 |
| Rated Impulse Voltage: | 1.5 kV |
| Rated Voltage: | 60 V |
| Rated Voltage (UL): | 30 V AC/DC |
| RoHS Compliant: | yes |
| Shielding: | Unshielded |
| Type of Contact / Gender: | Male |
| Type of Contact / Gender, Side 2: | Female |
| UL: | UL 2238; cURus |
| UL Cable Type: | AWM: 20549 |
| UL-File: | E315587 |
| Rated Current*: | 4 A |
| Rated Current (UL)*: | 4 A |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Product Family: | Sensor / Actuator Connectors |
| Product Sub Family: | M12 Standard |
| Product Sub Family, Side 2: | M12 Standard |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Protection Degree / IP Rating**: | IP65, IP67, IP68 (1 m / 24 h), IP69K |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67, IP68 (1 m / 24 h), IP69K |
| Wire Insulation Material: | PP |
| Note: | Do not connect or disconnect under load. |
| Ambient Temperature (Drag Chain Inst): | - 25 °C - + 60 °C |
| Coding: | A |
| Coding, Side 2: | A |
| Conductor Size: | 0.5 mm² |
| Conductor material: | Cu |
| Connector Design: | Straight |
| Connector Design, Side 2: | Straight |
| Connector Type: | Cordset, double ended |
| Contact Base Material (#1): | CuSn |
| Contact Base Material, Side 2: | CuSn |
| Contact Bearer Color: | Orange |
| Contact Bearer Color, Side 2: | Orange |
| Contact Bearer Material (#1): | TPU-GF |
| Contact Bearer Material, Side 2: | TPU |
| Contact Plating: | Cu/Au |
| Cable Number: | 270 |
| Cable Length: | 3 m |
| Ambient Temperature (Fixed Installation): | - 50 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation): | - 25 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Operation)*: | - 40 °C - + 90 °C |
| Ambient Temperature (Operation), Side 2*: | - 40 °C - + 90 °C |
| Attachment Material: | CuZn |
| Attachment Material, Side 2: | CuZn |
| Attachment Plating: | Nickel-plated |
| Attachment Plating, Side 2: | Nickel-plated |
| Attachment Type: | Coupling Screw |
| Attachment Type, Side 2: | Coupling Nut |
| Cable Characteristics: | Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Free of lacquer wetting disturbing substances; Coldness flexibility |
| Cable Diameter D: | ø 5.40 ± 0.20 mm |
| Cable Jacket Color: | grey matt similarly RAL 7040 |
| Cable Jacket Material: | PUR |
| Contact Plating, Side 2: | Cu/Au |
| Contact Resistance: | ≤ 10 mOhm |
| Halogenfree: | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
| Insulated Wire Diameter: | ø 1.50 ± 0.05 mm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Insulation Resistance Cable: | min 1000 MOhm x km |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Item Description: | RST 5-RKT 5-270/3 M |

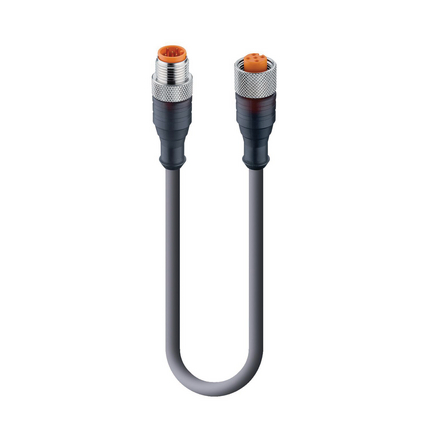

| Long Description (#1): | Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 5-pin M12 Standard connector to female straight A-coded translucent 5-pin M12 Standard connector, 50 V AC / 60 V DC, 4 A; PUR grey cable, 5-wires, 0.50 mm² |
| Mating Cycles: | ≤ 100 |
| Mating Cycles, Side 2: | ≤ 100 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Molded Body Color: | Translucent |
| Molded Body Color, Side 2: | Translucent |
| Molded Body Material: | TPU |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Cycles (Bending): | ˃ 2 M |
| Design Standard: | IEC 61076-2-101 |
| Design Standard, Side 2: | IEC 61076-2-101 |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Fastening Torque (Attachment), Side 2: | M 12x1: (50-60) Ncm, hand-tight |
| Flammability Class (Cable Jacket): | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2 |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Flammability Class (Contact Bearer), Side 2: | UL 94 HB |
| Flammability Class (Molded Body): | UL 94 HB |
| Flammability Class (Molded Body), Side 2: | UL 94 HB |
| Molded Body Material, Side 2: | TPU |
| Uniek Nr.: | aut39551 |
