Sensor/Actuator Dubbelzijdige Kabelbundel
€ 106,65*
Prijzen excl. BTW en excl. verzendkosten
Artikelnummer:RST 5-RKT 5-289/50 M
Fabrikantnummer:20173
EAN:04001088109063
Merk:Lumberg Automation
Minimale bestelhoeveelheid:1
Productinformatie
De Sensor/Actuator Dubbelzijdige Kabelbundel is een hoogwaardige verbindingsoplossing met mannelijke en vrouwelijke rechte A-gecodeerde doorschijnende 5-polige M12 Standaard connectoren. Het ondersteunt spanningen van 50 V AC / 60 V DC en stroomsterkten tot 4 A, waardoor het geschikt is voor diverse industriële toepassingen. De kabelbundel is uitgerust met een duurzame zwarte PVC-kabel met 5 draden van elk 0,34 mm², wat zorgt voor betrouwbare prestaties en flexibiliteit. De connectoren zijn ontworpen volgens IEC 61076-2-101 normen en bieden IP65/IP67 bescherming, wat zorgt voor robuuste prestaties in veeleisende omgevingen. Ideaal voor gebruik in industriële automatisering, sensoren en actuatorenverbindingen, biedt deze kabelbundel veilige en stabiele elektrische verbindingen.
Downloads
Datablad (EN)Specificaties
| Ambient Temperature (Fixed Installation): | - 40 °C - + 80 °C |
|---|---|
| Ambient Temperature (Flex Installation): | - 20 °C - + 80 °C |
| Ambient Temperature (Operation)*: | - 40 °C - + 90 °C |
| Ambient Temperature (Operation), Side 2*: | - 40 °C - + 90 °C |
| Attachment Material: | CuZn |
| Attachment Material, Side 2: | CuZn |
| Attachment Plating: | Nickel-plated |
| Attachment Plating, Side 2: | Nickel-plated |
| Attachment Type: | Coupling Screw |
| Attachment Type, Side 2: | Coupling Nut |
| Cable Characteristics: | Free of lacquer wetting disturbing substances; Exclusion of silicone |
| Cable Diameter D: | ø 5.50 ± 0.20 mm |
| Cable Jacket Color: | black |
| Cable Jacket Material: | PVC |
| Cable Length: | 50 m |
| Cable Number: | 289 |
| Coding: | A |
| Coding, Side 2: | A |
| Conductor Size: | 0.34 mm² |
| Conductor material: | Cu |
| Connector Design: | Straight |
| Connector Design, Side 2: | Straight |
| Connector Type: | Cordset, double ended |
| Contact Base Material (#1): | CuSn |
| Contact Base Material, Side 2: | CuSn |
| Contact Bearer Color: | Orange |
| Contact Bearer Color, Side 2: | Orange |
| Contact Bearer Material (#1): | TPU-GF |
| Contact Bearer Material, Side 2: | TPU |
| Contact Plating: | Cu/Au |
| Contact Plating, Side 2: | Cu/Au |
| Contact Resistance: | ≤ 10 mOhm |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Design Standard: | IEC 61076-2-101 |
| Design Standard, Side 2: | IEC 61076-2-101 |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Fastening Torque (Attachment), Side 2: | M 12x1: (50-60) Ncm, hand-tight |
| Flammability Class (Cable Jacket): | DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2 |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Flammability Class (Contact Bearer), Side 2: | UL 94 HB |
| Flammability Class (Molded Body): | UL 94 HB |
| Flammability Class (Molded Body), Side 2: | UL 94 HB |
| Insulated Wire Diameter: | ø 1.40 mm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Insulation Resistance Cable: | min 100 MOhm x km |
| Item Description: | RST 5-RKT 5-289/50 M |

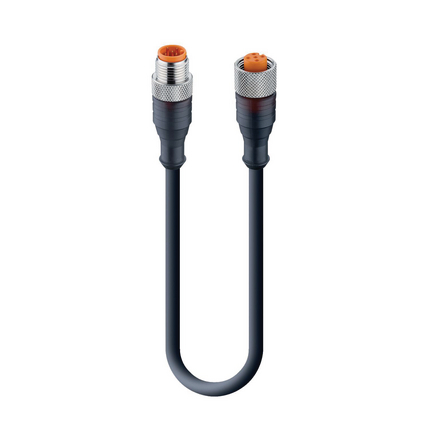

| Long Description (#1): | Sensor/Actuator Double-Ended Cordset: Male straight A-coded translucent 5-pin M12 Standard connector to female straight A-coded translucent 5-pin M12 Standard connector, 50 V AC / 60 V DC, 4 A; PVC black cable, 5-wires, 0.34 mm² |
| Mating Cycles: | ≤ 100 |
| Mating Cycles, Side 2: | ≤ 100 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Molded Body Color: | Translucent |
| Molded Body Color, Side 2: | Translucent |
| Molded Body Material: | TPU |
| Molded Body Material, Side 2: | TPU |
| Note: | Do not connect or disconnect under load. |
| Note Derating: | Notice derating |
| Number of Pins: | 5 |
| Number of Pins, Side 2: | 5 |
| Number of Wires: | 5 |
| O-Ring Material, Side 2: | FKM, green |
| Oil Resistance: | Good chemical and oil resistance |
| Operating Voltage: | 50 V AC / 60 V DC |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Part Number (#1): | 20173 |
| Pin Color 01@Side 1: | brown |
| Pin Color 01@Side 2: | brown |
| Pin Color 02@Side 1: | white |
| Pin Color 02@Side 2: | white |
| Pin Color 03@Side 1: | blue |
| Pin Color 03@Side 2: | blue |
| Pin Color 04@Side 1: | black |
| Pin Color 04@Side 2: | black |
| Pin Color 05@Side 1: | green-yellow |
| Pin Color 05@Side 2: | green-yellow |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Product Family: | Sensor / Actuator Connectors |
| Product Sub Family: | M12 Standard |
| Product Sub Family, Side 2: | M12 Standard |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67 |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Rated Current*: | 4 A |
| Rated Impulse Voltage: | 1.5 kV |
| Rated Voltage: | 60 V |
| RoHS Compliant: | yes |
| Shielding: | Unshielded |
| Type of Contact / Gender: | Male |
| Type of Contact / Gender, Side 2: | Female |
| Wire Insulation Material: | PVC |
| uniek_nr: | aut20173 |
