M12 Standard Sensor/Actuator Single-Ended Cordset
€44.06*
Prices excl. VAT plus shipping costs
Article number:RKT 4-225/20 M
Manufacturer number:44106
EAN:04020841441776
Brand:Lumberg Automation
Minimum order quantity:5
Product information

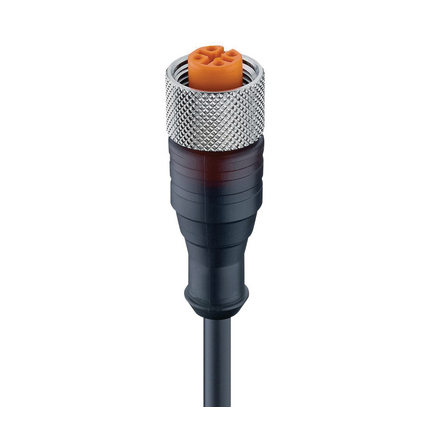

The M12 Standard Sensor/Actuator Single-Ended Cordset is designed with a female, straight, 4-pin, A-coded configuration, ensuring reliable and secure connections for your sensor and actuator applications. The translucent body allows for visual inspection, while the robust construction supports 230 V AC/DC and 4 A currents. The cordset is equipped with a durable PUR black cable encompassing four wires, each with a size of 0.34 mm², providing flexibility and strength. This product is engineered for resilience, showcasing resistance to microbial and hydrolysis, as well as being environmentally friendly by excluding PVC and silicone. It supports an ambient operating temperature range of -40°C to +90°C, making it versatile for various environmental conditions. With an IP65, IP67, IP68, and IP69K rating, it guarantees high protection against dust and water, ensuring long-lasting performance in challenging environments.
Downloads
Datasheet (EN)Specifications
| Ambient Temperature (Drag Chain Inst): | - 25 °C - + 60 °C |
|---|---|
| Ambient Temperature (Fixed Installation): | - 50 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Flex Installation): | - 25 °C - + 90 °C (UL: + 80 °C) |
| Ambient Temperature (Operation)*: | - 40 °C - + 90 °C |
| Attachment Material: | CuZn |
| Attachment Plating: | Nickel-plated |
| Attachment Type: | Coupling Nut |
| Cable Characteristics: | Good microbes and hydrolysis resistance; Mainly plasticizer diffusion free; Exclusion of PVC and silicone; Coldness flexibility; Free of lacquer wetting disturbing substances |
| Cable Diameter D: | ø 4.70 ± 0.15 mm |
| Cable Jacket Color: | black matt similarly RAL 9005 |
| Cable Jacket Material: | PUR |
| Cable Length: | 20 m |
| Cable Number: | 225 |
| Coding: | A |
| Conductor Size: | 0.34 mm² |
| Conductor material: | Cu |
| Connector Design: | Straight |
| Connector Type: | Cordset, single ended |
| Contact Base Material (#1): | CuSn |
| Contact Bearer Color: | Orange |
| Contact Bearer Material (#1): | TPU |
| Contact Plating: | Cu/Au |
| Contact Resistance: | ≤ 10 mOhm |
| Cycles (Bending): | ˃ 5 M |
| Cycles (Torsion): | ˃ 5 M @ ± 360 °/1 m |
| Design Standard: | IEC 61076-2-101 |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Flammability Class (Cable Jacket): | DIN EN 60332-2-2, VDE 0482-332-2-2, IEC 60332-2-2, CSA FT-2 |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Flammability Class (Molded Body): | UL 94 HB |
| Halogenfree: | DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1 |
| Insulated Wire Diameter: | ø 1.30 ± 0.10 mm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Insulation Resistance Cable: | min 1000 MOhm x km |
| Item Description: | RKT 4-225/20 M |
| Long Description (#1): | M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 4-pin, A-coded, translucent body, 230 V AC/DC, 4 A; PUR black cable, 4-wires, 0.34 mm² |
| Mating Cycles: | ≤ 100 |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Molded Body Color: | Translucent |
| Molded Body Material: | TPU |
| Note: | Do not connect or disconnect under load. |
| Note Derating: | Notice derating |
| Number of Pins: | 4 |
| Number of Wires: | 4 |
| O-Ring Material: | FKM, green |
| Operating Temperature (UL): | max. + 50 °C |
| Operating Voltage: | 230 V AC/DC |
| Overvoltage Category: | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Part Number (#1): | 44106 |
| Pin Color 01@Side 1: | brown |
| Pin Color 02@Side 1: | white |
| Pin Color 03@Side 1: | blue |
| Pin Color 04@Side 1: | black |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Product Family: | Sensor / Actuator Connectors |
| Product Sub Family: | M12 Standard |
| Product Type: | Assemblies & Patch cords |
| Protection Degree / IP Rating**: | IP65, IP67, IP68 (1 m / 24 h), IP69K |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Rated Current (UL)*: | 4 A |
| Rated Current*: | 4 A |
| Rated Impulse Voltage: | 2.5 kV |
| Rated Voltage: | 250 V |
| Rated Voltage (UL): | 250 V AC |
| RoHS Compliant: | yes |
| Shielding: | Unshielded |
| Type of Contact / Gender: | Female |
| UL: | UL 2238; cURus |
| UL-File: | E315587 |
| UL Cable Type: | AWM: 20549 |
| Wire Insulation Material: | PP |
| uniek_nr: | aut44106 |
