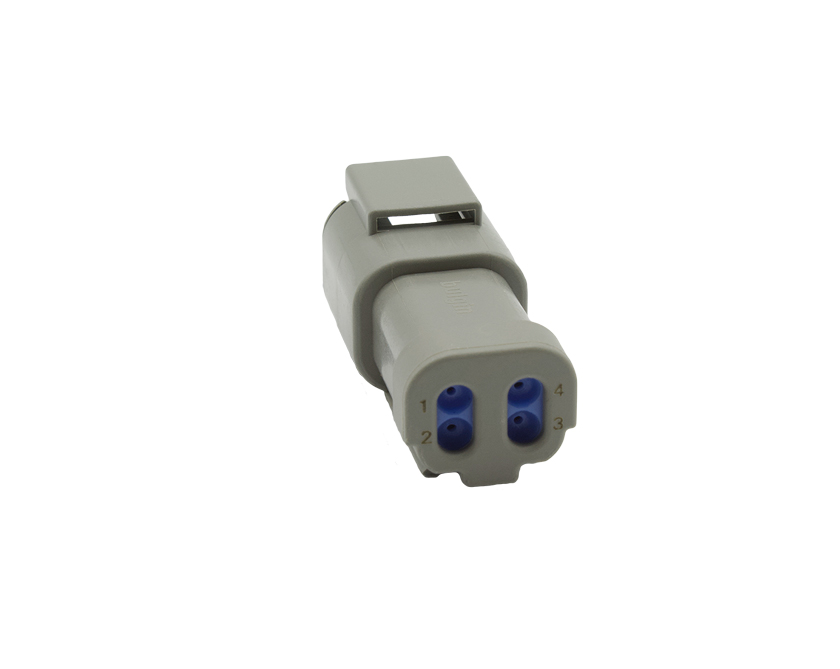

4 Contacts Female Miniature Rectangular Grey Connector - PEC
On Request
Vraag product aanPrices excl. VAT plus shipping costs
Article number:PX0013P04GY
Manufacturer number:PX0013P04GY
Brand:Bulgin
Minimum order quantity:1
Product information
4 Contacts Female Miniature Rectangular Grey Connector - PEC
Downloads
Datasheet (EN)Specifications
| body_colour: | Grey |
|---|---|
| body_material: | Polycarbonate/Polybutylene Terephthalate (PC/PBT) |
| body_material_type: | Plastic Body |
| contact_type: | Plug Contact |
| coupling_type: | Snap-in |
| current_max: | 7.5A |
| dielectric_withstanding_voltage: | 1500V |
| durability: | >100 Cycles |
| function: | Straight Female Connector |
| insulation_resistance: | >1000MOhms |
| ip_rating: | IP68 |
| max_operating_temperature: | +125°C |
| min_operating_temperature: | -55°C |
| number_of_contacts: | 4 Contacts |
| rohs_compliant: | |
| uniek_nr: | blgPX0013P04GY |
| voltage_max: | 250V |
