Lumberg Automation
Reliable Connectivity Solutions for Industrial Automation
Lumberg Automation, a Belden brand, provides high-quality connectivity solutions for industrial automation. The product range includes robust M8 and M12 connectors, pre-assembled cable sets, fieldbus components, and I/O systems. These solutions are widely used in industries such as machine building, production automation, automotive, and energy.
Engineered for Performance, Reliability, and Flexibility
In today’s automation environments, signal integrity, system uptime, and installation speed are key. Lumberg Automation's connectors and cables are built to operate reliably under harsh conditions such as moisture, vibration, temperature fluctuations, and electromagnetic interference. Thanks to their modular design and broad compatibility, these products integrate seamlessly into a wide range of industrial systems.
Smart Solutions for Sensors, Actuators, and Field Cabling
From signal transmission to field power supply, Lumberg Automation offers both standardized and customized solutions for virtually any automation challenge. Key product categories include:
- M8 and M12 connectors with screw or push-pull locking mechanisms
- Sensor-actuator cabling with IP67/IP68 protection ratings
- Passive distribution boxes and active I/O modules for decentralized installations
- Power connectors for demanding industrial applications
- Fieldbus components, compatible with systems such as PROFIBUS, CANopen, and EtherNet/IP
These components help reduce installation time, minimize downtime, and increase production efficiency.
Why Choose Lumberg Automation Connectivity Solutions?
- Industrial-grade quality: rugged components with high protection ratings
- Fast and safe installation: plug-and-play connectivity reduces error potential
- Versatile applications: ideal for automation, robotics, automotive, and more
- Optimized signal integrity: even under challenging environmental conditions
.svg)
12171 Products

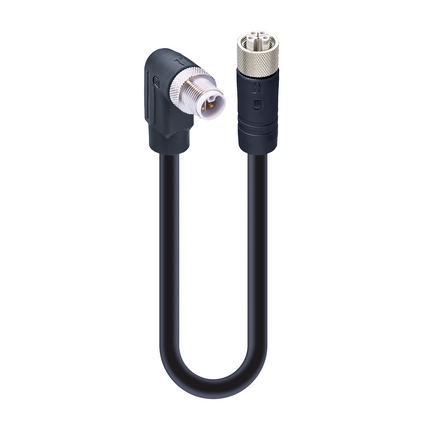

RSWT 4L-RKT 4L-993/5M SW
M12 Power Double-Ended Cordset
The M12 Power Double-Ended Cordset is designed for robust and reliable electrical connections in industrial environments. It features a male angled to female straight connector configuration with 4 pins, L-coded, and a durable black body. Rated for 50 V AC/60 V DC and 16 A, this cordset ensures efficient power transmission. The PVC black cable, with a conductor size of 1.50 mm², offers excellent flexibility and resistance to various environmental factors. With an IP65, IP67, and IP69K rating, it provides superior protection against dust and water, ensuring longevity in harsh conditions. The cordset is crafted from high-quality materials such as CuNi, PBT GF, and TPE, meeting essential design standards like IEC 61076-2-111.
On Request
RSWT 4L-RKWT 4L-723/10M SW
M12 Power Double-Ended Cordset
The M12 Power Double-Ended Cordset features a robust design with male angled and female angled 4-pin connectors. L-coded for alignment accuracy, this cordset supports up to 50 V AC/60 V DC and can handle 16 A of current, meeting stringent industry standards for safety and efficiency. The black body and durable PUR cable with a 1.50 mm² conductor size ensure reliable performance in various environments. Rated for IP65, IP67, and IP69K protection, it provides excellent resistance against dust, water, and other harsh elements, making it suitable for both fixed and flexible installations with varying temperature ranges.
On Request
RST 5L-RKT 5L-1002/0,6 M SW
M12 Power Double-Ended Cordset
The M12 Power Double-Ended Cordset: Male straight to Female straight, 5-pin(4+FE), L-coded, black body, 50 V AC/60 V DC, 16 A; TPE yellow cable, 1.50 mm² is a high-performance interconnect solution for demanding environments. This cordset is specifically designed for power applications, ensuring secure and stable connections with its high-quality Cu/Au plating and robust TPE material. The cordset is unshielded, with a black body and yellow cable for easy identification and routing. It supports 63 V rated voltage and 16 A rated current, providing reliable power transmission in industrial applications.
The M12 Power Double-Ended Cordset offers multiple benefits, such as high durability with a TPE construction, exceptional contact resistance of ≤ 10 mOhm, and insulation resistance of ˃ 10^9 Ohm. The cordset ensures a minimum of 100 mating cycles, making it a cost-effective solution for repeated connection requirements. Its IP65, IP67, and IP69K protection degrees ensure optimal performance even in harsh, dusty, and wet conditions. Additionally, its compliance with international standards like IEC 61076-2-111 and UL certifications enhance its reliability and safety.
This cordset is ideal for use in various industrial applications, including automation systems, machine building, and power distribution networks. Its robust design ensures reliable performance in fixed installations and flexible setups with minimal bend radius specifications. Variants are available in various lengths to suit specific application needs. Before usage, the O-ring's position should be verified to maintain the ingress protection rating.
On Request
RST 5L-RKT 5L-1002/1 M SW
M12 Power Double-Ended Cordset
The M12 Power Double-Ended Cordset is designed for secure and reliable power transmission. It features a male straight to female straight configuration with 5 pins (4+FE), L-coded, making it ideal for high-power applications. The connectors are housed in a black body and support a voltage range of up to 50 V AC/60 V DC with a maximum current of 16 A. This cordset is constructed with a TPE yellow cable, with each conductor measuring 1.50 mm², ensuring durability and flexibility in various industrial environments.
One of the key benefits of this cordset is its robust design which includes a high IP rating of IP65, IP67, and IP69K, offering excellent protection against dust and water ingress. The connectors feature CuNi contact base material with Cu/Au plating, ensuring low contact resistance and high insulation resistance. The cable material (TPE) is resistant to oils and moderate environmental hazards, making it suitable for demanding applications.
This cordset is perfect for use in manufacturing, automation, and power distribution systems which require reliable and efficient power connections. Whether in fixed or flexible installation layouts, the M12 Power Double-Ended Cordset provides versatile connectivity ensuring high operational reliability and safety.
On Request
RST 5L-RKT 5L-1002/2 M SW
M12 Power Double-Ended Cordset
M12 Power Double-Ended Cordset: This robust cordset comes with a male straight to female straight configuration and features a 5-pin (4+FE), L-coded design. The connectors are enclosed in a durable black body with a working voltage of 50 V AC/60 V DC and a current rating of up to 16 A. The TPE yellow cable measures 1.50 mm² in conductor size, ensuring efficient power delivery even in demanding environments. The cordset is designed according to IEC 61076-2-111 and achieves protection levels of IP65, IP67, and IP69K, making it suitable for various industrial applications. Withstanding temperatures from -40°C to +125°C, it ensures reliability under extreme conditions. Additionally, the cordset is made from high-quality materials including CuNi and CuZn for connectors and comes with an FKM O-ring to secure the attachment. Available in various lengths from 0.3m to 20m, this cordset offers flexibility and efficient power transmission.
On Request
RST 5L-RKT 5L-1002/5 M SW
M12 Power Double-Ended Cordset
The M12 Power Double-Ended Cordset is designed for reliable power transmission. It features a male straight to female straight connector configuration with 5 pins (4+FE) in an L-coded black body. This cordset supports voltage ratings of 50 V AC/60 V DC and can handle a current of up to 16 A. The cord itself is coated in a durable TPE yellow jacket and has a conductor size of 1.50 mm², ensuring optimal performance under various conditions. The connectors are IP65, IP67, and IP69K rated, offering exceptional protection against dust and water ingress, making it suitable for industrial environments. With a flammability class of UL 94 HB and temperature resilience from -40 °C to +125 °C, this cordset is built for high durability and long-lasting use.
On Request
RST 5L-RKWT 5L-1002/1 M SW
M12 Power Double-Ended Cordset
The M12 Power Double-Ended Cordset is designed for robust power transmission applications. Featuring a Male straight to Female angled design with 5 pins (4+FE), this connector is L-coded and has a black body. Rated for 50 V AC/60 V DC and 16 A, it ensures reliable performance. The connector comes with a yellow TPE cable, 1.50 mm² in size, offering excellent flexibility and durability.
Benefits of this product include high current and voltage ratings, a rugged design suitable for harsh environments, and a dependable connection for industrial automation systems. The IP65, IP67, and IP69K protection ratings ensure resistance to dust and water ingress, making it suitable for outdoor and challenging settings.
Applications range from machinery and industrial automation to power distribution in demanding environments. The connector is suitable for fixed and flexible installations with a wide temperature range from -40 °C to +125 °C under operational conditions. Ensure the O-ring is correctly positioned before connection to maintain ingress protection.
On Request
RST 5L-RKWT 5L-1002/2 M SW
M12 Power Double-Ended Cordset
The M12 Power Double-Ended Cordset is a versatile power connector designed for industrial applications. It features a male straight connector on one end and a female angled connector on the other, both of which are 5-pin (4+FE) and L-coded. The connectors have a rugged black body and are rated for 50 V AC/60 V DC with a current capacity of 16 A. The cordset is equipped with a durable TPE yellow cable with a conductor size of 1.50 mm², ensuring reliable performance in demanding environments. The connectors offer high protection levels of IP65, IP67, and IP69K, making them suitable for harsh conditions.
The primary benefits of this cordset include its robust design, high current rating, and excellent insulation resistance. The connectors are designed to be mechanically stable and resistant to environmental factors, with a contact resistance of ≤ 10 mOhm and insulation resistance of > 10^9 Ohm. The insertion and withdrawal cycles are rated at ≤ 100, ensuring longevity and reliability in frequent use scenarios. The cordset complies with relevant IEC standards and is VDE approved, ensuring safety and quality.
This M12 Power Double-Ended Cordset is ideal for applications in industrial automation, machinery, and manufacturing where reliable power connections are essential. Its oil-resistant and flammability-rated TPE cable ensures longevity and safety in various installations, from fixed to flexible setups. The product is also RoHS compliant, making it environmentally friendly. Available in various lengths, it provides flexibility for different installation needs.
On Request
RST 5L-RKWT 5L-1002/3 M SW
M12 Power Double-Ended Cordset
The M12 Power Double-Ended Cordset is an essential connectivity solution designed with a male straight to female angled configuration. This 5-pin (4+FE) cordset is L-coded and features a robust black body with a TPE yellow cable, providing reliable operation at 50 V AC/60 V DC and supporting a current rating of 16 A. The cordset is constructed with high-quality materials such as CuNi for the contact base, PBT GF for the contact bearer, and TPE for the molded body, ensuring durability and performance. With an operational temperature range of -40 °C to +125 °C and an IP65, IP67, and IP69K protection rating, this cordset is suitable for challenging environments. Its design standard is based on IEC 61076-2-111, making it a dependable choice for power applications in industrial automation.
On Request
RST 5L-RKWT 5L-1002/0,5 M SW
M12 Power Double-Ended Cordset
The M12 Power Double-Ended Cordset is designed for reliable power connections in various environments. This cordset features a male straight to female angled configuration, 5-pin (4+FE) L-coded connections, and a robust black body. It supports rated voltages of 50 V AC and 60 V DC and a rated current of 16 A. The cordset is equipped with a durable TPE yellow cable measuring 1.50 mm², ensuring efficient conductivity and flexibility. The product meets multiple protection standards and has a temperature range suitable for diverse operational conditions.
On Request
RST 5L-RKWT 5L-1002/5 M SW
M12 Power Double-Ended Cordset
The M12 Power Double-Ended Cordset ensures robust and reliable electrical connections for a variety of industrial applications. Featuring a male straight to female angled design with 5-pin (4+FE) L-coded connectors, this cordset is rated for 50 V AC/60 V DC at 16 A. Encased in a durable TPE yellow cable with a conductor size of 1.50 mm², this cordset offers high flexibility and resistance to environmental factors. Its high-quality construction includes a black body made of TPE and connectors with Cu/Au plated contacts, ensuring longevity and performance. Meeting IEC 61076-2-111 standards, this cordset is rated IP65, IP67, and IP69K, making it suitable for harsh environments. The cordset is available in various lengths to meet different installation needs.
On Request
RST 5L-RKWT 5L-1002/6 M SW
M12 Power Double-Ended Cordset
M12 Power Double-Ended Cordset: Male straight to Female angled, 5-pin(4+FE), L-coded, black body, 50 V AC/60 V DC, 16 A; TPE yellow cable, 1.50 mm²
On Request

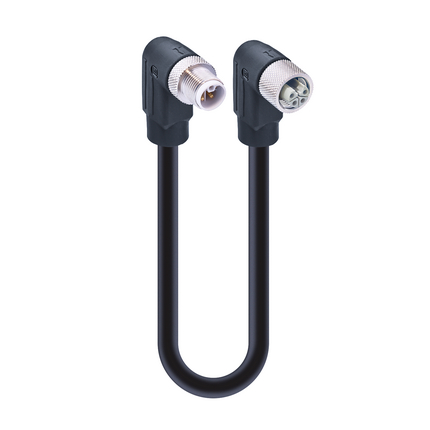

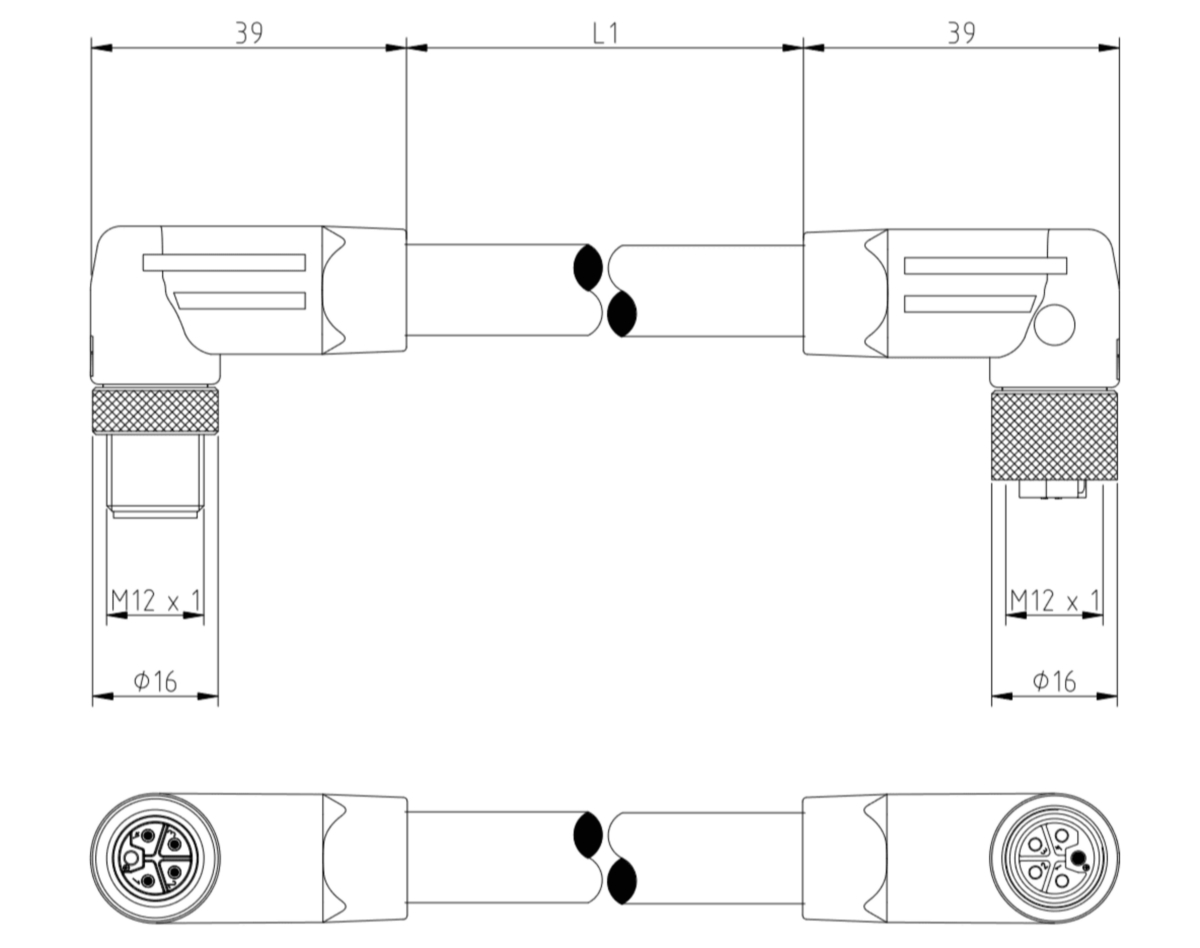

RSWT 5L-RKWT 5L-1002/2 M SW
M12 Power Double-Ended Cordset
M12 Power Double-Ended Cordset: Male angled to Female angled, 5-pin(4+FE), L-coded, black body, 50 V AC/60 V DC, 16 A; TPE yellow cable, 1.50 mm²
On Request

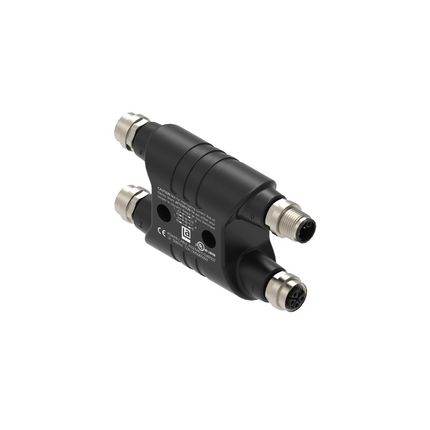

MPS-HU-RST 4S-3RKT 4S
M12 Power H-splitter
The M12 Power H-splitter is a molded power connector designed for efficient power distribution with S-coded male and female connectors. It supports a 630 VAC rated voltage and a 12 A rated current, making it suitable for high-demand industrial applications. The splitter is built with a durable construction, utilizing materials like CuZn for the contacts and PA for the contact bearer. The TPU molded body ensures durability and long-term performance. This connector is designed for robust performance even in environments with operational temperatures ranging from -30°C to +90°C and offers reliable IP65, IP67, and IP68 protection degrees.
The M12 Power H-splitter provides several advantages, including excellent electrical conductivity, high insulation resistance, and multiple mating cycles. Its compatibility with the Hirschmann/Lumberg Automation connector ensures secure and optimal connections in various industrial settings. The design and material choices make it resilient to physical and environmental stress, thereby extending its operational lifespan.
This H-splitter is primarily used in industrial automation, machinery, and power distribution systems where dependable and robust connections are necessary. Its straightforward design facilitates easy installation and maintenance, making it suitable for a diverse range of applications.
On Request
MPS-HU-RST 5K-3RKT 5K
M12 Power H-splitter
The M12 Power H-splitter is a robust and versatile connector designed for industrial automation and control systems. Featuring a male input and three female outputs, each with 4+PE pins and K-coding, this splitter ensures reliable power distribution in various settings. The H-shaped design and molded body, crafted from durable TPU and CuZn materials, offer excellent insulation resistance (≥10^8 Ohm) and can withstand harsh operating conditions with ambient temperatures ranging from -30°C to +90°C. Rated for 630 VAC and 12 A, this splitter also meets IEC 61076-2-111 standards and is RoHS compliant, ensuring high performance and safety. The splitter is IP65, IP67, and IP68 rated, providing superior protection against dust and water ingress.
The M12 Power H-splitter’s benefits include efficient power management in complex systems, reduced installation time with its easy coupling nut attachment, and high durability, making it ideal for demanding environments.
Applications for the M12 Power H-splitter span across various industrial sectors, including factory automation, robotics, and machinery where reliable power distribution and secure connections are critical.
On Request

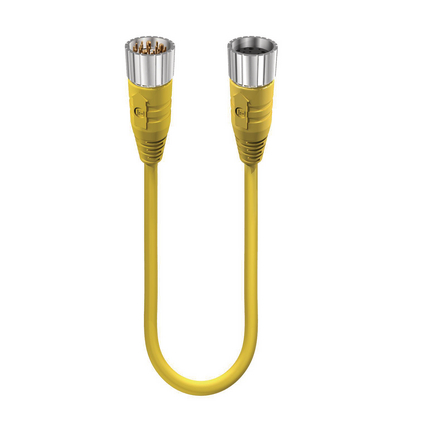

RSU 19-RKU 19-S4740/2 M
M23 Power Double-Ended Cordset
The M23 Power Double-Ended Cordset is designed for robust and efficient power connectivity. This cordset features a male straight to female straight configuration with 19 pins and a vibrant yellow body. It operates at a voltage rating of 120 V AC/DC and supports currents up to 16x8 A and 3x10 A. The TPE yellow cable with dimensions 16x0.5 mm² + 3x1.0 mm² ensures flexibility and durability. Its IP67 rating offers excellent protection against dust and water, making it ideal for use in demanding industrial environments. This cordset is perfect for high-power transmission, flexible installation, and secure connections in various applications, from automation systems to machinery. The connectors are designed to meet high safety and longevity standards, with flammability classes UL 94 V0 and UL 94-HB.
On Request
RSU 19-RKU 19-S4740/20 M
M23 Power Double-Ended Cordset
The M23 Power Double-Ended Cordset is designed for high-performance power connections. It features a male straight to female straight configuration with 19 pins, and its yellow body makes it easily identifiable in complex setups. The cordset operates at 120 V AC/DC and can handle 16x8 A and 3x10 A currents, thanks to its 16x0.5 mm² + 3x1.0 mm² TPE yellow cable construction. This robust design offers excellent insulation resistance of over 10^9 Ohm and is built to withstand up to 100 mating cycles. Additionally, it boasts an IP67 rating, making it suitable for harsh environments and ensuring reliable performance in both fixed and flexible installations within the temperature range of -25°C to +80°C.
On Request
RSU 19-RKU 19-S4740/3 M
M23 Power Double-Ended Cordset
The M23 Power Double-Ended Cordset features a male straight to female straight configuration with a 19-pin connection. This versatile cordset is built with a robust yellow body and is designed to handle 120 V AC/DC, accommodating 16x8 A and 3x10 A power currents. The durable TPE yellow cable includes 16x0.5 mm² and 3x1.0 mm² conductors, making it suitable for various power transmission needs. With an IP67 protection rating, this cordset is ideal for harsh environments. The connectors are designed for up to 100 mating cycles, ensuring longevity and reliability.
On Request
RSU 19-RKU 19-S4740/4 M
M23 Power Double-Ended Cordset
The M23 Power Double-Ended Cordset from Lumberg Automation is a highly durable and efficient solution for your power connectivity needs. This cordset features a male straight to female straight connector with a 19-pin configuration, ensuring a reliable connection for various applications. Its distinctive yellow body and TPE yellow cable are not only visually appealing but also designed to handle demanding industrial environments. The cordset operates on 120 V AC/DC and supports high current loads with 16x8 A and 3x10 A, making it suitable for heavy-duty applications. The conductors are made of high-quality Cu, ensuring excellent conductivity, while the insulation materials like PP and TPU offer optimal protection and longevity. The IP67 protection rating guarantees robust performance even in challenging conditions, and the cordset remains functional across a wide temperature range of -25°C to +80°C. It also features durable materials such as CuZn and nickel-plated attachments, ensuring long-term reliability.
On Request
RSU 19-RKU 19-S4740/8 M
M23 Power Double-Ended Cordset
The M23 Power Double-Ended Cordset is a high-quality cable assembly designed for power delivery in industrial environments. It features a male straight to female straight connector configuration, with 19 pins. The cordset operates at 120 V AC/DC and supports currents of 16 x 8 A and 3 x 10 A. The yellow TPE jacket ensures durability and resistance to environmental factors. With a comprehensive range of pin configurations, this cordset provides versatile application options, making it suitable for a variety of power delivery needs. The cable's robust construction, including a TPU molded body and UL 94-HB flammability class, ensures reliability and safety in challenging conditions.
