The GDM - 175301-803 (DIN 43650) is a versatile gasket designed to meet the demanding requirements of various industrial applications. Form A, with an 18mm diameter, this product is engineered from high-quality steel and features a PA Knurled Head. Its robust composition ensures optimal performance, making it suitable for use with select Form A field attachable females. The product is part of the Valve Connectors family, specifically designed as a Field Attachable Accessory, ensuring compatibility and reliability. Its ambient operating temperature ranges between -55° C to +125° C, demonstrating its resilience under extreme conditions. The attachment type is M 3 x 35, and it features a fastening torque (Contact Screw) of 30 - 40 Ncm. This product is RoHS compliant and halogen-free, making it both safe and environmentally friendly.

The GML Industrial Standard Field Attachable Connector is designed for robust, industrial applications with its Form B, 3-pin (2+1PE) configuration. It adheres to UL 1977 standards, ensuring safety and reliability in demanding environments. The connector features a screw type PG9 cable gland and a translucent housing with a yellow LED indicator, making it easy to monitor connectivity. It supports an operating voltage of 110 V AC/DC and a rated current of 10 A. This connector is suitable for valve applications and comes with central screw attachment for secure connections. The housing is made of PA GF material and offers IP65 protection, making it highly durable against dust and water ingress.

The GSP-U DIN standard receptacle is a high-quality connector designed with precision for optimal electrical connection. Featuring a 4-pin (3+1PE) Form A design, it supports both AC and DC systems at 400 V, ensuring robust and reliable power distribution up to 16 A. Designed for easy installation, this receptacle offers solder contacts for secure attachment and has a central screw for stable mounting. With a protection degree of IP65, it stands resilient against dust and water, particularly when combined with compatible Hirschmann connectors. Its construction from durable materials like CuZn and PA GF ensures longevity and adherence to flammability standards (UL 94 V-0).

VCD DIN Standard Single-Ended Cordset: Form C, 4-pin (2+2PE), translucent body, with supressor diode and yellow LED, 24 V AC/DC, 4 A; PUR black cable, 0.50 mm²

The GDM Standard DIN Standard Field Attachable Connector is expertly engineered for reliable and versatile connectivity. Featuring a Form A, 4-pin (3+1PE; PE across cable outlet) configuration, this connector is housed in a durable black casing. Designed with a screw type attachment and M20 cable gland, it accommodates cables with diameters from 4.5 to 11 mm, ensuring flexibility in various installations. Operating at 230 V AC/DC with a current rating of 16 A, it meets the demands of high-performance applications. This connector offers excellent protection with an IP65 rating, making it suitable for challenging environments.

The GAN31LU-A0U-610 is a high-quality, single-ended cordset designed to comply with DIN standards. Featuring a 4-pin configuration (3+1PE) with PE across the cable outlet, this cordset comes with a grey translucent body, ensuring durability and reliability. The cordset is capable of handling an operating voltage of 230 V AC/DC with a rated current of 10 A. It is constructed with a grey PVC jacketed cable with a cross-section of 0.75 mm², making it suitable for various applications. The design ensures a high level of protection with an IP65 and IP67 rating, making it suitable for use in demanding environments. The absence of internal circuitry and its robust construction make it a versatile choice for valve connectors. Common applications include industrial automation systems where reliable electrical connections are crucial.

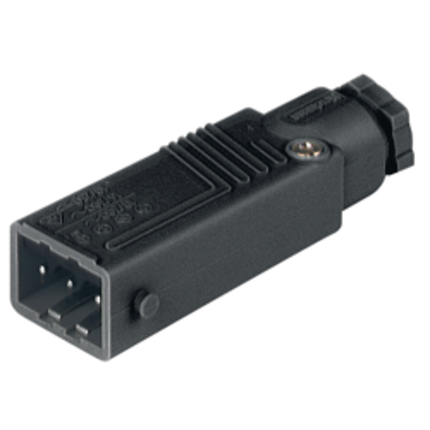

The Rectangular Field Attachable Power Connector (ST Series) is designed to provide efficient and secure electrical connections. This female connector is straight with strain relief and supports a 3-pin + PE configuration. With a robust grey housing, the connector is rated for 400 V AC or 230 V DC, with respective current ratings of 16 A AC and 10 A DC. The connector type is field attachable and it features an unshielded design to ensure practical usage. The screw terminal connection is suitable for conductor cross-sections ranging from 0.25 mm² to 1.50 mm², and is compatible with cables sized Ø6 mm to Ø10 mm. This connector is compliant with multiple standards including DIN EN 61984 and offers a protection degree of IP54 when correctly mounted and locked with compatible connectors.

The GAN31LU-A0U-744 is a GAN DIN Standard Single-Ended Cordset featuring a Form A, 4-pin (3+1PE; PE across cable outlet) configuration. The connector has a grey translucent body and functions without circuitry. It is suitable for operations at 230 V AC/DC and can handle a current of up to 6 A. The cordset includes a PUR black cable with a conductor size of 0.50 mm². Designed with a female connector and angled configuration, it offers simplified attachment with a central screw and ensures reliable signal transmission. The product adheres to safety standards with a pollution degree of 3 and an overvoltage category of III, making it suitable for various applications in automation and electrical systems.

NR Circular Connector, M26 x 1.5 thread, Field Attachable, Female, Angled, 6+PE pins, Grey housing, 250 V, 10 A, PG 11 w/ strain releif and clamping cage

The GDM Standard DIN Standard Field Attachable Connector is a high-quality component designed for reliable and efficient connectivity. Featuring a Form A, 4-pin (3+1PE; PE across cable outlet) configuration, this connector comes with a transparent housing that allows easy visibility of the internal setup. The screw type attachment ensures secure and stable connections, making it ideal for various industrial applications. The incorporation of red-green LEDs for pressure switch indicators provides a clear and immediate visual status, enhancing operational efficiency. This connector supports 230 V AC/DC and can handle a maximum current of 10 A, making it suitable for high voltage and current operations. The M16 cable gland facilitates the connection of suitable cables ranging from 4.5 to 10 mm in diameter. Its durable construction with a protection degree of IP65 ensures robust performance even in demanding environments. Benefits of this product include its field attachable design which allows easy installation and replacement, minimizing downtime. The dual color LED indicators help in quick diagnostics, reducing inspection time. The robust build quality ensures longevity and reliable performance since it adheres to both UL 94 HB flammability standards and is RoHS compliant. Applications of this connector are diverse, covering a wide range of industrial fields including automation, machinery, and systems requiring reliable and secure electrical connections. It is particularly suitable for systems where quick and clear visual indications of pressure status are necessary.

The M12 Insert Sensor/Actuator Receptacle Connector, designed for robust performance, is a male M12 connector with a convenient insert and O-ring. It utilizes solder contacts suitable for a 4-pin configuration. Engineered with A-coding and an unshielded design, this connector offers a reliable connection up to 150 V AC/DC and supports currents of 4 A. The durable grey body ensures suitability for industrial environments, adhering to IP65 and IP67 ratings when properly mounted and used. Its construction accommodates a wide range of operating temperatures from -25°C to 90°C and is built in compliance with IEC 61076-2-101 standards, making it reliable for various sensor and actuator applications.

The GDM Standard DIN Standard Field Attachable Connector, identified as GDM21FA-V2Y-10D, is designed according to Form A standards and features a 3-pin configuration (2+1PE; PE across cable outlet). Its transparent housing provides visual accessibility, and the screw-type M20 connection ensures secure attachment. This connector includes a varistor and a yellow LED indicator for easy status monitoring, operating at 230 V AC/DC and supporting a current of up to 10 A. It is built with durable PA GF material, is VDE and SEV approved, and complies with the DIN EN 175301-803-A and ISO 4400 design standards. The connector is suitable for cables ranging from Ø 4.5 - 11 mm and operates within a temperature range of -25°C to +80°C, with an IP65 protection rating ensuring resistance to dust and water ingress when properly mounted. Ideal for various industrial applications, this connector combines robustness and reliability with easy field attachment.

The GDM Standard DIN Standard Field Attachable Connector is engineered for robust and reliable connections. This Form A, 3-pin connector is equipped with a female contact design, featuring a protective black housing made from durable PA GF material. Its screw-type connector ensures secure and stable attachment. Rated for an impressive 230 V AC/DC operation and 16 A current, it is ideal for demanding environments, providing excellent performance and versatility. One of the key benefits of this connector is its high protection degree, IP65, making it resistant to water and dust, crucial for maintaining signal integrity in harsh conditions. It supports a wide operating temperature range from -40 °C to +125 °C, ensuring it performs consistently in extreme conditions. The design follows DIN EN 175301-803-A standards, ensuring compatibility and safety. This connector is suitable for various applications in the industrial sector, particularly where reliable electrical connections are needed. The field attachable nature allows for easy on-site installation and maintenance. Its compatibility with a conductor cross-section of 0.25 - 1.5 mm² and cable sizes Ø 8 - 13 mm further enhances its adaptability to different project requirements.

The VB 1D-3-1-226 is an industrial standard single-ended cordset, designed to meet rigorous industry requirements. This cordset features a Form B, 3-pin configuration (2+1PE; PE at cable outlet) with a sleek black body and no internal circuitry, ensuring reliability under various conditions. The cordset operates efficiently at 230 V AC/DC and supports up to 4 A, making it suitable for numerous applications. Its PUR black cable with a conductor size of 0.50 mm² ensures durability and flexibility, even in harsh environments. This product offers several benefits, including a high degree of protection (IP65) when mounted and locked in combination with specific connectors. It boasts good chemical and oil resistance, making it reliable for use in demanding industrial settings. The VB 1D-3-1-226 is also RoHS compliant, ensuring it meets high environmental and safety standards. The lack of circuitry reduces the risk of failure, further enhancing its reliability. Applications for the VB 1D-3-1-226 are diverse, ranging from connecting industrial machinery to integration in automated systems where durable and robust connections are necessary. Its high insulation resistance and excellent flammability ratings make it suitable for environments requiring stringent safety standards. With various cable lengths available, it provides versatility to accommodate different installation needs.

The GDM Standard DIN Standard Field Attachable Connector is an advanced and highly reliable solution for demanding electrical applications. Featuring a 3-pin female configuration (2+1PE) with a PE across the cable outlet, this component boasts a transparent housing allowing for quick visual inspections. The screw-type design with an M20 connection ensures robust attachment and easy installation. Notably, it is embedded with a recovery diode and a yellow LED indicator, operating at 48 V DC and 10 A. This makes it a durable choice for various electrical environments. The connector is designed to meet DIN EN 175301-803-A, ISO 4400 standards, providing superior performance with a protection degree of IP65 when correctly mounted. Ideal for use in valve connections, this device supports cables of Ø 4.5 - 11 mm and operates efficiently between -25°C and +80°C, making it suitable for industrial settings. The GDM connector is made with materials ensuring excellent contact integrity and housing resilience, complemented by certifications like VDE and SEV for quality assurance.
