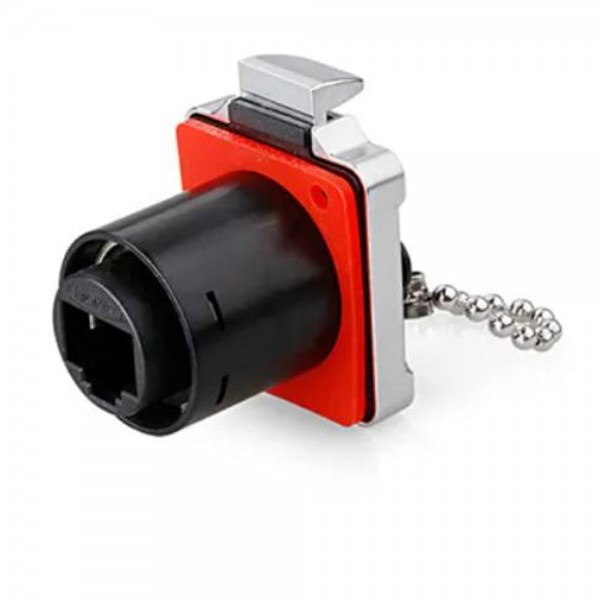

BD-24 RJ45 Snap lock chassis connector female metal housing IP65/67/68

The BD-24 Series is engineered with professionals in mind who need a rugged, reliable, and easy-to-install connector solution for industrial environments. These circular connectors, rated up to IP67/68, provide excellent protection against dust, moisture, and mechanical stress. They are suitable for both signal and power transmission.

Typical applications: industrial automation, outdoor LED lighting, transportation, energy storage, robotics, and machinery.

Key technical specifications:
-Pin configurations: 2 to 24 pins or data (power and signal combinations)
-Rated current: up to 25A
-Rated voltage: up to 500V AC/DC
-IP rating: IP67/68 (completely dust-tight and protected against temporary immersion)
-Contact material: gold-plated copper alloy (low contact resistance, corrosion-resistant)
-Housing: industrial-grade zinc alloy (impact-resistant, thermally stable, oxidation-resistant)
-Mounting: panel or cable mounting with snap-lock mechanism for quick, vibration-proof mating
-Operating temperature: -40°C to +80°C
-Durability: >500 mating cycles

Why engineers choose the BD-24:
-Rugged design suitable for outdoor use and harsh industrial conditions
-Fast installation without the need for special tools
-Flexible pin layouts – supports mixed signal and power configurations
-Stable electrical performance under high load
