CA 3 GD
Discontinued
Request an alternative productPrices excl. VAT plus shipping costs
Article number:
CA 3 GD rot/red
Manufacturer number:
932321101
Brand:
Hirschmann
Minimum order quantity:
100
Product information

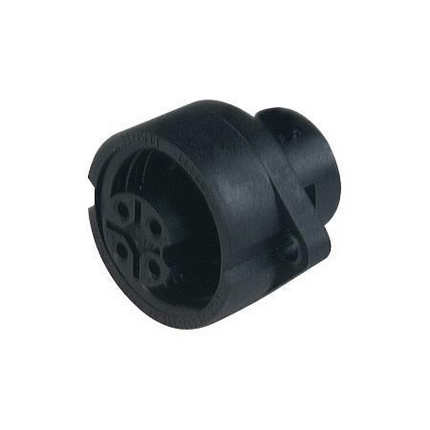

Circular Receptacle Power Connector (CA Series): Female, front mount with flange, 4-pin(3+PE), 400 V AC/230 V DC, 16 A AC/10 A DC
Downloads
Datasheet (EN)Specifications
| Unique No.: | hir932321101 |
|---|---|
| Note: | Do not connect or disconnect under load. |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note Derating: | * Notice derating |
| Number of Pins: | 4(3+PE) |
| Operating Voltage: | 230 V DC, 400V AC |
| Part Number (#1): | 932321101 |
| Product Family: | Power Connector |
| Product Sub Family: | CA-Series |
| Protection Degree / IP Rating (IEC 60529): | IP65; IP67 |
| Type of Connection: | screw terminal |
| Type of Contact / Gender: | female |
| UL File: | E95522, Series CA 3 |
| UL File No., Material Contact Bearer: | E116324 |
| VDE Certification: | VDE-Reg.-Nr. 2745 |
| Temperature Range (Gasket): | -40°C to +90°C |
| Protection Degree / IP Rating Note: | * only if mounted and locked in combination with Hirschmann / Lumberg connector. |
| Protection Degree / IP Rating**: | IP65; IP67 |
| Rated Current*: | 10 A DC, 16 A AC (1.5 mm²) |
| Rated Impulse Voltage: | 6.0 kV |
| Rated Voltage: | 250 V DC, 400V AC |
| Shielding: | Unshielded |
| Mounting: | M3 (2x), not part of delivery |
| Accessories to Order Separately: | 831-531-100: CA 00 SD 4, cap |
| Clearance / Creepage Distance: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Conductor Cross Section: | 0.5 mm² to 2.5 mm² |
| Connector Design: | Front mount with Flange |
| Connector Type: | Receptacle |
| Contact Base Material (#1): | CuZn |
| Contact Bearer Color: | black / red |
| Contact Bearer Material (#1): | PA 66 GF |
| Contact Plating: | Cu/Ag |
| Contact Resistance: | ≤ 10 mOhm |
| Ambient Temperature (Operation)*: | -40°C to +90°C, notice derating |
| Attachment Type: | Locking Nut |
| Customer Specific Product: | |
| Item Description: | CA 3 GD rot/red |
| Long Description (#1): | Circular Receptacle Power Connector (CA Series): Female, front mount with flange, 4-pin(3+PE), 400 V AC/230 V DC, 16 A AC/10 A DC |
| Mating Connectors / Fitting to: | 934-124-100 CA 3 LS, straight 934-128-100 CA 3 W LS, angled |
| Design Standard: | DIN EN 61984 (VDE 0627) |
| Fastening Torque (Attachment): | M 3: (50-60) Ncm, not part of delivery |
| Fastening Torque (Contact Screw): | M3: (25-30) Ncm |
| Flammability Class (Contact Bearer): | UL 94 V-0 |
| Gasket Material: | NBR |
