CA 3 W LD
€14.16*
Prices excl. VAT plus shipping costs
Article number:
CA 3 W LD
Manufacturer number:
934129100
EAN:
04002044182120
Brand:
Hirschmann
Minimum order quantity:
100
Product information

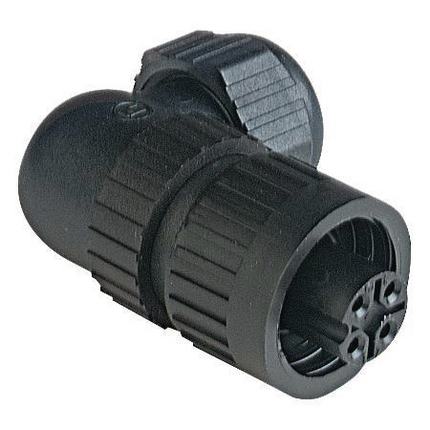

The CA 3 W LD is a circular, field attachable power connector from the CA Series, featuring a female, angled design with 4 pins (3+PE). It includes an integrated strain relief for robust and reliable connectivity. Operating at a rated voltage of 400 V AC/230 V DC and supporting a rated current of 16 A AC/10 A DC, this connector ensures efficient power distribution in various applications. Constructed with high-quality materials like CuZn for the contact base, and PA 66 GF for the contact bearer and attachment, it promises longevity and durability. The connector is also designed to handle ambient temperatures ranging from -40°C to +90°C and adheres to protection degrees IP66 and IP67, making it suitable for challenging environments. It includes a secure clamping cage for strain relief and supports cables with diameters ranging from 6 mm to 12 mm.
Downloads
Datasheet (EN)Specifications
| Long Description (#1): | Circular Field Attachable Power Connector (CA Series): Female, angled, 4-pin(3+PE), integrated strain relief, 400 V AC/230 V DC, 16 A AC/10 A DC |
|---|---|
| Part Number (#1): | 934129100 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Product Family: | Power Connector |
| Product Sub Family: | CA-Series |
| Protection Degree / IP Rating (IEC 60529): | IP66, IP67 |
| Protection Degree / IP Rating Note: | * only if mounted and locked in combination with Hirschmann / Lumberg connector. |
| Operating Voltage: | 230 V DC, 400V AC |
| Mating Connectors / Fitting to: | 934-124-100 CA 3 LS (field attachable, straight), 934-128-100 CA 3 W LS (field attachable, angled), 932-322-100 CA 3 GS (receptacle, straight) |
| Note: | Do not connect or disconnect under load. |
| Note Derating: | * Notice derating |
| Number of Pins: | 4(3+PE) |
| Protection Degree / IP Rating**: | IP66, IP67 |
| Rated Current*: | 10 A DC, 16 A AC (1.5 mm²) |
| Type of Connection: | screw terminal |
| Type of Contact / Gender: | female |
| UL File: | E95522, Series CA 3 |
| UL File No., Material Cable Gland: | E41871 |
| UL File No., Material Contact Bearer: | E116324 |
| UL File No., Material Housing: | E41871 |
| VDE Certification: | VDE-Reg.-Nr. 2745 |
| Temperature Range (Gasket): | -40°C to +90°C |
| Suitable Cables: | Ø6 mm to Ø12 mm, Gasket Ø9 mm for cables with Ø6 - 9 mm, Gasket Ø12 mm for cables with Ø9 - 12 mm |
| Rated Impulse Voltage: | 6.0 kV |
| Rated Voltage: | 250 V DC, 400V AC |
| Shielding: | Unshielded |
| Strain Relief: | clamping cage |
| Item Description: | CA 3 W LD |
| Accessories to Order Separately: | CA00 SD 3: 831-532-400, cap |
| Clearance / Creepage Distance: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Conductor Cross Section: | 0.5 mm² to 2.5 mm² |
| Connector Design: | angled |
| Connector Type: | Field attachable |
| Contact Base Material (#1): | CuZn |
| Ambient Temperature (Operation)*: | -40°C to +90°C, notice derating |
| Attachment Material: | PA 66 GF |
| Attachment Type: | Coupling Nut |
| Cable Gland: | TR22 |
| Cable Gland Material: | PA 66 |
| Contact Bearer Color: | black |
| Contact Bearer Material (#1): | PA 66 GF |
| Contact Plating: | Cu/Ag |
| Flammability Class (Contact Bearer): | UL 94 V-0 |
| Flammability Class (Housing): | UL 94 V-0 |
| Gasket Material: | NBR |
| Housing Color: | black |
| Housing Material: | PA 66 |
| Flammability Class (Cable Gland): | UL 94 V-0 |
| Flammability Class (Attachment): | UL 94 V-0 |
| Contact Resistance: | ≤ 10 mOhm |
| Customer Specific Product: | |
| Design Standard: | DIN EN 61984 (VDE 0627) |
| Fastening Torque (Cable Gland): | TR22: min. 250 Ncm |
| Fastening Torque (Contact Screw): | M3: (25-30) Ncm |
| Unique No.: | hir934129100 |
