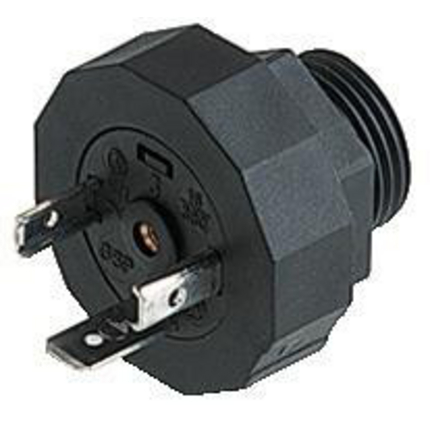

DIN Valve Connector, Form A, Receptacle, 2+Ground
€3.31*
Prices excl. VAT plus shipping costs
Article number:
GSP 213-S
Manufacturer number:
931298003
Brand:
Hirschmann
Minimum order quantity:
200
Product information
The DIN Valve Connector, Form A, is a robust and reliable component designed for industrial applications. Featuring a circular design with a central screw attachment, this connector provides a secure interface with solder contacts. It is capable of handling 400 V AC/DC and a current rating of 16 A. The connector has a durable black housing made of PA GF material with a flammability class of UL 94 HB. It supports two pins plus ground (2+PE), making it suitable for various electrical setups.
This connector is specifically beneficial in scenarios where a firm and lasting electrical connection is crucial, such as in automation or heavy industrial environments. It is designed to be unshielded and provides an IP65 protection rating when properly mounted. The connector ensures exceptional insulation resistance and low contact resistance, which enhances performance and safety.
Ideal for use where reliability in high-temperature environments is required, the DIN Valve Connector can operate between -40 °C and +125 °C. Its treaded sleeve and solder connection make it versatile for various applications, meeting the design standards of DIN EN 175301-803-A and ISO 4400.
This connector is specifically beneficial in scenarios where a firm and lasting electrical connection is crucial, such as in automation or heavy industrial environments. It is designed to be unshielded and provides an IP65 protection rating when properly mounted. The connector ensures exceptional insulation resistance and low contact resistance, which enhances performance and safety.
Ideal for use where reliability in high-temperature environments is required, the DIN Valve Connector can operate between -40 °C and +125 °C. Its treaded sleeve and solder connection make it versatile for various applications, meeting the design standards of DIN EN 175301-803-A and ISO 4400.
Downloads
Datasheet (EN)Specifications
| VDE Certification: | yes |
|---|---|
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Product Sub Family: | GSP |
| Product Family: | Valve Connectors |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Part Number (#1): | 931298003 |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Operating Voltage: | 400 V AC/DC |
| O-Ring Material: | NBR |
| Number of Pins: | 2+PE |
| Note Derating: | Notice derating |
| Protection Degree / IP Rating**: | IP65 |
| Type of Contact / Gender: | Male |
| Type of Connection: | Solder |
| Shielding: | Unshielded |
| SEV Certification: | yes |
| RoHS Compliant: | yes |
| Rated Impulse Voltage: | 4.0 kV |
| Rated Current*: | 16 A |
| Note: | Do not connect or disconnect under load. |
| Contact Bearer Color: | black |
| Contact Base Material (#1): | CuZn |
| Connector Type: | Receptacle |
| Connector Sub Type: | Circular receptacle with connection thread and solder contacts |
| Connector Design: | Straight |
| Conductor Cross Section: | 0.08 - 1.5 mm² |
| Coding: | A |
| Clearance / Creepage Distance: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Cable Gland: | PG 13.5 |
| Attachment Type: | Central Screw |
| Contact Bearer Material (#1): | PA GF |
| Contact Plating: | Cu/Sn |
| Contact Resistance: | ≤ 10 mOhm |
| Mating Cycles: | ≤ 50 |
| Long Description (#1): | GSP - 175301-803 (DIN 43650), Form A, Male, 18mm, Black housing, 2+Ground (Protective Earth). solder contacts, 400 V AC/DC, 16A, PG 13.5 Treaded Sleeve |
| Item Description: | GSP 213-S |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Housing Material: | PA GF |
| Housing Color: | black |
| Flammability Class (Housing): | UL 94 HB |
| Flammability Class (Contact Bearer): | UL 94 V-0 |
| Design Standard: | DIN EN 175301-803-A, ISO 4400 |
| Ambient Temperature (Operation)*: | -40 °C - +125 °C |
| Unique No.: | hir931298003 |
