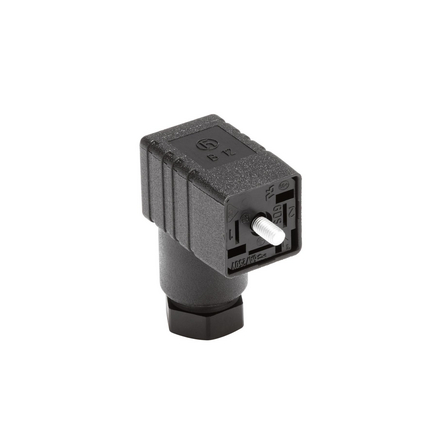

GM Industrial Standard Field Attachable Connector
€2.10*
Prices excl. VAT plus shipping costs
Article number:
GDS 307 black
Manufacturer number:
933024100
Brand:
Hirschmann
Minimum order quantity:
200
Product information
The GM Industrial Standard Field Attachable Connector is an essential component for complex electrical systems, providing a reliable connection solution for industrial applications. This Form C, 4-pin (3+1PE) connector is certified under UL 1977 standards, ensuring compliance and safety. The connector features a durable black housing, which is screw type and PG7 compatible, making it easy to install without requiring additional circuitry. Operating at 230 V AC/DC, it supports a current rating of 6A, offering robust performance for demanding environments. Constructed with high-quality materials such as CuZn for contact base, PA GF for the housing, and NBR gasket, the GM Industrial Standard Field Attachable Connector assures longevity and stability. Perfectly suited for field attachable applications, it supports a wide range of cables with diameters between 4.5 to 6 mm. The connector includes a central screw attachment method, providing secure and stable connections, essential for maintaining operational efficiency. It's designed for industrial settings where reliability and safety are paramount.
Downloads
Datasheet (EN)Specifications
| VDE Certification: | yes |
|---|---|
| Protection Degree / IP Rating**: | IP65 |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Protection Circuitry: | No Circuitry |
| Product Sub Family: | GDS Industrial Standard |
| Product Family: | Valve Connectors |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Part Number (#1): | 933024100 |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Operating Voltage: | 230 V AC/DC |
| Operating Temperature (UL): | max. + 65 °C |
| Operating Temperature (CSA): | max. + 65 °C |
| Number of Pins: | 3+PE (PE across cable outlet) |
| Note Derating: | Notice derating |
| Rated Current (CSA)*: | 6 A |
| Rated Current (UL)*: | 6 A |
| UL File: | E95522 |
| UL Certification: | UL 1977; UR |
| Type of Contact / Gender: | Female |
| Type of Connection: | Screw |
| Suitable Cables: | Ø 4.5 - 6 mm |
| Shielding: | Unshielded |
| SEV Certification: | yes |
| RoHS Compliant: | yes |
| Rated Voltage (UL): | 250 V |
| Rated Voltage (CSA): | 300 V |
| Rated Voltage: | 250 V AC/DC |
| Rated Impulse Voltage: | 4.0 kV |
| Rated Current*: | 6 A |
| Note: | Do not connect or disconnect under load. |
| Mating Cycles: | ≤ 50 |
| Long Description (#1): | GM Industrial Standard Field Attachable Connector: Form C, 4-pin (3+1PE; PE across cable outlet), UL 1977, black housing, screw type, PG7; without circuitry, 230 V AC/DC, 6 A |
| Contact Base Material (#1): | CuZn |
| Connector Type: | Field attachable |
| Connector Design: | Angled |
| Conductor Cross Section: | 0.25 - 0.75 mm² |
| Coding: | C |
| Clearance / Creepage Distance: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Cable Gland Material: | PA GF |
| Cable Gland Gasket: | NBR |
| Cable Gland Color: | black |
| Cable Gland: | PG7 |
| CSA: | yes |
| Attachment Type: | Central Screw |
| Attachment Material: | Steel, Philips combi slot |
| Contact Bearer Color: | black |
| Contact Bearer Material (#1): | PA GF |
| Contact Plating: | Cu/Sn |
| Item Description: | GDS 307 black |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Housing Material: | PA GF |
| Housing Color: | black |
| Flammability Class (Housing): | UL 94 HB |
| Flammability Class (Contact Bearer): | UL 94 V-2 |
| Flammability Class (Cable Gland): | UL 94 HB |
| Fastening Torque (Contact Screw): | M3: (25-30) Ncm |
| Fastening Torque (Cable Gland): | (150-200) Ncm |
| Fastening Torque (Attachment): | (40-50) Ncm |
| Contact Resistance: | ≤ 10 mOhm |
| Ambient Temperature (Operation)*: | -40 °C - +125 °C |
| Unique No.: | hir933024100 |
