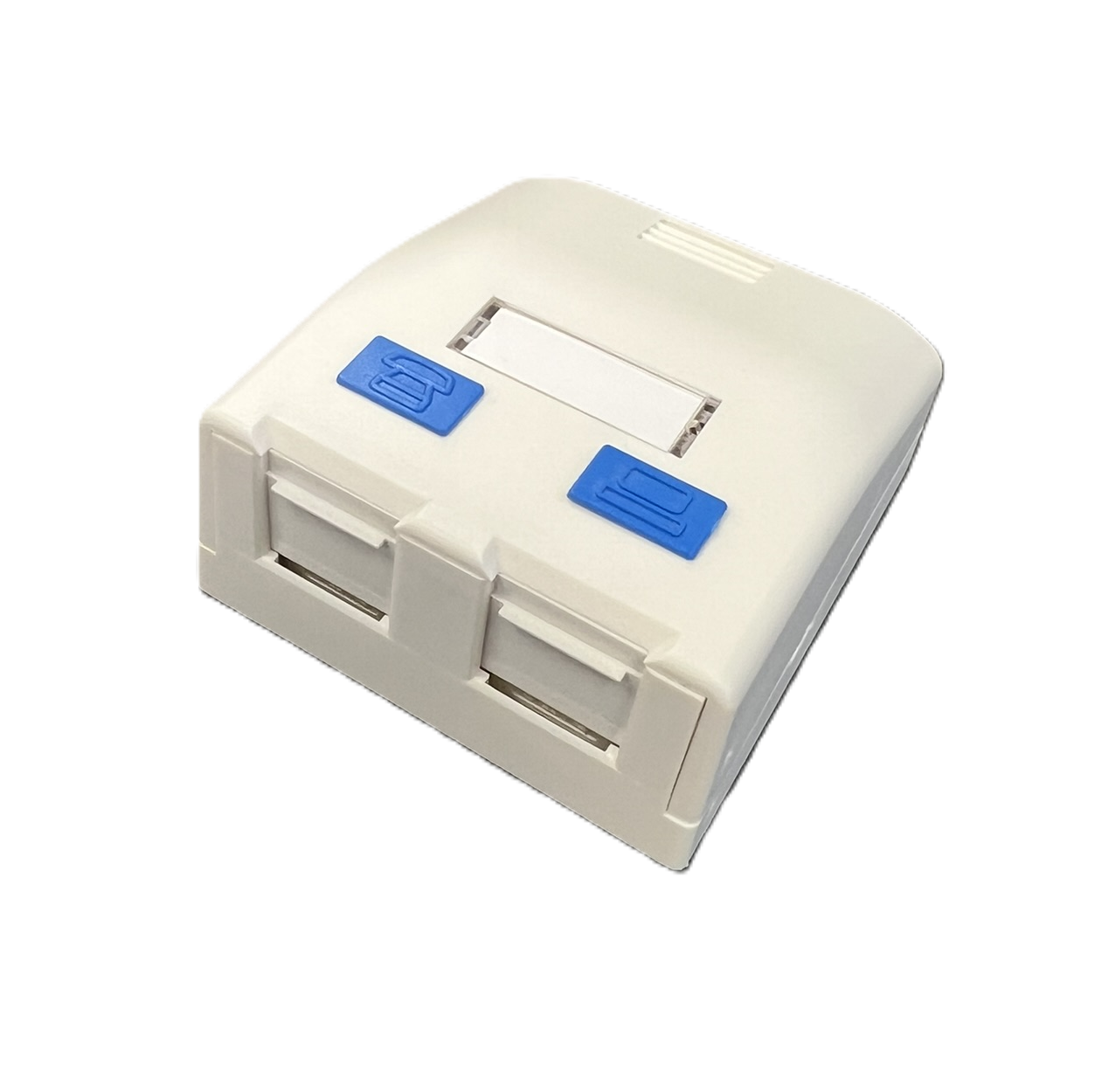

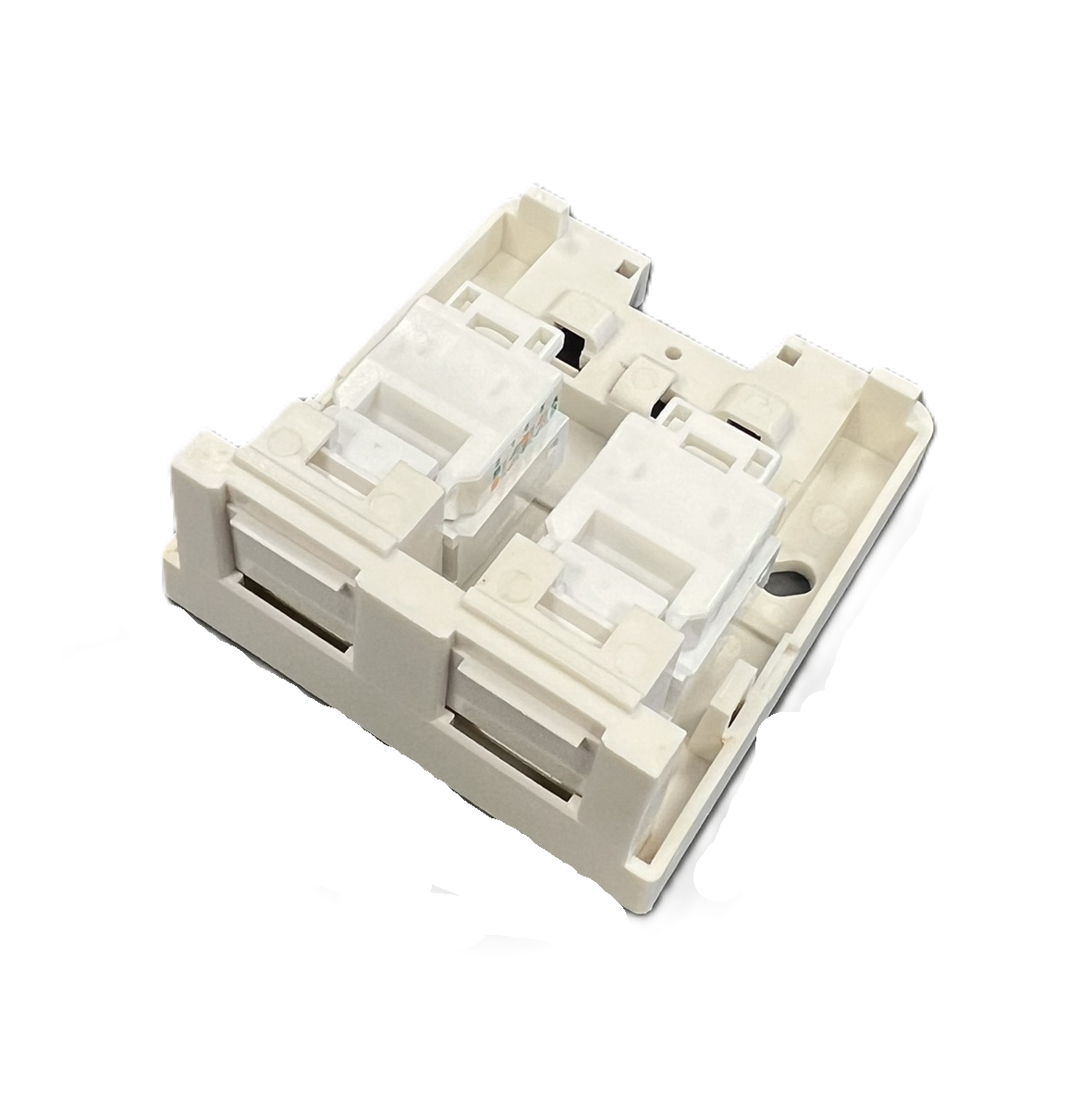

Low data wall socket for 2 Keystone /RJ45/ RJ11
€4.35*
Prices excl. VAT plus shipping costs
Article number:
ES 600
Manufacturer number:
ES 600
Brand:
Lumberg Nederland
Minimum order quantity:
100
Product information

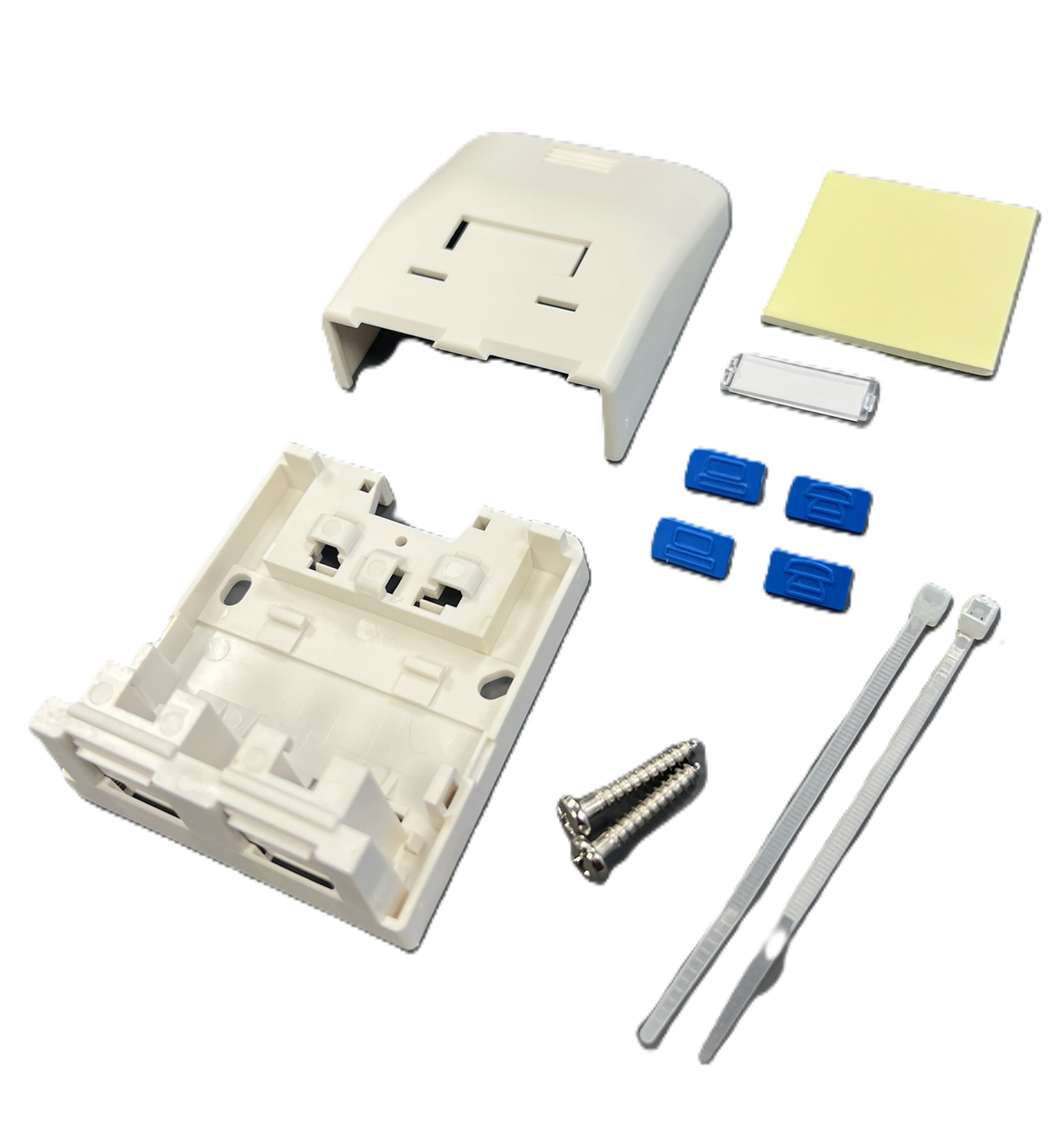

This product is a simple low-profile wall socket with space for two Keystone/RJ45/RJ11 connectors, designed to be easily mounted on walls where space is limited. Because it can accommodate a standard keystone connector, you are free to choose whichever type you prefer. Equipped with spring-loaded fabric cover for the connection.(Keystone connector not included).
Downloads
Specifications
| Assembly arrangement: | Surface mounted box |
|---|---|
| Suitable for mounting over existing flush-mounted box: | |
| Suitable for modular domestic switching devices: | |
| Number of modules (module system): | 2 |
| Number of units: | 1 |
| Mounting direction: | Horizontal and vertical |
| Shape: | Rectangular |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen free: | |
| Surface finishing: | Matt |
| Colour: | White |
| RAL-number (similar): | 9010 |
| With duct entry: | |
| With cable entry: | |
| With screw gland entry: | |
| With installation tube entry: | |
| Inlet from the rear: | |
| Number of inlets: | 1 |
| Shock resistant: | |
| Degree of protection (IP): | IP20 |
| Width: | 56.9 mm |
| Height: | 26.924 mm |
| Depth: | 63.5 mm |
| Unique No.: | lnlAD_168 |
