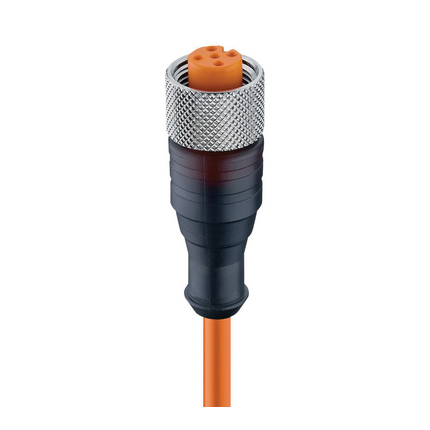

M12 Standard Sensor/Actuator Single-Ended Cordset
€27.17*
Prices excl. VAT plus shipping costs
Article number:
RKT 5-56/10 M
Manufacturer number:
11380
EAN:
04020841001734
Brand:
Lumberg Automation
Minimum order quantity:
10
Product information
The M12 Standard Sensor/Actuator Single-Ended Cordset features a straight, 5-pin female connector with A-coding and a translucent body. It is designed to operate at 50 V AC / 60 V DC, 4 A, with a PVC orange cable comprising five wires, each measuring 0.34 mm². This cordset is unshielded, ensuring a reliable connection for various sensor and actuator applications. It complies with IEC 61076-2-101 standards and offers protection degrees IP65 and IP67, making it suitable for demanding environments. The connector's materials include a contact base of CuSn with Cu/Au plating, and a molded body made of TPU, ensuring durability and long-term performance.
Downloads
Datasheet (EN)Specifications
| Pin Color 05@Side 1: | grey |
|---|---|
| Pin Color 04@Side 1: | black |
| Pin Color 03@Side 1: | blue |
| Pin Color 02@Side 1: | white |
| Pin Color 01@Side 1: | brown |
| Part Number (#1): | 11380 |
| Overvoltage Category: | III acc. to DIN EN 60664-1 (VDE 0110-1) |
| Note: | Do not connect or disconnect under load. |
| Molded Body Material: | TPU |
| Molded Body Color: | Translucent |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Minimal Bending Radius (Fixed Inst): | ˃ 5 x D |
| Mating Cycles: | ≤ 100 |
| Note Derating: | Notice derating |
| Operating Voltage: | 50 V AC / 60 V DC |
| Operating Temperature (UL): | max. + 50 °C |
| Oil Resistance: | Good chemical and oil resistance |
| O-Ring Material: | FKM, green |
| Number of Wires: | 5 |
| Number of Pins: | 5 |
| UL: | UL 2238; cURus |
| Type of Contact / Gender: | female |
| Shielding: | Unshielded |
| UL Cable Type: | AWM: 2464 |
| UL-File: | E315587 |
| Wire Insulation Material: | PVC class 43 |
| RoHS Compliant: | yes |
| Product Type: | Assemblies & Patch cords |
| Product Sub Family: | M12 Standard |
| Product Family: | Sensor / Actuator Connectors |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Rated Voltage (UL): | 30 V AC/DC |
| Rated Voltage: | 60 V |
| Rated Impulse Voltage: | 1.5 kV |
| Rated Current*: | 4 A |
| Rated Current (UL)*: | 4 A |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Contact Bearer Color: | Orange |
| Cable Number: | 056 |
| Cable Length: | 10 m |
| Coding: | A |
| Contact Base Material (#1): | CuSn |
| Connector Type: | Cordset, single ended |
| Connector Design: | straight |
| Conductor material: | Cu |
| Conductor Size: | 0.34 mm² |
| Cable Jacket Material: | PVC class 43 |
| Cable Jacket Color: | orange |
| Ambient Temperature (Flex Installation): | + 5 °C - + 80 °C |
| Ambient Temperature (Fixed Installation): | - 40 °C - + 80 °C |
| Ambient Temperature (Drag Chain Inst): | + 5 °C - + 60 °C |
| Ambient Temperature (Operation)*: | - 40 °C - + 90 °C |
| Cable Diameter D: | ø 5.70 ± 0.20 mm |
| Cable Characteristics: | LABS-free of lacquer wetting disturbing substances; Exclusion of silicone |
| Attachment Type: | Coupling Nut |
| Attachment Plating: | Nickel-plated |
| Attachment Material: | CuZn |
| Long Description (#1): | M12 Standard Sensor/Actuator Single-Ended Cordset: Female, straight, 5-pin, A-coded, translucent body, 50 V AC / 60 V DC, 4 A; PVC orange cable, 5-wires, 0.34 mm² |
| Flammability Class (Molded Body): | UL 94 HB |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Item Description: | RKT 5-56/10 M |
| Insulation Resistance Cable: | min 10 MOhm x km |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Insulated Wire Diameter: | ø 1.50 mm |
| Flammability Class (Cable Jacket): | DIN EN 60332-1-2, VDE 0482-332-1-2, IEC 60332-1-2, UL VW-1 |
| Contact Resistance: | ≤ 10 mOhm |
| Contact Plating: | Cu/Au |
| Contact Bearer Material (#1): | TPU |
| Cycles (Bending): | ˃ 1 M |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Design Standard: | IEC 61076-2-101 |
| Unique No.: | aut11380 |
