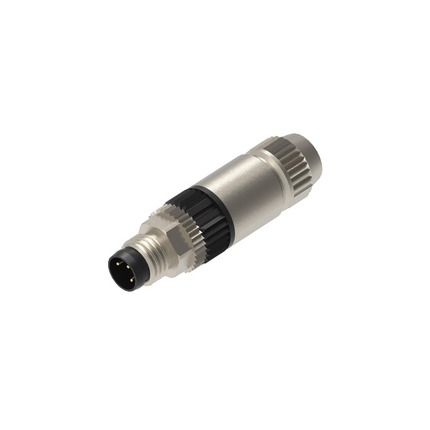

M8 Field Attachable Connector for decentralized field assembly
€20.56*
Prices excl. VAT plus shipping costs
Article number:RSMCI 3A
Manufacturer number:935070001
EAN:04001088178441
Brand:Belden
Minimum order quantity:1
Product information
The M8 Field Attachable Connector is designed for decentralized field assembly, utilizing an insulation displacement contact termination method (IDC). It features a straight, male, 3-pole configuration with A-coding, allowing secure connections in various applications. This connector boasts a slim design with a robust zinc diecast metal housing, ensuring durability in harsh environments with an IP65/IP67 protection rating, making it ideal for outdoor and industrial use. It accommodates wire sizes from 0.14mm² to 0.34mm² and is compatible with wires measuring AWG 22 to AWG 26.
With a rated voltage of 32V and a current capacity of 4A, this connector ensures efficient electrical transmission. The high insulation resistance of over 10^9 Ohm and low contact resistance of up to 10 mOhm provide reliable connectivity. Designed with a coupling nut attachment, it features a clamping cage for strain relief, suitable for cables with diameters ranging from 2.5mm to 5.1mm. It adheres to IEC 61076-2-104 design standards, ensuring compatibility and safety in demanding applications.
This connector is widely used in sensor and actuator connectivity, particularly in industrial automation systems. The unshielded design allows for easy integration into existing systems, providing flexibility and ease of use in complex assemblies. With UL and RoHS compliance, it assures adherence to safety and environmental standards.
With a rated voltage of 32V and a current capacity of 4A, this connector ensures efficient electrical transmission. The high insulation resistance of over 10^9 Ohm and low contact resistance of up to 10 mOhm provide reliable connectivity. Designed with a coupling nut attachment, it features a clamping cage for strain relief, suitable for cables with diameters ranging from 2.5mm to 5.1mm. It adheres to IEC 61076-2-104 design standards, ensuring compatibility and safety in demanding applications.
This connector is widely used in sensor and actuator connectivity, particularly in industrial automation systems. The unshielded design allows for easy integration into existing systems, providing flexibility and ease of use in complex assemblies. With UL and RoHS compliance, it assures adherence to safety and environmental standards.
Downloads
Datasheet (EN)Specifications
| Ambient Temperature (Operation)*: | -40°C to +85°C |
|---|---|
| Attachment Material: | CuZn |
| Attachment Plating: | nickel-plated |
| Attachment Type: | Coupling Nut |
| Coding: | A |
| Connector Design: | straight |
| Connector Type: | Field attachable |
| Contact Base Material (#1): | CuZn |
| Contact Bearer Color: | black |
| Contact Bearer Material (#1): | PBT |
| Contact Plating: | AuNi |
| Contact Resistance: | ≤ 10 mOhm |
| Customer Specific Product: | |
| Design Standard: | IEC 61076-2-104 |
| Fastening Torque (Attachment): | 50-60 Ncm |
| Housing Color: | grey metallic |
| Housing Material: | zinc diecast |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Item Description: | RSMCI 3A |
| Long Description (#1): | M8 Field Attachable Connector for decentralized field assembly, insulation displacement contact termination method (IDC), straight, male, 3-pole, A-coded, slim design, zinc diecast metal housing for harsh environment, IP65/IP67, unshielded, |
| Maximum Wire Cross Section: | 0,14mm²...0,34 mm² |
| Note Derating: | * Notice derating |
| Number of Pins: | 3 |
| Operating Temperature (UL): | max. 85 °C |
| Operating Voltage: | 32 V AC/DC |
| Overvoltage Category: | III |
| Packaging unit: | 10 individually packed connectors in a multipack carton |
| Part Number (#1): | 935070001 |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Product Family: | Sensor / Actuator Connectors |
| Product Sub Family: | M8 Standard |
| Protection Degree / IP Rating (IEC 60529): | IP65, IP67 |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Rated Current*: | 4 A |
| Rated Impulse Voltage: | 1,5 kV |
| RoHS Compliant: | yes |
| Strain-Relief: | clamping cage |
| Suitable Cables: | Ø2,5...Ø5,1 mm |
| Type of Connection: | insulation displacement contact (IDC) |
| Type of Contact / Gender: | male |
| UL: | cURus |
| UL-File: | E95522 |
| Weight: | 11,9 g |
| uniek_nr: | 935070001 |
