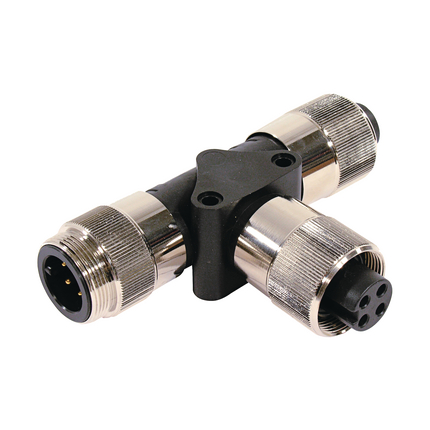

Mini Power Tee Connector
On Request
Vraag product aanPrices excl. VAT plus shipping costs
Article number:
TAP-P 4
Manufacturer number:
511000001
Brand:
Lumberg Automation
Minimum order quantity:
1
Product information
The Mini Power Tee Connector is designed for efficient power distribution in various applications. This connector features a 1 3/8" male to 1 3/8" female and 1 3/8" female configuration, accommodating 4 pins (3+PE). It boasts a robust black PVC body that ensures durability and reliability. Rated for 600 V and 40 A, it offers superb performance and optimal safety. Ideal for industrial and automation applications, this connector also meets the protection standards of IP65 and IP67, ensuring it performs well in harsh environments.
Downloads
Datasheet (EN)Specifications
| UL File: | UL: E482233 |
|---|---|
| Product Sub Family, Side 3: | Mini Power 1-3/8" |
| Product Sub Family, Side 2: | Mini Power 1-3/8" |
| Product Sub Family: | Mini Power 1-3/8" |
| Product Family: | Power Connector |
| Part Number (#1): | 511000001 |
| Number of Pins, Side 3: | 4(3+PE) |
| Number of Pins, Side 2: | 4(3+PE) |
| Number of Pins: | 4(3+PE) |
| Molded Body Material, Side 3: | PVC |
| Molded Body Material, Side 2: | PVC |
| Molded Body Material: | PVC |
| Molded Body Color, Side 3: | Black |
| Molded Body Color, Side 2: | Black |
| Protection Degree / IP Rating (IEC 60529): | IP65, IP67 |
| Protection Degree / IP Rating (IEC 60529), Side 2: | IP65, IP67 |
| UL Certification: | UL 2237 LISTED |
| Type of Contact / Gender, Side 3: | female |
| Type of Contact / Gender, Side 2: | female |
| Type of Contact / Gender: | male |
| Shielding: | Unshielded |
| RoHS Compliant: | yes |
| Rated Voltage (UL): | 600 V |
| Rated Current (UL)*: | 25 A |
| Protection Degree / IP Rating, Side 3**: | IP65, IP67 |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67 |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Protection Degree / IP Rating Note: | * only if mounted and locked in combination with Hirschmann / Lumberg connector. |
| Protection Degree / IP Rating (IEC 60529), Side 3: | IP65, IP67 |
| Molded Body Color: | Black |
| Mating Cycles, Side 3: | ≤ 100 |
| Contact Base Material, Side 2: | Cu Alloy |
| Contact Base Material (#1): | Cu Alloy |
| Connector Type: | Tee |
| Connector Design, Side 3: | straight |
| Connector Design, Side 2: | straight |
| Connector Design: | straight |
| Conductor Cross Section: | 10 AWG |
| CSA: | C-UL LISTED: E482233 |
| Attachment Type, Side 3: | Coupling Nut |
| Attachment Type, Side 2: | Coupling Nut |
| Attachment Type: | Coupling Nut |
| Ambient Temperature (Operation), Side 3*: | -40°C to +90°C |
| Ambient Temperature (Operation), Side 2*: | -40°C to +90°C |
| Contact Base Material, Side 3: | Cu Alloy |
| Contact Bearer Color: | black |
| Mating Cycles, Side 2: | ≤ 100 |
| Mating Cycles: | ≤ 100 |
| Long Description (#1): | Mini Power Tee Connector: 1 3/8" male to 1 3/8" female and 1 3/8" female, 4-pin(3+PE), black body, 600 V, 40 A |
| Item Description: | TAP-P 4 |
| Customer Specific Product: | |
| Contact Plating, Side 3: | Au |
| Contact Plating, Side 2: | Au |
| Contact Plating: | Au |
| Contact Bearer Material, Side 3: | PVC |
| Contact Bearer Material, Side 2: | PVC |
| Contact Bearer Material (#1): | PVC |
| Contact Bearer Color, Side 3: | black |
| Contact Bearer Color, Side 2: | black |
| Ambient Temperature (Operation)*: | -40°C to +90°C |
| Unique No.: | aut511000001 |
