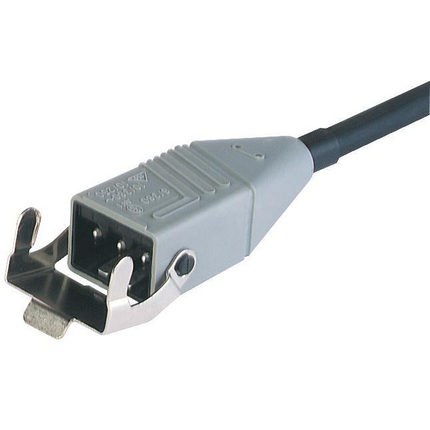

Sinlge-Ended Cordset (ST Series): Male, 3-pin+PE,straight with safety bracket
€12.27*
Prices excl. VAT plus shipping costs
Article number:STAS 3 k 075 SI 1m
Manufacturer number:931300055
EAN:04002044215729
Brand:Hirschmann
Minimum order quantity:100
Product information
The Single-Ended Cordset (ST Series) is a robust and durable power connector. Featuring a male, straight design with a safety bracket, it ensures secure and stable connections. This connector is equipped with 3 pins plus PE, housed in a grey casing, and can handle a rated current of 10 A at an operating voltage of 400 V AC/230 V DC. It complies with the strict standards of DIN EN 61984 (VDE 0627) and possesses an IP54 protection rating, making it suitable for diverse industrial applications.
The benefits of this cordset include its reliable performance under various conditions, a robust construction that can withstand a wide ambient temperature range from -30°C to +90°C, and a straightforward installation process due to its solder type connection. This product is unshielded, with a contact resistance of ≤ 10 mOhm
This cordset is ideal for use in industrial power applications where secure, stable, and safe connections are paramount. It's suited for environments requiring durability and reliability, such as manufacturing plants, automation systems, and other industrial settings.
The benefits of this cordset include its reliable performance under various conditions, a robust construction that can withstand a wide ambient temperature range from -30°C to +90°C, and a straightforward installation process due to its solder type connection. This product is unshielded, with a contact resistance of ≤ 10 mOhm
This cordset is ideal for use in industrial power applications where secure, stable, and safe connections are paramount. It's suited for environments requiring durability and reliability, such as manufacturing plants, automation systems, and other industrial settings.
Downloads
Datasheet (EN)Specifications
| Ambient Temperature (Fixed Installation): | -25°C to +60°C |
|---|---|
| Ambient Temperature (Operation)*: | -30°C to +90°C, notice Derating |
| Attachment Type: | safety bracket |
| Cable Jacket Material: | EM 3 (EPDM) |
| Cable Length: | 1 m |
| Cable Number: | H05RR-F 4G0.75 |
| Clearance / Creepage Distance: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Conductor Cross Section: | 0.75 mm² |
| Conductor Size: | 0.75 mm² |
| Connector Design: | Straight with safety bracket |
| Connector Type: | Cordset, single ended |
| Contact Base Material (#1): | CuZn |
| Contact Bearer Color: | black |
| Contact Bearer Material (#1): | PA 66 GF |
| Contact Plating: | Cu/Sn |
| Contact Resistance: | ≤ 10 mOhm |
| Customer Specific Product: | |
| Design Standard: | DIN EN 61984 (VDE 0627) |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Flammability Class (Housing): | UL 94 HB |
| Housing Color: | grey |
| Item Description: | STAS 3 k 075 SI 1m |
| Long Description (#1): | Sinlge-Ended Cordset (ST Series): Male, straight with safety bracket, 3-pin+PE, grey housing, 400 V AC/230 V DC, 10 A |
| Mating Cycles: | max. 50 |
| Molded Body Material: | PA 6 GF |
| Note: | Do not connect or disconnect under load. |
| Note Derating: | * Notice derating |
| Number of Pins: | 3+PE |
| Number of Wires: | 4 |
| Operating Voltage: | 400 V AC / 230 V DC |
| Part Number (#1): | 931300055 |
| Pin Color 01@Side 1: | brown |
| Pin Color 02@Side 1: | blue |
| Pin Color 03@Side 1: | black |
| Pin Color PE@Side 1: | green-yellow |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Product Family: | Power Connector |
| Product Sub Family: | ST-Series |
| Protection Degree / IP Rating (IEC 60529): | IP54 |
| Protection Degree / IP Rating**: | IP54 |
| Protection Degree / IP Rating Note: | * only if mounted and locked in combination with Hirschmann / Lumberg connector. |
| Rated Current*: | 10 A |
| Rated Impulse Voltage: | 2.5 kV / 4.0 kV |
| Rated Voltage: | 400 V AC / 250 V DC |
| SEV: | SEV |
| Shielding: | Unshielded |
| Type of Connection: | solder |
| Type of Contact / Gender: | male |
| VDE: | VDE 61984 |
| Wire Insulation Material: | EI 4 (EPDM) |
| uniek_nr: | hir931300055 |
