RJ45 plug housing plastic for RJ45 plug
€6.07*
Prices excl. VAT plus shipping costs
Article number:
YT-RJ45-CPE-01-001
Manufacturer number:
YT-RJ45-CPE-01-001
Brand:
CNLINKO
Minimum order quantity:
1
Product information

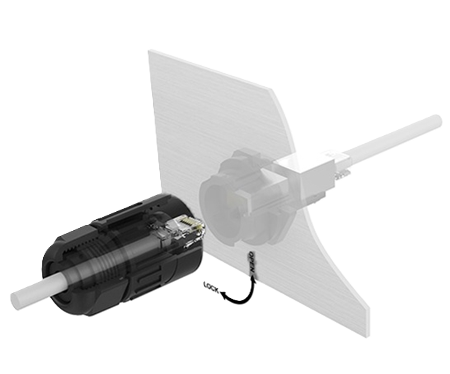

The housing is suitable for any RJ45, allowing you to easily create a waterproof connection in industrial environments.
The housing is suitable for the following counterpart :
YT-RJ45-JSX-01-001
YT-RJ45-JSX-04-002
The YT‑RJ45 is the ideal solution for:
- Industrial Ethernet connections in production lines, machines, and robotics
- Outdoor stage and lighting installations (DMX)
- Security systems, IP cameras, and network cabinets in outdoor installations
- Automation projects where reliability under harsh conditions is required
The housing is suitable for the following counterpart :
YT-RJ45-JSX-01-001
YT-RJ45-JSX-04-002
The YT‑RJ45 is the ideal solution for:
- Industrial Ethernet connections in production lines, machines, and robotics
- Outdoor stage and lighting installations (DMX)
- Security systems, IP cameras, and network cabinets in outdoor installations
- Automation projects where reliability under harsh conditions is required
Downloads
Specifications
| Type of fastening: | Other |
|---|---|
| Type of connector: | RJ45 8(8) |
| Material connector housing: | Plastic |
| Suitable for number of connectors: | 1 |
| Category: | 6A (TIA) |
| Shielded buses: | |
| Shielded housing: | |
| Separate earthing connection: | |
| With label space: | |
| Separate strain relief: | |
| Outlet direction: | Straight |
| With dust cover: | |
| Degree of protection (IP): | IP67 |
| Degree of protection (NEMA): | 4X |
| Ambient temperature: | -40 - 80 °C |
| Mechanical coding: | |
| Colour coding: | |
| Unique No.: | cnlYT-RJ45-CPE-01-001 |
