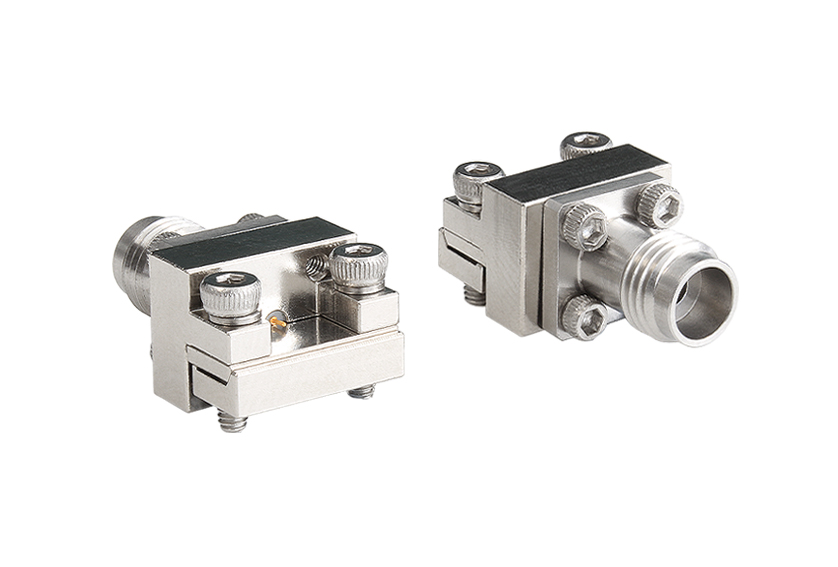

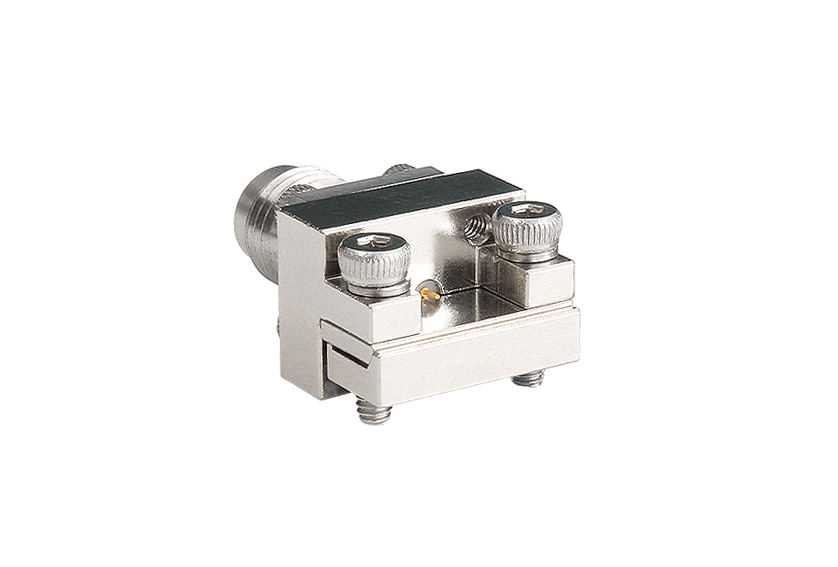

2.4mm Jack End Launch RF Connector
€200.73*
Prices excl. VAT plus shipping costs
Article number:
RF240EJ
Manufacturer number:
RF240EJ
Brand:
Bulgin
Minimum order quantity:
1
Datasheet (EN)Specifications
| Operating Temperature (min.): | -55°C |
|---|---|
| Thread Size: | M7x0.5 6g |
| Voltage (max.): | 150V |
| VSWR: | < 1.60 |
| Operating Frequency (min.): | 0GHz |
| Coupling Torque (min.): | 0.80Nm |
| Operating Temperature (max.): | +125°C |
| Body Length: | 20.12mm |
| Body Material: | Stainless Steel Passivation |
| Centre Contact Retention Force: | >26.7N |
| Contact Pin Material: | Beryllium Copper |
| Coupling Nut Retention Force: | >27.2Kg |
| Dielectric Withstanding Voltage: | >500V |
| Durability: | >500 cycles |
| Function: | Female End Launch RF Connector |
| Impedance: | 50Ohm |
| Insulation Resistance: | >5000MOhm |
| Insulator: | (UNFILLED ULTEM 1000/PEI) / (Adapter ASTM D 1710) |
| Coupling Torque (max.): | 1.10Nm |
| Operating Frequency (max.): | 50GHz |
| Unique No.: | blgRF240EJ |
