M12 - D-Coded Fast ethernet CAT5E DATA Double-ended cordset male- male
0985 508 121/42 M

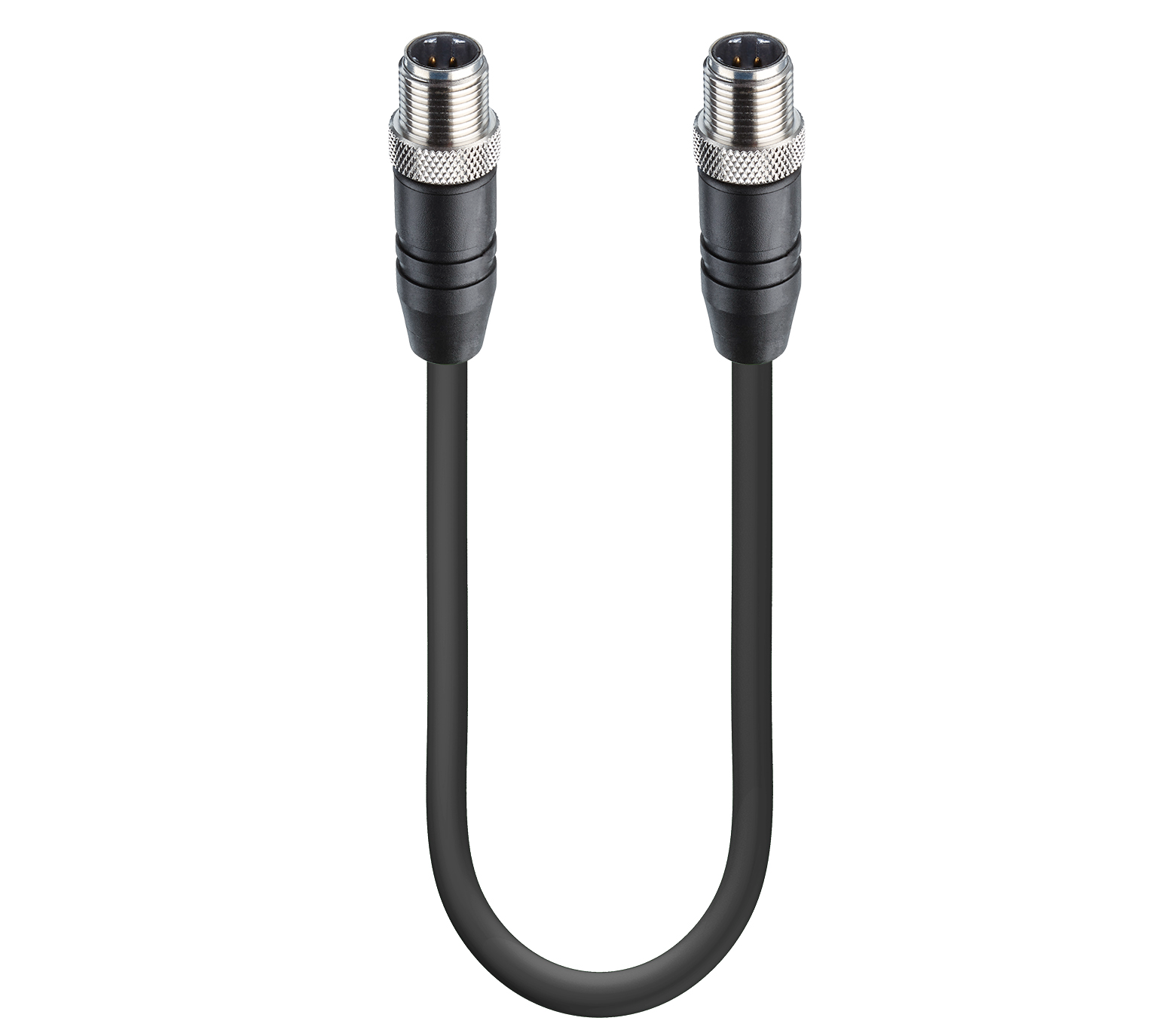

Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed for reliable and high-speed data transmission. It features male straight D-coded black M12 Railway connectors on both ends, providing robust connections even in demanding environments. This cordset is shielded and rated for 50 V AC / 60 V DC and 4 A, offering excellent performance for various applications. The X-FRNC black cable is constructed with 4-wires and a conductor size of 0.34 mm², ensuring durability and resistance to harsh conditions. This product is ideal for use in railway systems, industrial automation, and communication networks, ensuring data integrity and performance.
€410.10
per item
0985 508 121/32 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed for efficient and reliable data transmission. This cordset features male straight D-coded black M12 Railway connectors on both ends, ensuring secure and stable connections in demanding environments. Shielded for protection against electromagnetic interference, the cordset supports 50 V AC and 60 V DC with a current rating of 4 A. The black X-FRNC cable consists of 4 wires with a conductor size of 0.34 mm², providing a durable and flame-resistant solution with protection degrees of IP65, IP67, and IP69K. Ideal for railway and industrial applications, it ensures high-speed data transmission up to 100 Mbit/s while maintaining high insulation resistance and minimal contact resistance.
€331.06
per item
0985 508 121/30 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is an advanced cable solution designed for robust data transmission in industrial environments. Featuring male straight D-coded black M12 Railway connectors on both ends, this cordset is shielded to provide exceptional protection against electromagnetic interference. It supports an operating voltage of 50 V AC / 60 V DC and a current rating of 4 A, ensuring reliable connectivity for your devices. The cord's construction includes an X-FRNC black cable housing four copper wires with a cross-sectional area of 0.34 mm². The cable meets stringent fire protection standards, making it suitable for use in railways and other applications requiring high safety compliance.
€315.22
per item
0985 508 121/20 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed for demanding industrial applications, particularly in railway systems. It features male straight D-coded black M12 Railway connectors on both ends, ensuring a secure and robust connection. The cordset is shielded to protect against electromagnetic interference, supporting data transmission at Fast Ethernet Cat5e speeds of 100 Mbit/s. It is rated for voltages of 50 V AC / 60 V DC and currents up to 4 A. The X-FRNC black cable is durable, flame-retardant (UL 94 V-0), and halogen-free, with a conductor size of 0.34 mm² and four wires colored yellow, white, orange, and blue. The double-ended design and high IP ratings (IP65, IP67, IP69K) make this cordset suitable for harsh environments in industrial and transportation settings. The connectors feature coupling screws and are made from nickel-plated CuZn for enhanced durability. The insulation resistance is higher than 10^9 Ohm and the contact resistance is up to 10 mOhm, ensuring excellent electrical performance.
€222.20
per item
0985 508 121/16 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is a high-quality cordset designed for efficient data transmission. Featuring male straight D-coded black M12 Railway connectors on both ends, it provides reliable communication in various industrial applications. The connectors are shielded, ensuring superior protection against interference and maintaining the integrity of the signal at all times. Operating at 50 V AC / 60 V DC and supporting a current of up to 4 A, this cordset is built to handle demanding conditions. It utilizes an X-FRNC black cable with 4-wires (0.34 mm² each), offering excellent durability and flexibility. The cordset is suitable for Fast Ethernet Cat5e data transmission with a rate of 100 Mbit/s, making it ideal for high-speed data networks.
€193.38
per item
0985 508 121/15 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed to deliver reliable and efficient data connectivity in demanding environments. This cable features male straight D-coded black M12 Railway connectors on both ends, supporting a rated voltage of 50 V AC and 60 V DC, and a current capacity of 4 A. The cordset is shielded to ensure signal integrity and reduce electromagnetic interference, making it ideal for Fast Ethernet Cat5e data transmission at speeds up to 100 Mbit/s. Constructed with an X-FRNC black cable, it contains four wires with a conductor size of 0.34 mm², wrapped in a robust polyolefin insulation and overall jacket. The cable's durability is enhanced by its compliance with stringent flame retardant standards and its ability to perform reliably in extreme temperatures ranging from -40°C to +90°C. This cordset is particularly suited for use in railway applications and other industrial environments requiring secure and consistent data connectivity.
€187.73
per item
0985 508 121/10 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed for robust and reliable data transmission, featuring male straight D-coded black M12 Railway connectors on both ends. This cordset is shielded and rated for 50 V AC/60 V DC with a current capacity of 4 A, ensuring secure and stable connections in demanding environments. The cable is made of X-FRNC material, which is resistant to flames and suitable for railway applications due to its high flammability rating (UL 94 V-0). It contains 4 cores with a conductor size of 0.34 mm², suitable for fast Ethernet Cat5e data transmission at rates up to 100 Mbit/s. With an IP rating of IP65, IP67, and IP69K, it is well protected against dust and water ingress, making it ideal for harsh electrical and mechanical environments.
€150.31
per item
0985 508 121/1,5 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset features male straight D-coded black M12 Railway to male straight D-coded black M12 Railway connectors. This cordset is shielded and offers robust performance with a rated voltage of 50 V AC / 60 V DC and a current rating of 4 A. The conductors are made of high-quality Cu (copper) and are encased in a black X-FRNC (Flexible Flame Retardant Non-Corrosive) cable jacket, ensuring reliable data transmission up to 100 Mbit/s. The cable has four wires, each with a conductor size of 0.34 mm², and is designed to withstand harsh environments with an operating temperature range of -40 °C to +90 °C. The cordset ensures secure and stable connections, fully compliant with standards such as IEC 61076-2-101. It is suitable for various applications including railway systems, industrial automation, and other demanding settings where a durable and dependable data connection is required.
€88.90
per item
0985 508 121/1 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed for high-speed data transmission and reliable connectivity in demanding environments. This cable features a male-to-male straight D-coded black M12 connector, ensuring a secure and durable connection. The shielded design offers protection against electromagnetic interference (EMI), enhancing signal quality and reliability. The cordset operates at 50 V AC / 60 V DC and has a current rating of 4 A, making it suitable for various industrial applications. It uses an X-FRNC black cable with 4 wires, each with a conductor size of 0.34 mm². This robust and flexible cable can withstand a wide range of temperatures, from -40 °C to +90 °C, and offers high resistance to oil and harsh environmental conditions. The cable is available in multiple lengths to suit different installation requirements.
€85.29
per item
0985 508 121/0,5 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is designed to deliver reliable data connectivity in demanding environments. This cordset features male straight D-coded black M12 Railway connectors on both ends, ensuring secure and robust connections. It is shielded to provide optimal protection against electromagnetic interference, making it suitable for high-speed data transmission at a rate of 100 Mbit/s. Rated for 50 V AC / 60 V DC and 4 A, this cordset ensures safe and efficient power delivery with minimal contact resistance. The X-FRNC black cable is engineered for durability and flexibility, with a 4-wire configuration and conductor size of 0.34 mm². The cordset is designed to operate within a wide temperature range from -40°C to +90°C and is compliant with various industry standards, including IP65, IP67, and IP69K for ingress protection. This makes it ideal for use in railway applications and other high-stress environments where reliable performance is crucial.
€81.67
per item
0985 508 121/5 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset features male straight D-coded black M12 Railway connectors on both ends, providing a secure and reliable data transmission solution. With shielding to protect against electromagnetic interference, this cordset is suitable for railway applications and offers a robust performance with rated voltage of 50 V AC / 60 V DC and a rated current of up to 4A. Its black X-FRNC cable with 4 wires of 0.34 mm² ensures durable and flexible connectivity. This cordset is compliant with multiple safety and environmental standards, including RoHS, and is designed to withstand operating temperatures ranging from -40°C to +90°C. Ideal for use in harsh railway environments, it supports Fast Ethernet Cat5e data transmission at speeds of up to 100 Mbit/s. The connectors feature IP65, IP67, and IP69K ratings, ensuring reliable performance in various environmental conditions.
€114.11
per item
0985 508 121/2 M
Fast Ethernet Cat5e Data Double-Ended Cordset
The Fast Ethernet Cat5e Data Double-Ended Cordset is a high-performance connectivity solution designed for demanding industrial environments. It features male straight D-coded black M12 Railway connectors on both ends, ensuring reliable data transmission and robust physical connections. The cordset is shielded to enhance signal integrity and resist electromagnetic interference, making it suitable for applications where data accuracy is crucial. With a voltage rating of 50 V AC / 60 V DC and current capacity of 4 A, this cordset is built to handle substantial power loads while maintaining operational stability. The X-FRNC black cable, comprising four 0.34 mm² wires, offers flexibility and durability, with a temperature operating range from -40 °C to +90 °C, and is compliant with stringent flammability standards. Applications of this cordset include railway systems, automation systems, and other industrial settings requiring reliable RJ45 Ethernet connections.
€92.48
per item
