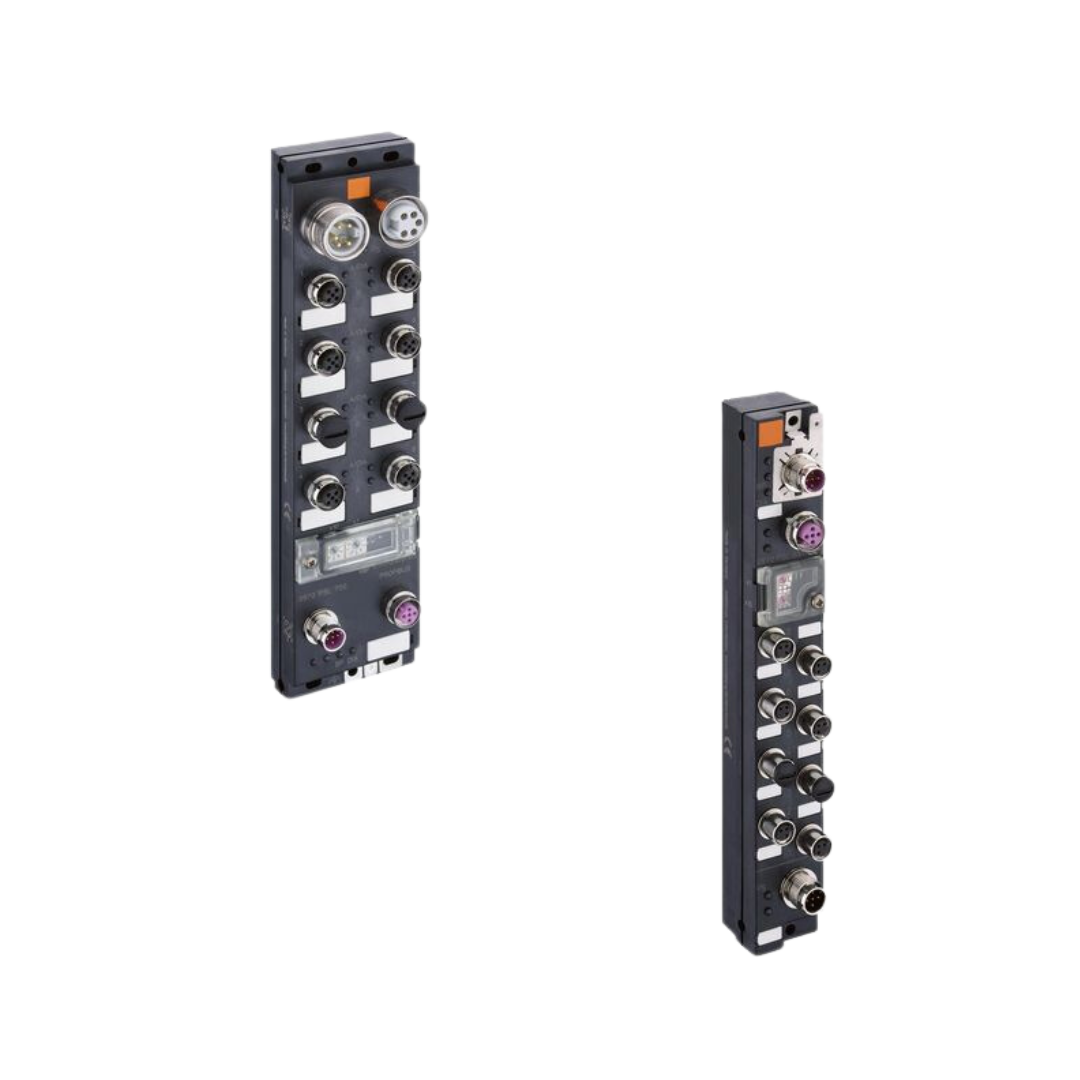

LioN-M PROFIBUS
0970 PSL 701
LioN-M M12-60
The LioN-M M12-60 is a high-performance I/O module designed for industrial automation setups. Encased in durable plastic, this module supports the PROFIBUS protocol and features M12 bus connectors that are B-coded. It boasts 16 digital input channels, providing reliable and efficient data integration for complex systems. The power supply is managed through a 7/8" connector with 5-poles, ensuring stable and secure power transmission. The module's compact dimensions (60 mm x 40 mm x 243 mm) and robust construction allow it to withstand harsh industrial environments, with an IP67 rating for dust and water resistance. Additionally, it operates within a temperature range of -10°C to 60°C, making it versatile for various applications. The LioN-M M12-60 also features advanced protection circuits and status indicators, enhancing its reliability and ease of monitoring.
€811.15
per item
0970 PSL 700
LioN-M M12-60
The LioN-M M12-60 is a high-performance I/O module tailored for PROFIBUS networks, featuring M12 connectors that are both B-coded for the bus connection and A-coded for I/O connections. With up to 16 universal digital input/output channels, this module is ideal for integrating various sensors and actuators into a PROFIBUS system. The device operates within a wide voltage range of 19 V DC to 30 V DC and offers robust protection mechanisms including overload and short-circuit protection. Additionally, the LioN-M M12-60 boasts an IP67 rating, ensuring reliable performance in harsh environments. The module includes LED indicators for clear status display and is designed for easy mounting using standard M4 screws with locking washers. With a compact design (60 mm x 40 mm x 243 mm) and a weight of 390 g, it is suited for space-constrained setups. The 0970 PSL 700 part number from Belden ensures compliance with UL and CE standards, making it a reliable choice for industrial automation applications.
€895.35
per item
0970 PSL 650
LioN-S M8-30
LioN-S M8-30, Plastic, PROFIBUS, M12 Bus Connector, B-coded, 8 DIO, M12 Power Supply, A-coded
€891.55
per item
0970 PSL 651
LioN-S M8-30, Plastic, PROFIBUS, M12 Bus Connector, B-coded, 8 DI, M12 Power Supply, A-coded
The LioN-S M8-30 from Belden is a high-quality I/O Module designed for demanding industrial environments. Constructed from durable PBT and ASA plastics, this module is robust and reliable, with an IP67 protection rating. It supports the PROFIBUS protocol, which ensures reliable and fast data communication with various devices. With dimensions of 30 mm x 40 mm x 205 mm and a weight of 200 grams, it's compact yet powerful. The module features 8 digital input channels (8 DI) with M8 connectors, capable of handling nominal currents of 5 mA per port. It includes M12 connectors for both bus and power connections, each coded for secure attachment (B-coded for bus, A-coded for power). Additionally, it comes equipped with clear status indicators for system supply and input status, enhancing its diagnostic capabilities. It's suitable for integration into automation systems thanks to its reliable performance in a wide range of operating temperatures (-10 °C to 60 °C) and compliance with EMC and safety standards.
€759.48
per item
