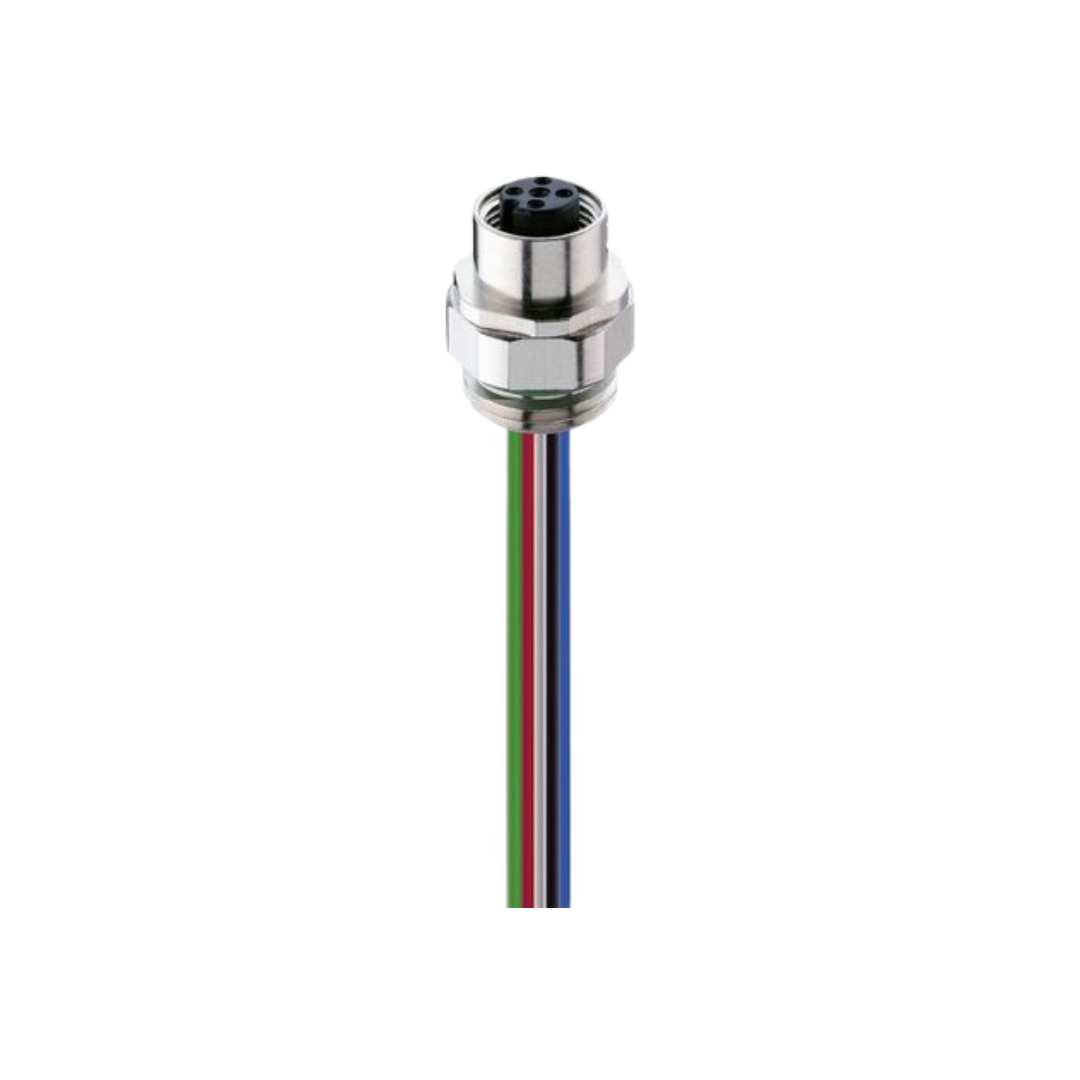

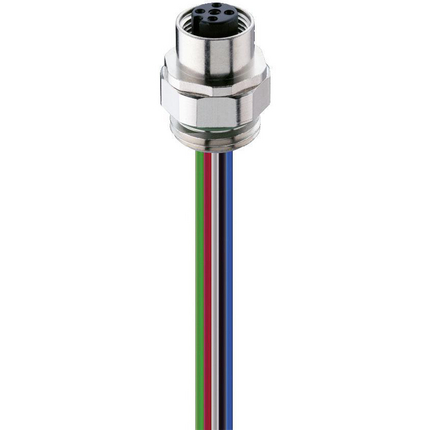

M12 A-coded Female panel mount front

The M12 Standard Sensor/Actuator Receptacle Connector is a 5-pin, A-coded, unshielded connector designed for reliable connection in industrial applications. With a female front mount positionable design, it features an M12 mating side and stranded wires connecting side. The robust metallic grey housing is nickel-plated for enhanced durability and corrosion resistance. This connector supports a rated voltage of 50 V AC / 60 V DC and a rated current of 4 A, making it suitable for various sensor and actuator connections. It is compliant with IP65 and IP67 protection degrees, ensuring it can withstand harsh environments. The connector is easy to install with a screw-locking attachment type and a thread size of M16x1.5. The PVC-insulated wires are color-coded for easy identification and support a wide operating temperature range.
