Populair products

RKMW 5-293/10 M M8 Snap-In Sensor/Actuator Single-Ended Cordset

The M8 Snap-In Sensor/Actuator Single-Ended Cordset is designed for reliable and efficient connectivity. This cordset features a female, angled, 5-pin, B-coded connector with a translucent body, allowing for easy identification and configuration. It operates with 50 V AC / 60 V DC and supports a current of up to 4 A. The cordset comes with a robust black PUR cable containing 5 wires of 0.34 mm² each, ensuring durability and flexibility in various industrial applications. With an IP65 protection rating, it is highly resistant to dust and water ingress, making it suitable for harsh environments. Additionally, the connector is designed with snap-locking for secure attachment, ensuring a stable connection even in demanding conditions. The benefits of the M8 Snap-In Sensor/Actuator Single-Ended Cordset include its ease of use due to the angled design, which provides ergonomic advantages in tight spaces. The 5-pin configuration and B-coded connector ensure precise signaling and power distribution. The high conductivity of the CuZn contacts and the robust insulation resistance of >10^9 Ohm contribute to the longevity and reliability of the connection. This cordset is particularly ideal for sensor and actuator connections in automated machinery, robotics, and industrial processing systems. Its design standard complies with IEC 61076-2-104, ensuring interoperability with other compliant devices. The various lengths available (2m to 25m) provide versatility for different setup requirements.

€32.42 gross, per item

ASBV 8 5-242/20 M ASB with FIXCON connector, 8 ports, double I/O per port

The ASB with FIXCON connector presents a reliable and efficient solution for industrial automation needs. Featuring 8 ports with double I/O per port, this module utilizes M12, 5-poles, A-coded connections. Its robust plastic TPU housing, colored in bright orange, ensures high visibility and durability. The device boasts an IP67 rating, ensuring protection against dust and water ingress, making it suitable for harsh industrial environments. It operates within a temperature range of -15 °C to 80 °C and is CE and RoHS compliant. This connector provides clear status indicators for system supply and port activities via green LEDs. Its actuator supply voltage ranges from 10 V DC to 30 V DC, with a nominal voltage of 24 V DC (SELV/PELV). It supports various input wiring configurations—2-wire, 3-wire, and 4-wire—and accommodates PNP sensor types. For output, it supports 2-wire and 3-wire configurations. Ideal for automation systems, the ASB with FIXCON connector can be employed in diverse applications requiring reliable multi-port interfaces. It is particularly suitable for setups in need of consistent and secure data transmission across multiple devices.

€335.37 gross, per item

0975 254 102/3 M PROFIBUS Data Single-Ended Cordset

The PROFIBUS Data Single-Ended Cordset M12 Standard is a high-quality cable solution for data transmission in industrial applications. The male, straight, 5-pin, B-coded connector ensures reliable connections and optimal signal integrity, enhanced by its shielded construction. This cordset is rated for 50 V AC / 60 V DC and a current of 4 A, capable of handling demanding electrical environments. The cable itself is a robust PUR violet, featuring 2 wires each with a conductor size of 0.34 mm², and is highly resistant to chemicals, oil, and mechanical stress due to its coldness flexibility and halogen-free nature, making it suitable for dynamic and fixed installations alike. Ideal for environments requiring high protection degrees (IP65 and IP67), this cordset meets IEC 61076-2-101 standards and ensures long-term durability and performance in various PROFIBUS installations.

€40.01 gross, per item

PRSMWV 3-06/15 M - 69K M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset

The M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset is designed for high performance and reliability in industrial settings. Featuring a male, angled 3-pin A-coded connector encased in an orange PVC body, this cordset is capable of handling 50 V AC / 60 V DC and up to 4 A. The orange PVC cable is composed of 3 wires with a conductor size of 0.34 mm², offering flexibility with a minimum bending radius for both fixed and flexible installations. Compliant with various safety standards, it boasts IP65, IP67, and IP69K protection ratings, ensuring durability against harsh conditions. Benefits of this connector include its excellent resistance to chemicals and oils, making it suitable for demanding applications. The cordset's design minimizes contact resistance to ≤ 10 mOhm and offers an insulation resistance of ˃ 10⁹ Ohm, ensuring efficient connectivity. Ideal for use in sensor and actuator connections in factory automation, this product promises flexibility and reliability across multiple installations. Available in various lengths, the M8 F&B cordset is a versatile choice for complex industrial setups.

€42.03 gross, per item

RSWT 4-RKT 4-225/1 M Sensor/Actuator Double-Ended Cordset

The Sensor/Actuator Double-Ended Cordset features a male angled, A-coded translucent 4-pin M12 Standard connector paired with a female straight A-coded translucent 4-pin M12 Standard connector. This robust cordset operates at 230 V AC/DC and can handle up to 4 A. The cable is constructed from black PUR, featuring 4 wires with a conductor size of 0.34 mm², ensuring durability and reliable performance in various industrial environments. The connectors are designed for secure and reliable connections, boasting specifications such as IP65, IP67, IP68 (1 m/24 h), and IP69K protection ratings, making it suitable for harsh settings. Its TPU molded body and CuSn contact base material contribute to its resilience and longevity, allowing for up to 100 mating cycles. Additionally, it is unshielded, has a flammability class of UL 94 HB, and complies with IEC 61076-2-101 standards. This cordset is versatile with its applications, including connectivity for sensors and actuators in automation systems, providing a dependable link in high-demand settings.

€24.53 gross, per item

RST 5-RKT 5-259/1 M Sensor/Actuator Double-Ended Cordset

The Sensor/Actuator Double-Ended Cordset features male and female straight A-coded 5-pin M12 connectors, capable of handling 50 V AC / 60 V DC, and a current load of 4 A. The cordset is equipped with a robust PUR orange cable with 5 wires, each having a cross-sectional area of 0.50 mm², ensuring long-lasting durability and reliability in various industrial applications. The unshielded design and high-quality materials used in this cordset provide superior performance, with resistance to environmental stresses like temperature variations, moisture, and chemical exposure. Key benefits include high mechanical resistance allowing over 5 million bending and torsion cycles, along with excellent resistance to microbe and hydrolysis. This cordset is ideal for connecting sensors and actuators in demanding industrial environments, providing safe and secure transmission of signals and power.

€31.87 gross, per item

GDM 3011-7 sw GDM - 175301-803 (DIN 43650)

The GDM - 175301-803 (DIN 43650) is a versatile gasket designed to meet the demanding requirements of various industrial applications. Form A, with an 18mm diameter, this product is engineered from high-quality steel and features a PA Knurled Head. Its robust composition ensures optimal performance, making it suitable for use with select Form A field attachable females. The product is part of the Valve Connectors family, specifically designed as a Field Attachable Accessory, ensuring compatibility and reliability. Its ambient operating temperature ranges between -55° C to +125° C, demonstrating its resilience under extreme conditions. The attachment type is M 3 x 35, and it features a fastening torque (Contact Screw) of 30 - 40 Ncm. This product is RoHS compliant and halogen-free, making it both safe and environmentally friendly.

€3.47 gross, per item

VCD 1B-1-3-226/10 M VCD 1B-1-3-226

VCD DIN Standard Single-Ended Cordset: Form C, 4-pin (2+2PE), translucent body, with supressor diode and yellow LED, 24 V AC/DC, 4 A; PUR black cable, 0.50 mm²

€28.50 gross, per item

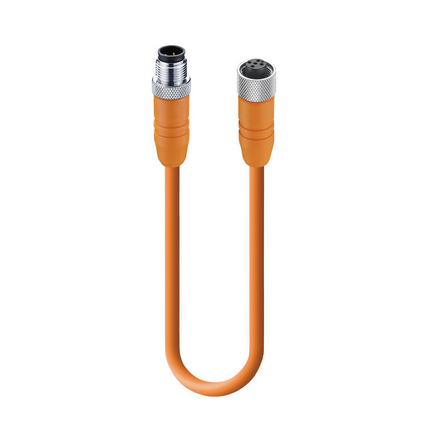

RSTS 5-RKTS 5-183/1 M Sensor/Actuator Double-Ended Cordset

The Sensor/Actuator Double-Ended Cordset is equipped with a male straight A-coded orange 5-pin M12 Standard connector on one end and a female straight A-coded orange 5-pin M12 Standard connector on the other. It is shielded and designed for optimal performance with a voltage capacity of 50 V AC / 60 V DC and a current rating of 4 A. The durable PVC orange cable features 5 wires, each with a conductor size of 0.34 mm², and offers excellent flexibility and reliable connectivity. Rated for up to 100 mating cycles, this cordset is ideal for applications requiring robust connections in industrial environments. Compliant with IEC 61076-2-101, this product ensures protection up to IP67 when properly mated. The PVC cable is not only oil and chemical resistant but also free from silicone, making it suitable for demanding conditions.

€43.05 gross, per item
