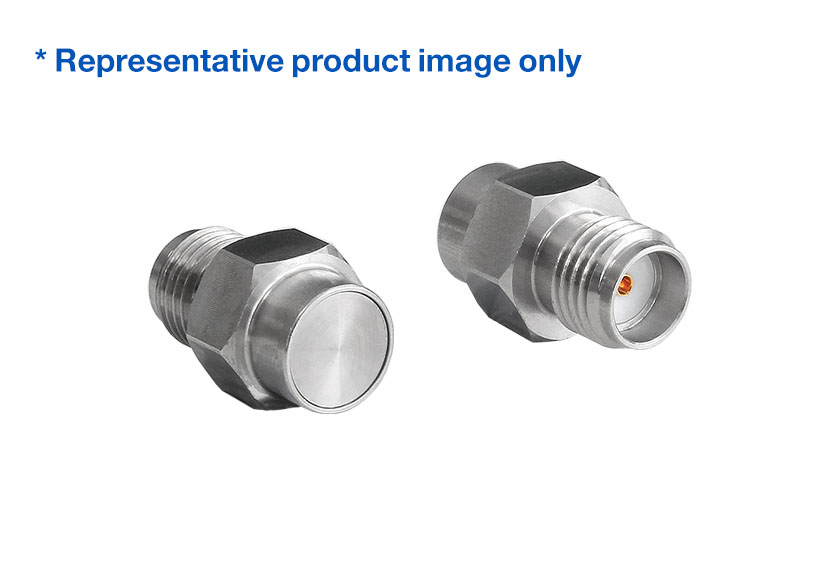

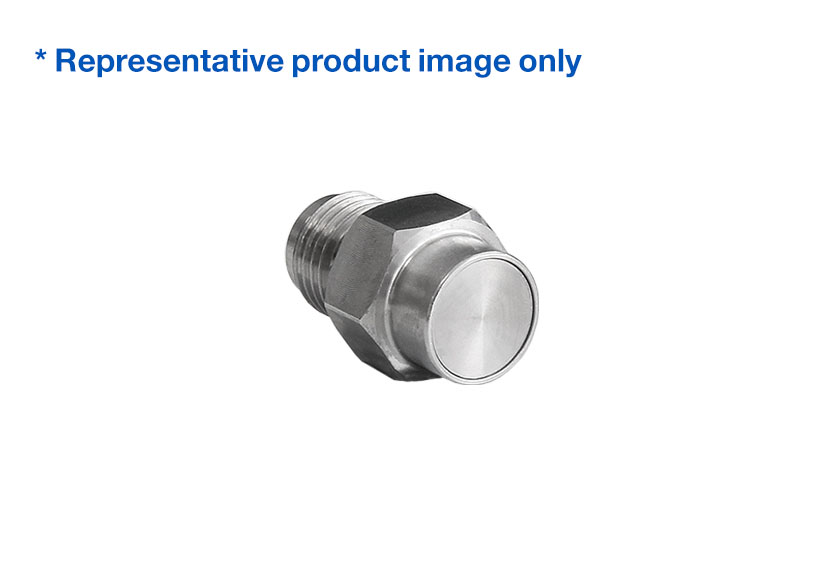

SMA Jack Termination (2W)
€103.38*
Prices excl. VAT plus shipping costs
Article number:
RFTERMSMAJ2W
Manufacturer number:
RFTERMSMAJ2W
Brand:
Bulgin
Minimum order quantity:
25
Datasheet (EN)Specifications
| Average Power: | < 2W |
|---|---|
| Operating Temperature (min.): | -65°C |
| Thread Size: | 1/4 36UNS 2A |
| Voltage (max.): | 335V |
| VSWR: | < 1.20 |
| Operating Frequency (min.): | 0GHz |
| Operating Temperature (max.): | +165°C |
| Body Length: | 12.20mm |
| Body Material: | Stainless Steel Passivation |
| Centre Contact Retention Force: | >26.7N |
| Contact Pin Material: | Beryllium Copper |
| Dielectric Withstanding Voltage: | >750V |
| Durability: | >500 cycles |
| Function: | Female RF Termination |
| Impedance: | 50Ohm |
| Insulation Resistance: | >5000MOhm |
| Insulator: | Adapter ASTM D 1710 |
| Operating Frequency (max.): | 18GHz |
| Unique No.: | blgRFTERMSMAJ2W |
