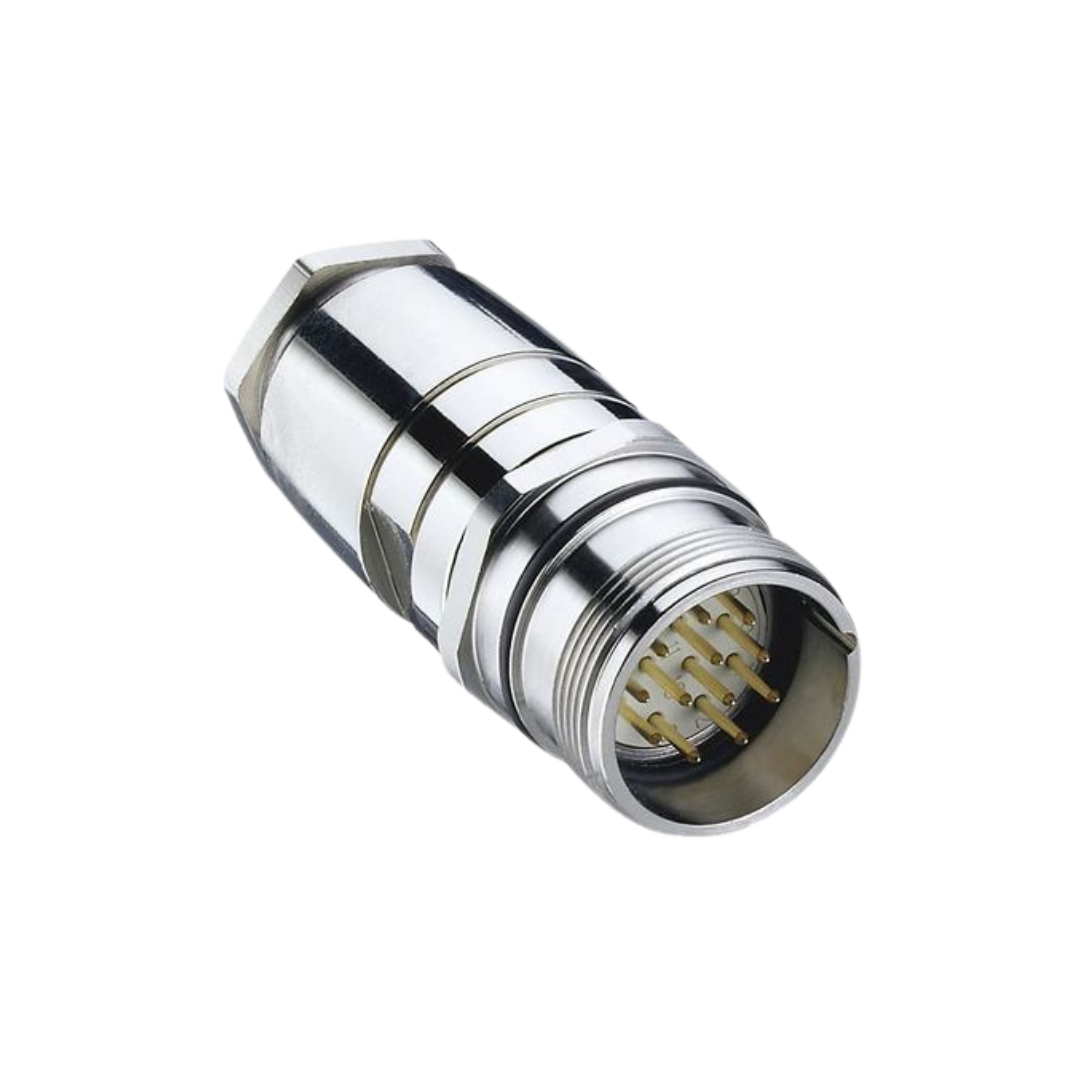

M23 Series
Designed to combine signal and power in one compact, rugged solution for industrial use.

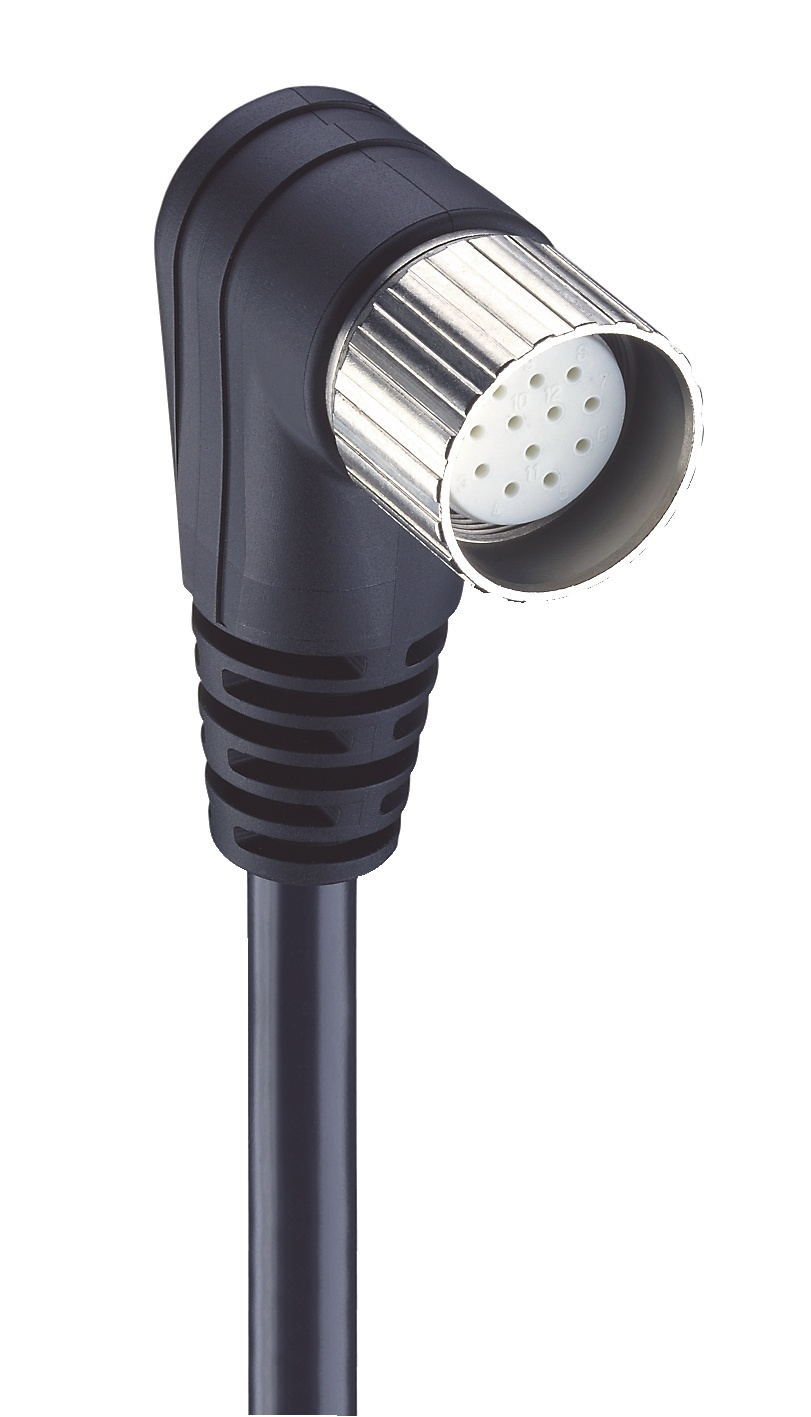

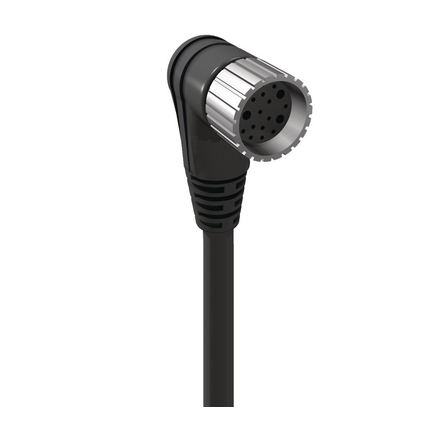

RKWU 19-242/20 M
M23 Power Single-Ended Cordset
The M23 Power Single-Ended Cordset is designed for robust and efficient power connectivity needs. Featuring a female, angled connector with 19 pins, this cordset is capable of handling 120 V AC/DC with a current rating of 16x8 A plus 3x10 A. The black body is made of durable materials, ensuring longevity and reliability in diverse environments. This cordset comes equipped with a PUR black cable, composed of 16x0.5 mm² and 3x1.0 mm² conductors, providing both strength and flexibility. Additionally, it includes a coupling nut attachment type, ensuring a secure and firm connection. The M23 Power Single-Ended Cordset offers IP67 protection, making it suitable for use in challenging conditions. Ideal for applications requiring high power and robust connections, such as industrial automation, machinery, and power distribution systems. This cordset is compliant with RoHS and various environmental standards, ensuring safe and eco-friendly operation.
€252.02
per item

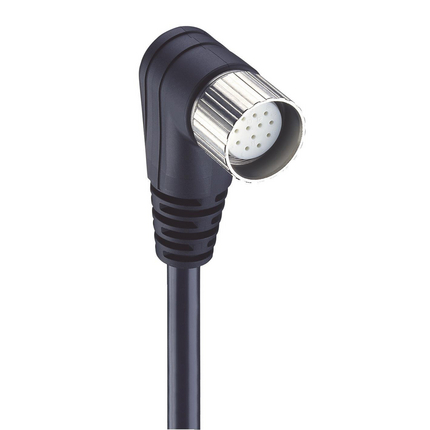

RKWU 12-256/25 M
M23 Power Single-Ended Cordset
The M23 Power Single-Ended Cordset is a high-quality connector designed for robust performance and reliability in power applications. Featuring a female, angled, 12-pin design with a sturdy black body, this cordset supports 120V AC/DC and a maximum current of 8A. It is equipped with a durable PUR black cable, composed of 8x0.5 mm² and 3x1.0 mm² conductors, ensuring reliable power transmission and minimal signal loss. Rated to withstand ambient operational temperatures ranging from -25°C to +80°C, this cordset is ideal for diverse environmental conditions. With an IP67 protection rating, it is highly resistant to dust, water, and pollution. The quality materials used in construction, including CuSn and CuZn contacts plated with Cu/Au, assure long-lasting durability and reliable connections. This cordset is perfect for industrial and automation applications where consistent performance and environmental resilience are paramount. It is available in various lengths, ensuring flexibility to meet specific installation requirements.
€219.33
per item
RKWUE 19-242/5 M
M23 Power Single-Ended Cordset
The M23 Power Single-Ended Cordset is designed for demanding power applications. It features a female, angled 19-pin (18+PE) connector, capable of operating at 120 V AC/DC with a current rating of 16x8 A for pin Ø 1 mm and 2x10 A for contact Ø 1.5 mm. This cordset is constructed with a strong black PUR cable, comprising 16x0.5 mm² and 3x1.0 mm² conductors, ensuring durability and flexibility in various installation scenarios. The connector includes a grounded coupling nut, is rated IP67 for dust and water protection, and withstands temperatures from -25°C to +80°C in flexible installations.
€115.53
per item

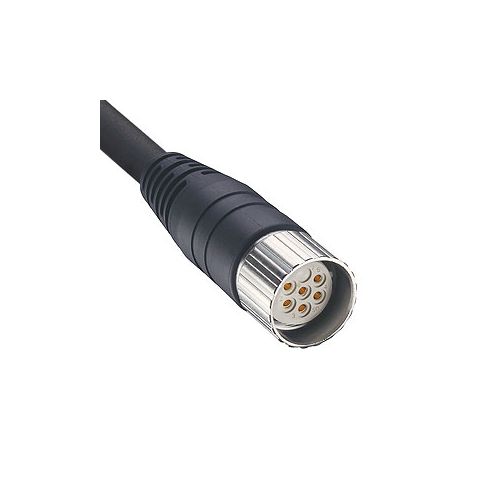

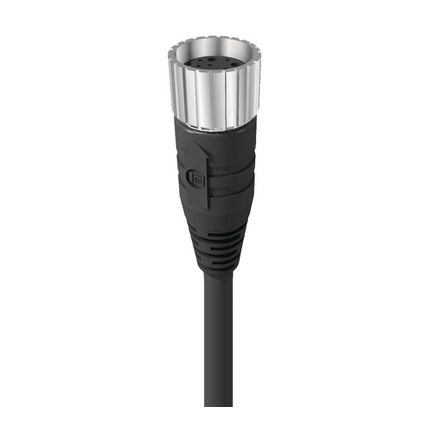

RKU 19-355/10 M
M23 Power Single-Ended Cordset
The M23 Power Single-Ended Cordset is designed for robust and reliable power connections in demanding environments. Featuring a female, straight connector with 19 pins, this cordset supports 120 V AC/DC operation. The black body is composed of high-quality TPU and PA 66 materials, ensuring durability and longevity. With a PUR grey cable that includes 16x0.5 mm² and 3x1.0 mm² conductors, this cordset is well-suited for applications requiring a high degree of flexibility and environmental resistance.
The cordset is rated for currents of 16x8 A and 3x10 A, providing strong performance capabilities. It also boasts a protection degree of IP67, making it highly resistant to dust and water ingress when properly mounted and locked with compatible connectors. The connector’s materials, such as CuSn and CuZn contacts plated with gold, offer excellent electrical conductivity and resistance to corrosion.
This cordset is ideal for industrial automation, machinery, and various power distribution tasks. It is designed to handle both fixed and flexible installations, supporting a wide temperature range from -50°C to +80°C in fixed settings. The compact and reliable design makes it suitable for tight spaces and high-density installations.
€177.50
per item

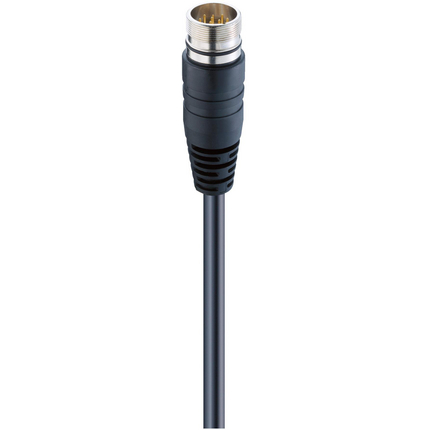

RSUF 19-242/15 M
M23 Power Single-Ended Cordset
The M23 Power Single-Ended Cordset is a high-performance connector designed for secure and efficient power transmission. Featuring a straight, 19-pin male connector in a robust black body, it supports both AC and DC currents at 120 V. The cordset is equipped with a high-resistance PUR black cable, consisting of 16 wires of 0.5 mm² and 3 wires of 1.0 mm², ensuring reliable and stable electrical conduction.
This cordset is engineered for durability and efficiency. It can handle currents of up to 16 x 8 A and 3 x 10 A, making it ideal for various power-intensive applications. With a rated impulse voltage of 1.5 kV and an IP67 protection rating, it ensures excellent insulation resistance and reliability under harsh conditions. The materials used, including the CuZn contact base material and TPU molded body, contribute to its robustness and longevity.
Ideal for industrial automation and machinery, the M23 Power Single-Ended Cordset is suitable for environments requiring high power transmission. It is perfect for use in settings where equipment must withstand rigorous operational conditions, maintaining stability and performance across various temperatures and mechanical stresses. The cordset is available in multiple lengths, ensuring flexibility for different installation needs.
€207.86
per item
RKU 19-242/20 M
M23 Power Single-Ended Cordset
The M23 Power Single-Ended Cordset is a robust and versatile connector solution designed for demanding industrial environments. This cordset features a straight, 19-pin female connector housed in a durable black body. It is engineered to handle 120 V AC/DC with a current rating of 16x8 A and 3x10 A. The cordset is equipped with a PUR black cable, which comprises 16 wires of 0.5 mm² and 3 wires of 1.0 mm², ensuring reliable power transmission and minimal signal interference.
Benefits of this product include its high insulation resistance (>10^9 Ohm), robust build with an IP67 rating for water and dust protection, and a wide operating temperature range from -25°C to +80°C. The materials used, such as PA 66 and TPU, offer excellent durability and flammability resistance (UL 94-HB).
This cordset is ideal for applications in automation, machinery, and manufacturing where reliable power connections are crucial. Its unshielded design is perfect for environments where external shielding is not necessary, and its coupling nut attachment ensures a secure and stable connection.
€252.02
per item

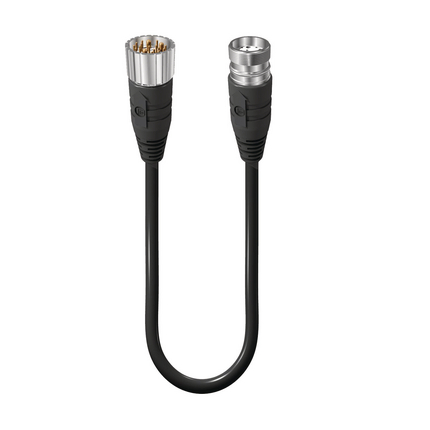

RSU 12-RKUF 12-256/5 M

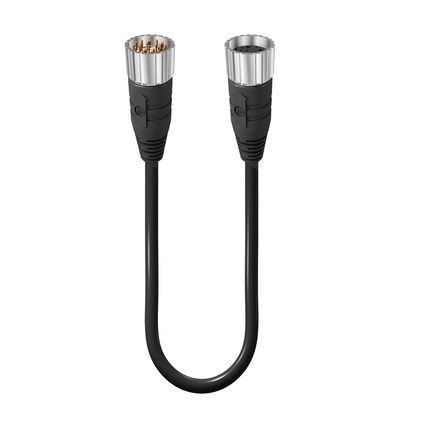

M23 Power Double-Ended Cordset
The M23 Power Double-Ended Cordset, designed by Lumberg Automation, is a highly reliable and durable connection solution for power applications. This cordset features a male straight to female straight design with 12 pins, making it suitable for various industrial and automation environments. The cordset operates at 120 V AC/DC with an 8 A rated current, ensuring efficient power transmission. The black body and black PUR cable provide an extra layer of protection and durability, while the cable composition of 8x0.5 mm² and 3x1.0 mm² conductors guarantees secure and stable connections.
This product offers several benefits, including high insulation resistance (> 10^9 Ohm), IP67 protection rating, and a broad ambient operating temperature range from -25°C to +80°C. The robust construction using materials like CuZn, Cu/Au plating, and TPU ensures long-lasting performance even in demanding conditions. Additionally, the cordset meets safety and environmental compliance standards, including RoHS, offering peace of mind for safe and eco-friendly applications.
The M23 Power Double-Ended Cordset is ideal for applications requiring reliable power connections in industrial automation, machinery, robotics, and other heavy-duty environments. Its excellent performance, dependability, and compliance with stringent standards make it an essential component for ensuring uninterrupted and efficient power supply.
€97.68
per item
RSUF 19-RKWU 19-S4740/12 M
M23 Power Double-Ended Cordset
The M23 Power Double-Ended Cordset, featuring a straight male to angled female configuration, provides reliable and efficient connectivity for your power needs. This 19-pin connector supports a 120 V AC/DC voltage and current ratings of 16x8 A and 3x10 A, making it suitable for demanding industrial applications. The cordset is enclosed in a durable TPE yellow cable with wire insulation of PP, ensuring both flexibility and longevity. Rated IP67 for protection, the connector is built to withstand harsh environments with operating temperatures ranging from -25°C to +80°C. Its excellent insulation resistance and robust construction using CuZn and FKM materials ensure long-term performance and reliability. The cable is available in several lengths, providing versatility for various installations.
€273.92
per item
RSUF 19-RKWU 19-355/15 M
M23 Power Double-Ended Cordset
The M23 Power Double-Ended Cordset is designed with a male straight to female angled configuration, supporting 19-pin connections. It operates effectively at 120 V AC/DC with pin configurations of 16x8 A and 3x10 A. The product's body is black with a high-resistance PUR grey cable measuring 16x0.5 mm² + 3x1.0 mm². This cordset offers reliable performance under demanding conditions with notable features including a rating of IP67, high insulation resistance of ˃10^9 Ohm, and a robust operating temperature range from -25°C to +80°C. Its durable cable jacket is made of PUR material, ensuring excellent coldness flexibility and resistance to microbes and hydrolysis. Applications range widely from industrial automation to high-power electrical systems where resilient and reliable connectivity is essential.
€289.55
per item

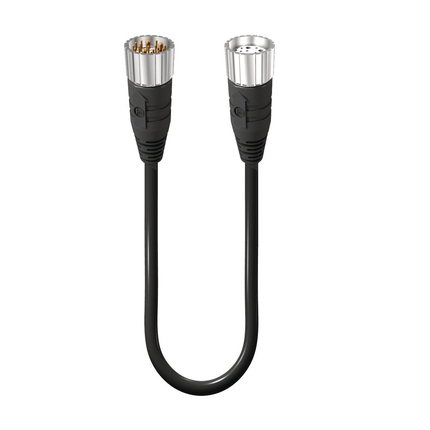

RSU 19-RKU 19-242/6 M
M23 Power Double-Ended Cordset
The M23 Power Double-Ended Cordset is a robust and reliable solution for power connections, characterized by its male straight to female straight, 19-pin configuration. This black-bodied cordset is compatible with 120 V AC/DC operations and supports a current rating of 16x8 A and 3x10 A, making it ideal for demanding electrical applications. The cordset is equipped with a PUR black cable, featuring conductors of 16x0.5 mm² and 3x1.0 mm². Its M23 Power connectors, constructed with high-quality materials like CuZn and PA 66, ensure durability and longevity. The cordset is rated IP67, underlining its resistance to dust and water, and can operate in temperatures ranging from -25°C to +80°C. This product is suitable for use in various industrial environments where secure and robust power connections are required.
€163.94
per item
RKUS 19-352/20 M
M23 Power Single-Ended Cordset
The M23 Power Single-Ended Cordset is a high-quality female, straight 19-pin connector designed for industrial applications. Featuring a durable TPU black cable, it operates at 120 V AC/DC with a current rating of 16x8 A and 3x10 A. The cordset is shielded and boasts a robust design with an IP67 protection rating, ensuring it is highly resistant to environmental factors. It is suited for both fixed and flexible installations, making it versatile and reliable across various operational environments.
€343.25
per item
RKUE 19-242/5 M
M23 Power Single-Ended Cordset
The M23 Power Single-Ended Cordset is a reliable and robust connectivity solution designed for power applications, featuring a 19-pin female connector with a straight configuration. It operates at 120 V AC/DC and supports current ratings of 16x8 A and 2x10 A. The cordset is equipped with a high-quality PUR black cable, which houses 16x0.5 mm² and 3x1.0 mm² conductors. This durable cable ensures optimal performance, longevity, and resistance to harsh environments. The connector incorporates a grounded coupling nut for secure attachment, and it meets IP67 protection standards when properly mounted with a matching connector. The materials used, such as CuZn with Cu/Au plating for contacts, and a black TPU molded body, provide excellent durability and resistance to environmental conditions.
€115.53
per item
RSUF 19-RKWU 19-355/20 M
M23 Power Double-Ended Cordset
The M23 Power Double-Ended Cordset offers a reliable and efficient solution for power connectivity needs. Featuring a male straight to female angled design, this 19-pin connector is encased in a robust black body suitable for industrial environments. It operates at 120 V AC/DC, making it versatile for various applications. The PUR grey cable, with dimensions of 16x0.5 mm² + 3x1.0 mm², guarantees durability under harsh conditions, including a wide temperature range and high resistance to microbes and hydrolysis. The cordset supports a rated current of 16x8 A and 3x10 A, ensuring sufficient power transmission for demanding applications.
€377.04
per item
RKWU 19-242/5 M
M23 Power Single-Ended Cordset
The M23 Power Single-Ended Cordset is a high-performance electrical connector designed for demanding applications. Featuring a female, angled 19-pin configuration encased in a robust black body, this connector supports 120 V AC/DC, with current ratings of 16x8 A and 3x10 A. The cordset comes with a PUR black cable, containing 16x0.5 mm² and 3x1.0 mm² conductors, ensuring reliable performance in both fixed and flexible installations. It is rated IP67 for protection against dust and water ingress when properly mounted, making it suitable for industrial environments. The durable construction and high-quality materials ensure longevity and stable connections. This cordset is ideal for powering industrial equipment, machinery, and automated systems, providing efficient and safe electrical connectivity.
€113.30
per item
RSUS 19-RKUS 19-352/20 M
M23 Power Double-Ended Cordset
The M23 Power Double-Ended Cordset is designed with a male straight to female straight configuration, featuring 19-pins for reliable connections. The cordset boasts a shielded black body that ensures protection against interference, making it suitable for various demanding environments. This specific model supports 120 V AC/DC with 16x8 A + 3x10 A current ratings, making it highly efficient for power transmission. The TPU black cable ensures durability and flexibility, with conductor sizes of 16x0.5 mm² and 3x1.0 mm², providing significant versatility for different installation needs. With an IP67 protection rating, this cordset is highly resistant to dust and water, ideal for industrial applications. Additionally, the cordset's high insulation resistance and operational temperature range from -25°C to +80°C offer exceptional reliability and safety.
€403.80
per item
RKWU 19-242/2 M
M23 Power Single-Ended Cordset
The M23 Power Single-Ended Cordset is designed with a female, angled connector and a 19-pin configuration, offering robust and reliable performance for various power transmission applications. Encased in a black body, this cordset operates efficiently at 120 V AC/DC. With current ratings of 16 x 8 A and 3 x 10 A, it ensures a stable and powerful connection. The PUR black cable features 16x0.5 mm² and 3x1.0 mm² conductor sizes, providing excellent conductivity and flexibility. Rated for an insulation resistance of "> 10^9 Ohm" and capable of handling ambient temperature operation from -25°C to +80°C, it displays high resistance to wear and durability, making it suitable for both fixed and flexible installations. The IP67 protection rating ensures the cordset is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes. Applications extend to a variety of industrial settings where reliable power transmission is critical.
€94.52
per item
RKWU 19-242/40 M
M23 Power Single-Ended Cordset
The M23 Power Single-Ended Cordset is a durable and reliable power connector designed for various industrial applications. Featuring a female, angled 19-pin configuration, this cordset operates at 120 V AC/DC and supports currents of 16x8 A and 3x10 A. The black PUR cable comprises 16x0.5 mm² + 3x1.0 mm² wires, ensuring robust performance and flexibility. The cordset's black body is constructed with high-quality materials including a TPU molded body and PA 66 contact bearer, both rated UL 94-HB for flammability. It offers a protection degree of IP67, ensuring resilience in demanding environments. Ideal for power distribution, this cordset supports operations in temperatures ranging from -25°C to +80°C.
€394.94
per item

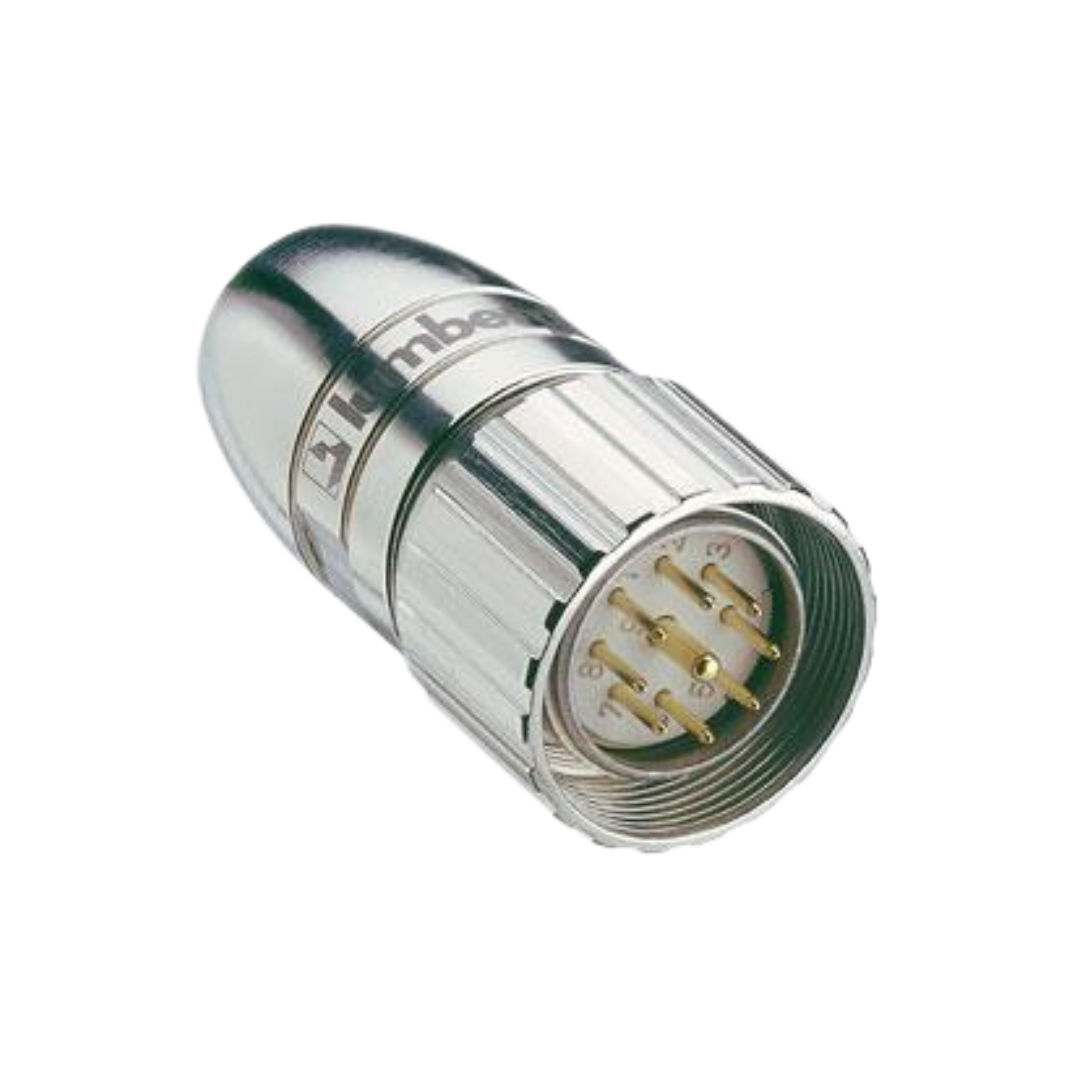

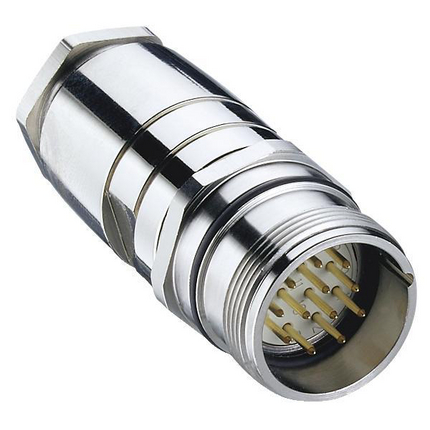

RSC-F-190/13,5
M23 Power Field Attachable Connector
The M23 Power Field Attachable Connector is a robust field attachable power connector designed for reliable and efficient performance. This male, straight connector comes with 19 pins, encased in a durable silver housing. It has an operating voltage of 120 V AC/DC and allows for a maximum current rating of 16 x 8 A for 1 mm pins and 3 x 10 A for 1.5 mm contacts. The connector is designed for easy soldering connections and can accommodate cables with a diameter ranging from 10 mm to 14 mm. With an insulation resistance greater than 10^9 Ohm and a protection degree of IP65, it ensures safe and secure connections. The robust construction with CuZn/Ni housing material further enhances its durability, making it suitable for various industrial applications. Its operational temperature ranges from -40°C to +70°C, providing flexibility in different environmental conditions. Compliance with RoHS standards ensures it meets environmental and safety guidelines, making it a reliable choice for power connection needs.
€64.79
per item

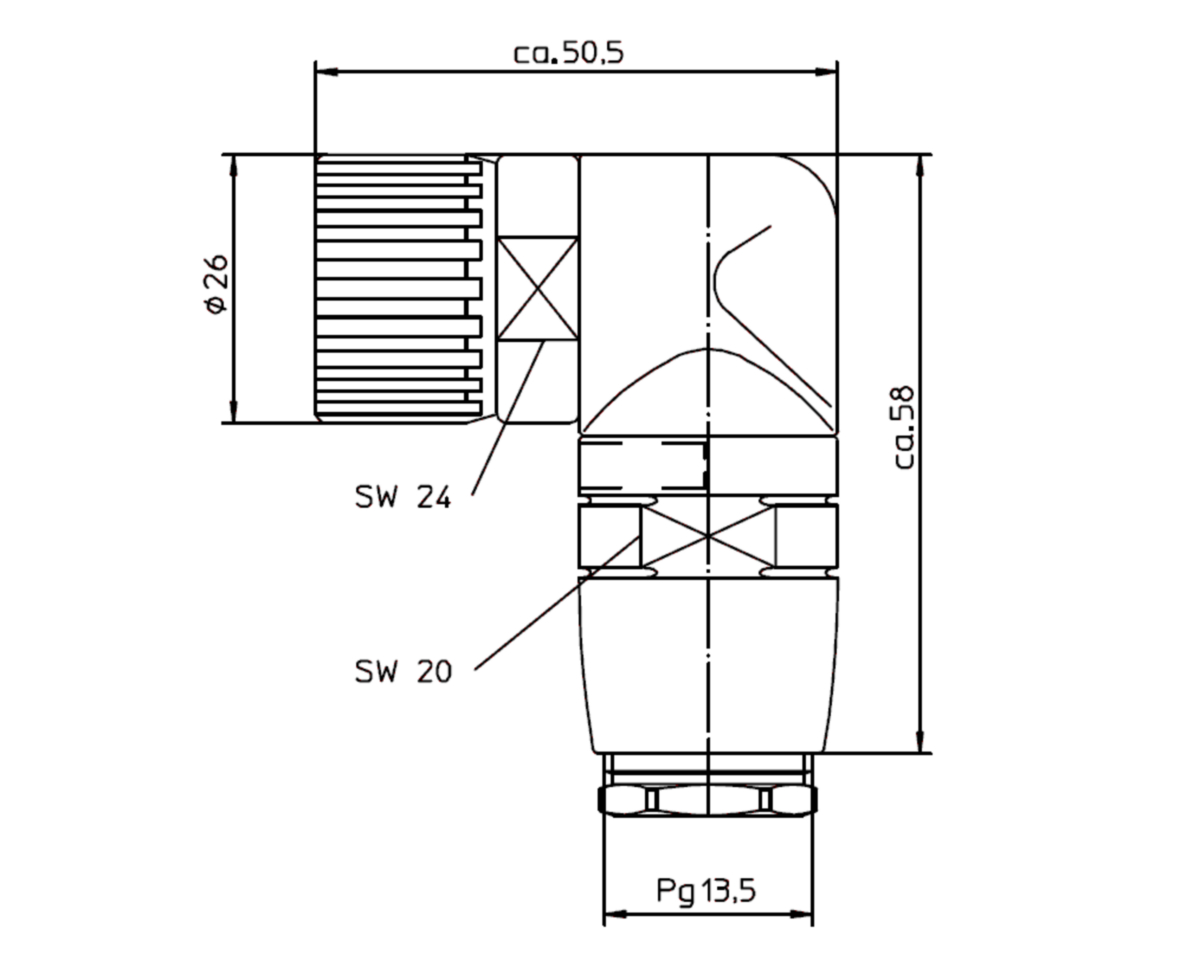

RSCW 190/13,5
M23 Power Field Attachable Connector
M23 Power Field Attachable Connector: Male, angled, 19-pin, silver housing, 120 V AC/DC
€84.84
per item
