M8 Series
Discover our M8 Series: robust and space-efficient connectors for high-demand industrial automation.
Filter
–
Need advice?
Can’t find the product you're looking for or need advice? Contact us!
Get expert advice

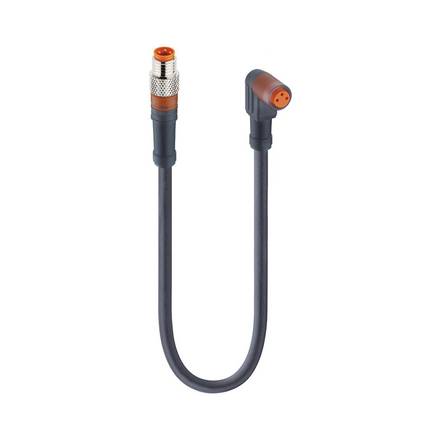

RSMV 3-RKMW 3-294/3 M
Sensor/Actuator Double-Ended Cordset
The Sensor/Actuator Double-Ended Cordset is designed to link sensors and actuators in industrial environments. It features a male straight A-coded translucent 3-pin M8 Standard connector and a female angled A-coded translucent 3-pin M8 Snap-In connector. With a voltage rating of 50 V AC / 60 V DC and a current rating of 4 A, this cordset ensures robust and reliable connections. The black PVC cable, 0.34 mm² with 3 wires, provides flexibility and durability, making it suitable for a wide range of applications. The cordset is also designed to meet high standards, such as IP65 and IP67 ratings for protection against dust and water. Its resistance to chemicals and oils makes it ideal for use in harsh industrial conditions. The cordset is unshielded and includes high-quality materials such as CuSn for contact base material and TPU for the contact bearer, ensuring long-lasting performance.
€22.83
per item
RSMV 3-RKMV 4-224/0,3 M
Sensor/Actuator Double-Ended Cordset
The Sensor/Actuator Double-Ended Cordset offers a robust connection solution with a 3-pin male straight A-coded translucent M8 connector to a 4-pin female straight A-coded M8 connector. Designed to handle up to 30 V AC/DC and a current of 4 A, it ensures reliable power and data transmission in various industrial applications. Constructed with a black PUR cable and copper materials, its durability is ideal for environments requiring high-resistant components against chemicals and oils. With an IP65, IP67, and IP69K protection rating, it withstands harsh conditions, making it ideal for automation systems, sensor connections, and actuator interfaces.
€20.15
per item

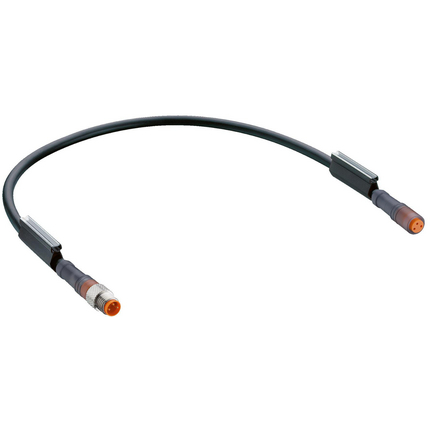

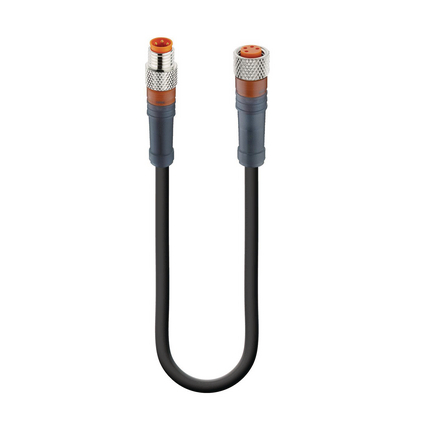

RSMV 3-RKM 3-224/1 M
Sensor/Actuator Double-Ended Cordset
The Sensor/Actuator Double-Ended Cordset is designed with a male straight A-coded translucent 3-pin M8 Standard connector, connected to a female straight A-coded translucent 3-pin M8 Snap-In connector. It operates at 50 V AC or 60 V DC and has a current rating of 4 A. The robust PUR black cable comprises 3 wires of 0.34 mm² each, providing reliable connectivity in various industrial environments. This cordset supports less than 10 mOhm contact resistance and greater than 10^9 Ohm insulation resistance, ensuring minimal signal interference and high durability. It meets protection standards IP65, IP67, and IP69K, making it resistant to dust and water. Key applications include automation systems where secure and stable sensor/actuator interfaces are essential.
€20.61
per item

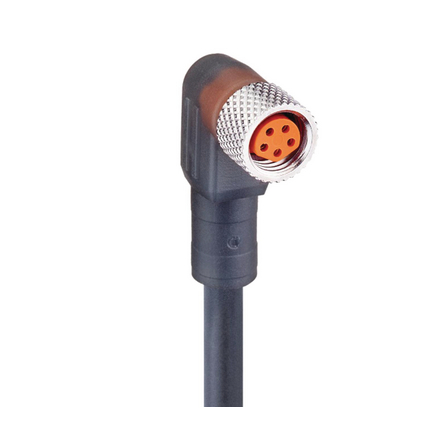

RKMWV 5-506/15 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is designed to provide reliable and efficient connectivity for sensor and actuator applications. This cordset features a 5-pin, B-coded female connector at an angle, housed in a translucent body. It supports an operating voltage of 50 V AC / 60 V DC and a current rating of 3 A. The cordset is constructed with a durable PUR black cable, consisting of 5 wires each with a conductor size of 0.25 mm².
Benefits of this cordset include its robust design which ensures high-level performance under various installation conditions, given its IP65, IP67, and IP69K ratings. The contact materials and plating provide excellent electrical conductivity and resistance to corrosion, ensuring long-term reliability.
This cordset is ideal for use in industrial automation settings, particularly where space constraints might necessitate the use of an angled connector. Suitable for environments with temperatures ranging from -40 °C to +90 °C, this cordset is designed for versatile applications including fixed, flexible, and drag chain installations.
€39.75
per item

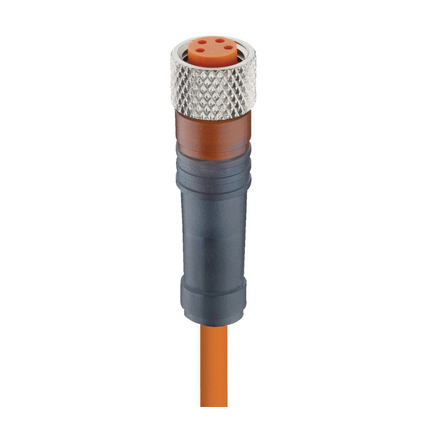

RKMV 4-225/25 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is an essential solution for reliable connections in industrial applications. This cordset features a female, straight, 4-pin, A-coded translucent body that can handle 30 V AC/DC and 4 A of current. It comes with a robust, black PUR cable featuring 4 wires each of 0.34 mm². The cordset is designed to operate in harsh environments, offering high resistance to microbes and hydrolysis and a wide temperature range from -40 °C to +90 °C. The contact base material made from CuSn and Cu/Au plating ensures excellent conductivity, while the TPU molded body and attachment material with nickel-plating enhances durability. The cordset boasts a high protection degree of IP65, IP67, IP69K, making it suitable for various applications requiring waterproof and dustproof characteristics.
€49.37
per item

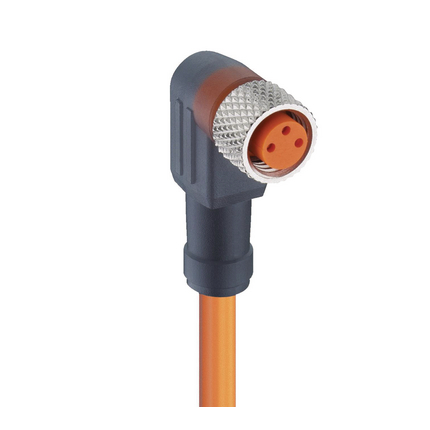

RKMWV/LED A 3-260/5 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is a high-quality, reliable connector designed for demanding industrial applications. This cordset features a female, angled, 3-pin A-coded design with a translucent body. It operates at 10-30 V DC and can handle currents up to 4 A. The unit is fitted with a PUR orange cable, consisting of 3 wires of 0.34 mm² each, ensuring flexibility and durability. Additionally, it is equipped with two LEDs (PNP) for clear status indication. The connector is unshielded and constructed with robust materials, including CuZn attachment plating with nickel and a TPU molded body. Rated for an ambient temperature range of -40°C to +90°C, this cordset offers excellent operational reliability even in harsh environments. The IP65, IP67, and IP69K protection ratings ensure resistance against dust, water, and high-pressure cleaning, making it ideal for use in various industrial automation scenarios. With a compatibility standard of IEC 61076-2-104, this cordset is a dependable choice for connecting sensors or actuators efficiently.
€29.41
per item
RKMW 5-671/25 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is a high-quality connector designed for various industrial applications. This cordset features a female, angled, 5-pin configuration with B-coding and a translucent body. It supports an operating voltage of 50 V AC / 60 V DC and a current rating of 4 A. The attached PVC black cable has 5 wires and a conductor size of 0.34 mm², ensuring dependable electrical transmission with minimal resistance (≤ 10 mOhm) and high insulation resistance (˃ 10^9 Ohm). The cordset is unshielded, features a snap-locking attachment type, and conforms to the IEC 61076-2-104 design standard.
€46.58
per item
RKM 4-225/1,35 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is a high-quality connection solution designed for optimal performance in industrial automation settings. The cordset features a female, straight, 4-pin A-coded connector with a translucent body, suitable for applications up to 30 V AC/DC and 4 A. The PUR black cable is designed with four wires of 0.34 mm² each, ensuring reliable and efficient signal transmission.
One of the main benefits of this cordset is its durability and robust construction. The molded body and contact bearer are made from thermoplastic polyurethane (TPU), which provides excellent resistance to environmental stresses such as extreme temperatures, mechanical wear, and chemical exposure. The cable is black matte, similarly to RAL 9005, offering good flexibility and resistance to microbes and hydrolysis.
This cordset is well-suited for various industrial applications, including sensor and actuator connections in automation systems. Its IP65 rating ensures reliable performance in harsh environments, and the snap-locking mechanism offers secure and easy installation. The cordset is compatible with UL 2238 standards and provides excellent contact resistance, making it a reliable choice for demanding applications.
€11.23
per item

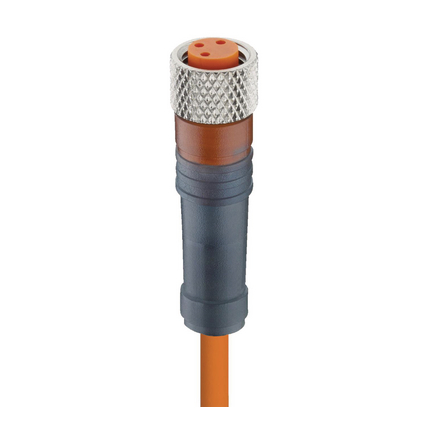

RKMV 3-06/1 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is a high-quality female, straight, 3-pin, A-coded connector. Designed with a sturdy and translucent body, it can handle 50 V AC / 60 V DC and a current rating of 4 A. The cordset features a durable orange PVC cable with 3 wires and a conductor size of 0.34 mm², offering great performance for a wide range of applications. It is ideal for industrial environments and automation systems that demand reliable connectivity.
€9.21
per item

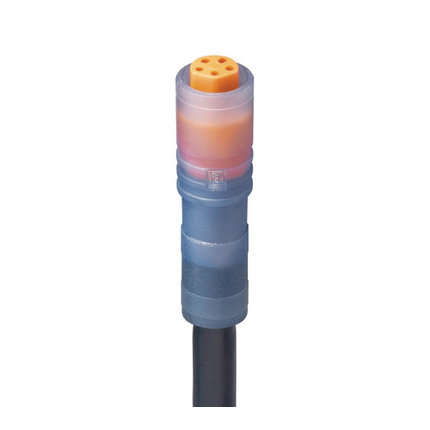

RKM 5-671/10 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is a versatile connector solution ideal for various applications. This female, straight connector features a 5-pin, B-coded design with a translucent body capable of operating at 50 V AC / 60 V DC and handling up to 4 A of current. The connection is secure and reliable, thanks to the snap-locking mechanism. The black PVC cable is equipped with five wires, each with a conductor size of 0.34 mm², and has excellent flexibility and durability. These cordsets are unshielded and can withstand ambient temperatures ranging from -40°C to 90°C, making them suitable for challenging environments. With an IP65 protection degree, the cordsets offer resistance to dust and water, ensuring longevity and performance.
€26.07
per item
RSM 3-224/0,3 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is an ideal solution for various industrial connectivity requirements. Featuring a male, straight, 3-pin A-coded connection, this cordset provides a reliable and secure attachment with its translucent body. Designed to handle up to 50 V AC / 60 V DC and 4 A, it ensures effective power transfer in demanding conditions. The black polyurethane (PUR) cable with 0.34 mm² conductors offers durability and flexibility, supporting a wide range of installations. With an IP65/IP67 rating, it ensures high protection against dust and water, making it suitable for harsh environments. Applications range from sensor and actuator connection to automation systems, ensuring efficient signal and power transmission. This cordset meets IEC 61076-2-104 standards and ensures compliance with various safety and environmental regulations, making it a reliable choice for robust industrial applications.
€12.07
per item

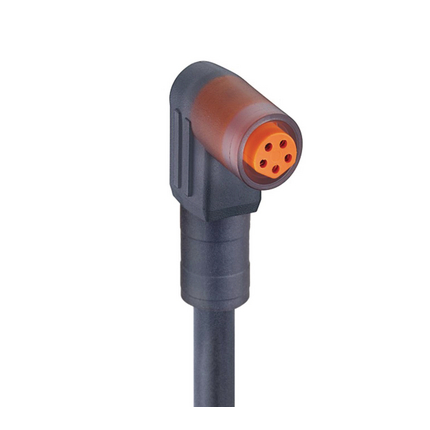

RKMW 5-506/10 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is designed with precision and reliability in mind. This female, angled, 5-pin, B-coded connector features a translucent body, operating at voltages up to 50 V AC or 60 V DC and supporting a current of up to 3 A. The cordset includes a robust black PUR cable with five wires, each having a conductor size of 0.25 mm². The design adheres to IEC 61076-2-104 standards, ensuring excellence in performance.
The benefits of this cordset include exceptional durability and versatility, making it ideal for demanding industrial environments. The connector is rated at IP65, offering protection against dust and water ingress. With a mating cycle rating of 100 and a temperature range from -40°C to +90°C, the cordset is well-suited for a variety of conditions.
Applications are extensive, primarily in sensor and actuator connectivity within industrial settings. The snap-locking mechanism ensures secure connections, while its compact, angled design allows for use in space-limited areas. It's ideal for applications requiring reliable data and power transmission.
€30.75
per item

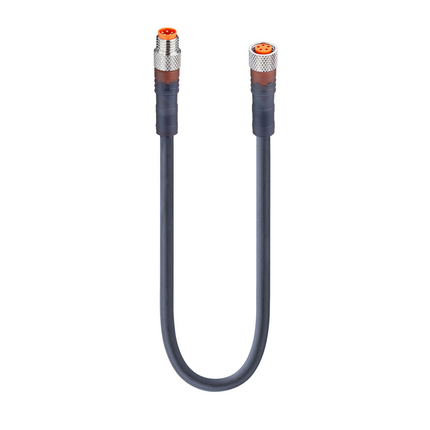

RSMV 5-RKMV 5-506/0,6 M
Sensor/Actuator Double-Ended Cordset
The Sensor/Actuator Double-Ended Cordset is a high-quality connection solution for industrial environments. It features a male straight B-coded translucent 5-pin M8 standard connector on one end and a female equivalent on the other. Designed for reliable performance, this cordset supports a rated voltage of 50 V AC / 60 V DC and a current capacity of 3 A. The robust, flexible PUR black cable houses 5 wires with a 0.25 mm² cross-section, ensuring both durability and excellent conductivity. The connector follows the M8 standard design with a B coding, making it compatible with a range of industrial automation applications. With an impressive protection rating of IP65, IP67, and IP69K, this cordset is resistant to dust and water, making it suitable for harsh conditions. Thanks to its reliable instrumental build, it has a lifespan of up to 100 mating cycles and an operational temperature ranging from -40 °C to +90 °C. This makes it ideal for connecting sensors or actuators in automation setups where steadfast performance and environmental resistances are pivotal.
€29.27
per item

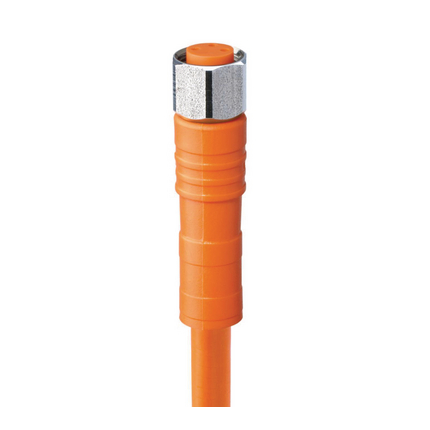

PRKMV 3-06/2 M - 69K
M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset
The M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset is designed for secure and reliable connections in industrial environments. This cordset features a female, straight, 3-pin, A-coded connector with an orange body that operates at voltages up to 50 V AC and 60 V DC, and can support currents up to 4 A. The connector is coupled with an orange PVC cable with a cross-sectional area of 0.34 mm² and 3 wires, ensuring robust performance and longevity. The cordset is unshielded and designed for applications requiring IP65, IP67, and IP69K protection degrees, suitable for harsh environments where durability is essential. The cordset also includes stainless steel coupling nuts and EMDM black O-rings, enhancing its resistance to corrosion and chemical exposure.
Benefits of the M8 F&B cordset include high current and voltage ratings, robust mechanical and chemical resistance, and compatibility with various industrial standards and environments. Its adherence to the IEC 61076-2-104 design standard ensures universal fitment and reliability.
This sensor/actuator cordset is ideal for use in applications where reliable and durable connections are critical, such as in factory automation, process control, and sensor/actuator interfacing. Its high protection degree ratings make it suitable for use in environments with high moisture, dust, or exposure to cleaning processes.
€23.10
per item

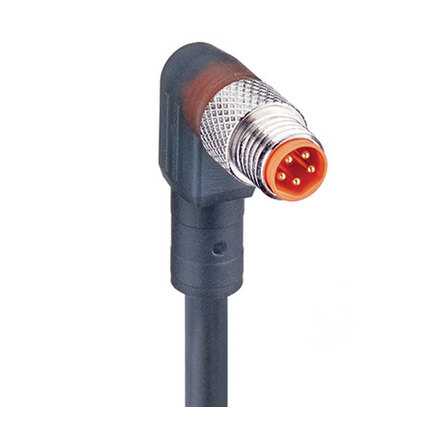

RSMWV 5-506/20 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is an essential component for reliable connectivity in industrial automation systems. Featuring a male, angled, 5-pin connection with B-coding, the cordset is designed to ensure high performance under demanding conditions. Its translucent body and robust construction offer an operational voltage of 50 V AC / 60 V DC and a rated current of 3A, making it suitable for various settings where durability and reliability are critical. The PUR black cable contains 5 wires, each with a size of 0.25 mm², providing excellent flexibility and longevity.
One of the key benefits of this cordset is its IP65, IP67, and IP69K ratings, ensuring it can withstand harsh environments, including dust, water, and high-pressure washdowns. The cordset’s design follows IEC 61076-2-104 standards, with materials that provide high insulation resistance and low contact resistance, ensuring efficient and stable signal transmission.
This cordset is perfect for use in factory automation, machinery, process control systems, and any application requiring reliable connections. Its angled design ensures easy installation in compact spaces, while the coupling screw attachment ensures a secure fit. With various length options available, you can choose the perfect cordset for your specific requirements.
€52.57
per item

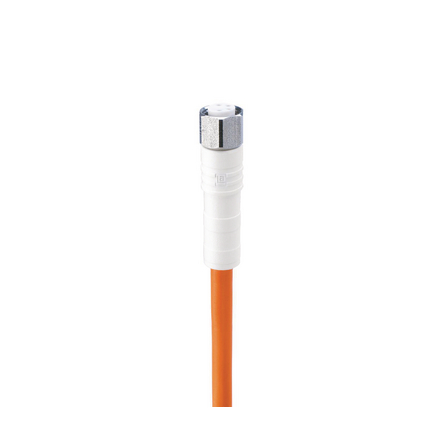

WRKMV 4-521/25 M
M8 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset
The M8 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset features a robust female, straight, 4-pin, A-coded connector with a white body. Designed for industrial applications, it supports a rated voltage of 30 V AC/DC and a current rating of 4 A. The orange TPE cable comprises four wires (0.25 mm² each) and is optimized for flexibility, with a minimal bending radius of more than 10 times its diameter in flexible installations. This cordset is particularly suited for wash-down environments due to its high IP ratings (IP65, IP67, IP68, and IP69K), ensuring reliable performance under harsh conditions. It is also highly resistant to oil and chemicals, making it ideal for food and beverage industry applications.
€81.94
per item
RSMWV 5-671/5 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is a male, angled, 5-pin B-coded connector designed for efficient sensor and actuator connections. It features a robust, translucent body that ensures durability and clear identification. The cordset operates at a voltage of 50 V AC / 60 V DC and supports a current of up to 4 A, making it suitable for a range of industrial applications. The black PVC cable is composed of five wires with a conductor size of 0.34 mm², offering flexibility and resilience in various environmental conditions.
€22.73
per item
ELST 4408 RV KM
M8 Insert Sensor/Actuator Receptacle Connector
The M8 Insert Sensor/Actuator Receptacle Connector is a versatile solution designed for secure and reliable connections in various sensor and actuator applications. This male connector features an M8 mating side and print contacts on the connecting side, supporting a 4-pin A-coded configuration. With a robust unshielded metallic grey housing, it ensures durability and protection in harsh environments. Rated for 30 V AC/DC and a current of up to 4 A, it offers stable electrical performance. The connector includes a snap- and screw-locking mechanism for easy and secure installation, meeting IEC 61076-2-104 standards. It is well-suited for PCB connections and can operate in temperatures ranging from -25°C to +90°C. The product is RoHS compliant and offers an IP67/IP68 protection degree when properly mounted, making it ideal for demanding industrial settings.
€3.52
per item
RKMV 4-07/15 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset from Lumberg Automation provides a reliable connection solution for your sensor and actuator needs. This cordset is designed with a female, straight, 4-pin connector, and is A-coded for standardized connectivity. Its robust construction features a translucent body that withstands mechanical stresses and offers clear visibility for easy inspection. Rated for 30 V AC/DC and carrying currents up to 4 A, it ensures consistent electrical performance. The included orange PVC cable is durable and flexible, with a four-wire configuration of 0.25 mm² each, making it ideal for various applications in automation and control systems.
Having an insulation resistance of over 10^9 Ohm and a contact resistance of max 10 mOhm, this cordset guarantees minimal electrical interference and secure data transmission. Its operating temperature ranges from -40 °C to +90 °C, with IP65 and IP67 protection ratings, ensuring resilience under harsh environmental conditions. The coupling nut type attachment facilitates secure mating cycles of up to 100 operations, ensuring a long service life.
This M8 Standard Sensor/Actuator Single-Ended Cordset is ideal for integration into complex automation systems where reliable signal transmission and flexible installations are essential. Suitable for both fixed and flexible installations, and offering good chemical and oil resistance, it proves effective in industrial environments demanding high operational efficiency.
€23.95
per item
RKMV 4-07/5 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset provides a reliable solution for sensor and actuator connections. This cordset features a female, straight, 4-pin, A-coded design with a translucent body, offering a robust 30 V AC/DC rating and a 4 A current capacity. Made with a durable PVC orange cable and equipped with 4 wires of 0.25 mm² each, it ensures secure and efficient transmission. The connector boasts high resistance to contact and insulation, with IP65 and IP67 protection ratings, making it suitable for various industrial applications under harsh conditions.
€13.70
per item
RSMV 3-RKMV 3-294/1 M
Sensor/Actuator Double-Ended Cordset
This Sensor/Actuator Double-Ended Cordset is designed with male straight A-coded translucent 3-pin M8 Standard connectors for both ends, allowing for seamless connection of sensors and actuators in various applications. Rated for 50 V AC / 60 V DC and a current of 4 A, the cordset ensures reliable performance. The connectors are securely attached through coupling screws and boast a protection degree of IP65/IP67, making them ideal for harsh environments. The black PVC cable is robust and flexible, containing three wires with a conductor size of 0.34 mm². It provides good chemical and oil resistance, ensuring durability and longevity. This cordset is optimal for industrial automation, robotics, and factory automation systems where flexible and secure connections are necessary.
€19.82
per item
RSMV 5-RKMV 5-507/15 M
Sensor/Actuator Double-Ended Cordset
The Sensor/Actuator Double-Ended Cordset is designed for reliable and efficient connectivity in various industrial and automation applications. It features a male straight B-coded translucent 5-pin M8 Standard connector and a female straight B-coded translucent 5-pin M8 Standard connector, allowing seamless connections between sensors and actuators. With a voltage rating of 50 V AC / 60 V DC and a current rating of 3 A, this cordset ensures optimal performance. The PVC black cable has 5-wires with a conductor size of 0.25 mm², guaranteeing robust and flexible connections. The cordset is unshielded and boasts an IP rating of IP65, IP67, and IP69K, providing exceptional protection in harsh environments. It's suitable for use in temperatures ranging from -40 °C to +90 °C, making it highly versatile for different operating conditions.
€47.52
per item
RKM 3-224/6 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is designed to cater to various industrial automation applications. Featuring a female, straight, 3-pin, A-coded connection, this cordset is engineered for reliability and durability. The translucent body makes it versatile for different setups, while handling an operating voltage of 50 V AC / 60 V DC and a current rating of 4 A. Crafted with a PUR black cable, it includes 3 wires with a 0.34 mm² conductor size, ensuring efficient signal transmission.
One of the key benefits of this cordset is its robust design, capable of withstanding harsh environmental conditions with an operational temperature range from -40 °C to +90 °C. The high insulation resistance (˃ 10^9 Ohm) and low contact resistance (≤ 10 mOhm) allow for stable and safe connections, suitable for critical sensor and actuator systems.
This cordset is perfect for installations where quick attachment is needed, thanks to its snap-locking feature. It is ideal for use in automation environments where reliability is critical, providing up to 100 mating cycles. Its IP65 rating ensures protection against dust and water ingress, making it highly dependable for industrial use.
€15.97
per item
