M8 A-Coded 4-Pole Male Field Attachable
RSMCK 4
M8 4-Pole Male Field-Attachable

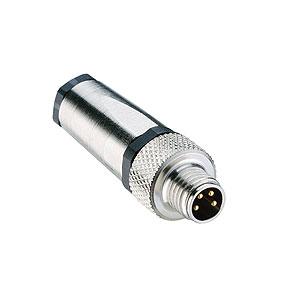

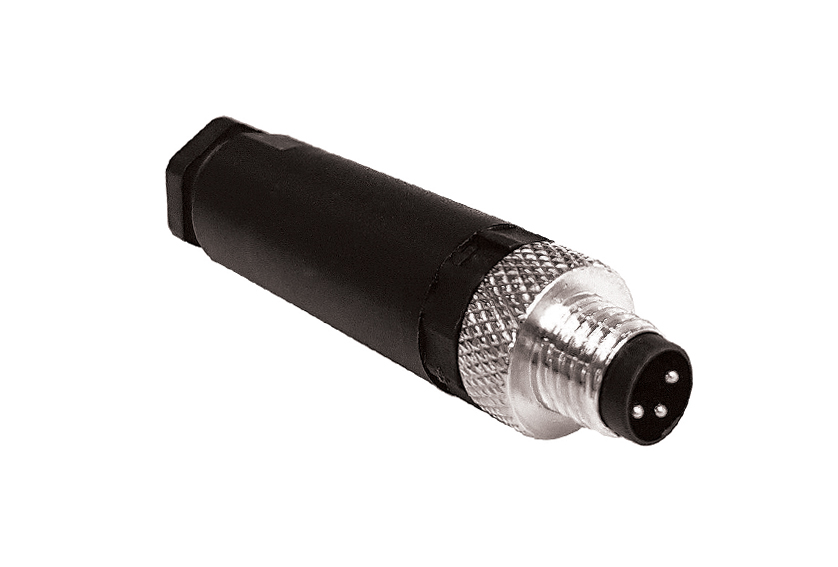

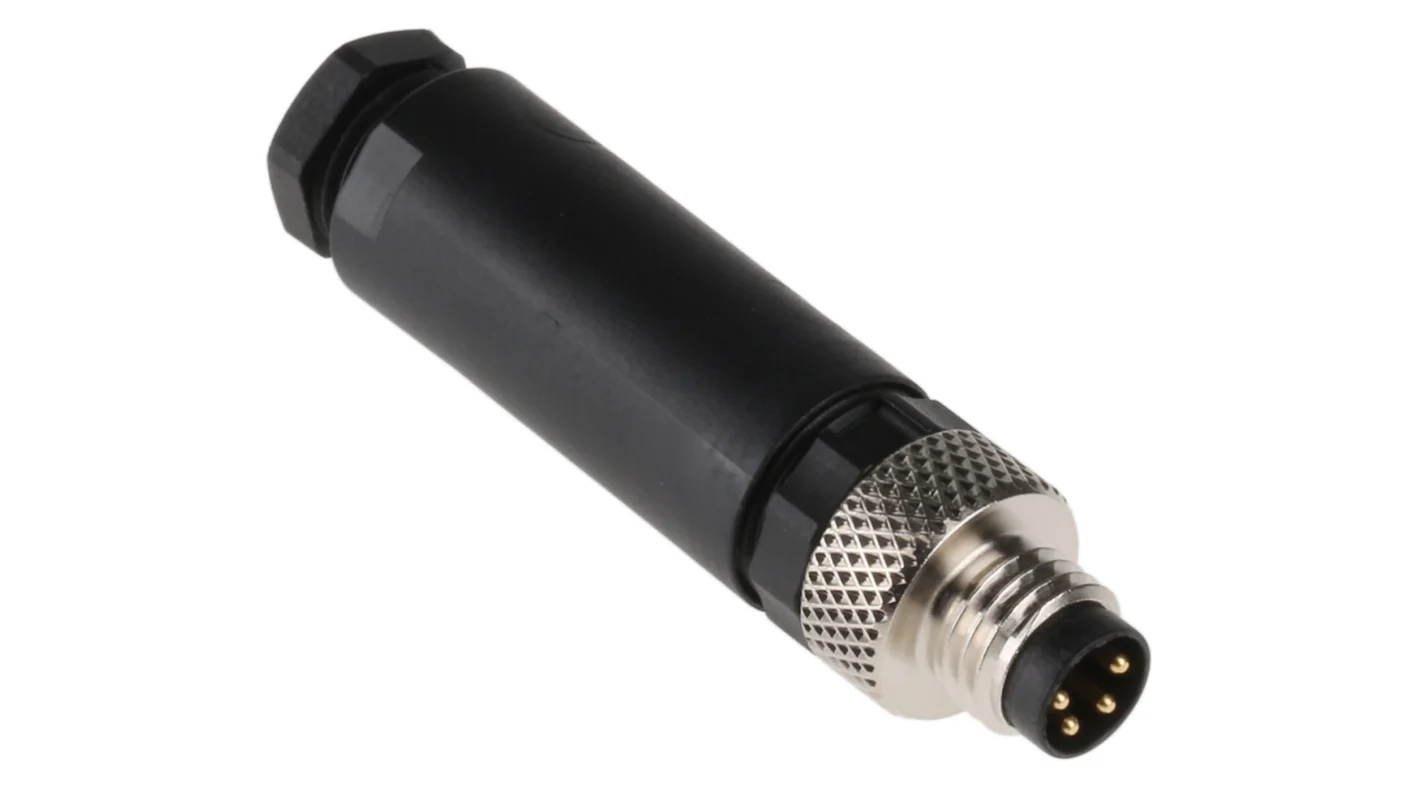

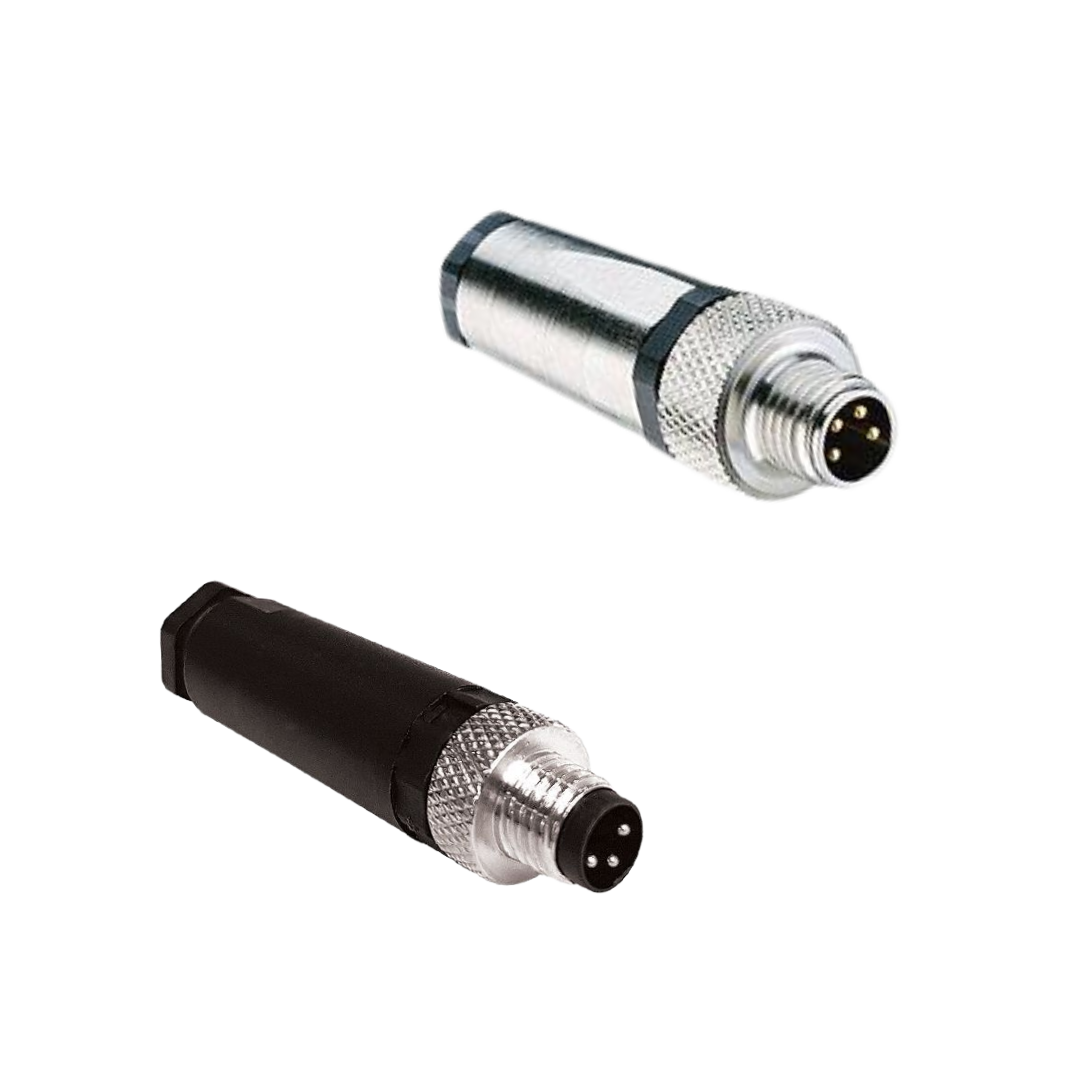

RSMCK M8 A-Coded – 4-Pole Male Field-Attachable Connector
Compact field-attachable M8 connector.
3-pole version with standard A-coding.
Screw terminals for quick on-site assembly.
Supports conductor sizes 0.14–0.50 mm².
Durable PA housing, IP67 rated.
Operating temperature: -40°C to +85°C.
Gold-plated contacts, low resistance (≤ 5 mΩ).
Rated current: 4 A at 40°C.
Rated voltage: 60 V / test voltage: 1.5 kV.
Ideal for industrial and harsh environments.
€16.10
per item
