M8 Molded Cable Female
RKMWV 5-506/15 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is designed to provide reliable and efficient connectivity for sensor and actuator applications. This cordset features a 5-pin, B-coded female connector at an angle, housed in a translucent body. It supports an operating voltage of 50 V AC / 60 V DC and a current rating of 3 A. The cordset is constructed with a durable PUR black cable, consisting of 5 wires each with a conductor size of 0.25 mm².
Benefits of this cordset include its robust design which ensures high-level performance under various installation conditions, given its IP65, IP67, and IP69K ratings. The contact materials and plating provide excellent electrical conductivity and resistance to corrosion, ensuring long-term reliability.
This cordset is ideal for use in industrial automation settings, particularly where space constraints might necessitate the use of an angled connector. Suitable for environments with temperatures ranging from -40 °C to +90 °C, this cordset is designed for versatile applications including fixed, flexible, and drag chain installations.
€39.75
per item
RKMV 4-225/25 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is an essential solution for reliable connections in industrial applications. This cordset features a female, straight, 4-pin, A-coded translucent body that can handle 30 V AC/DC and 4 A of current. It comes with a robust, black PUR cable featuring 4 wires each of 0.34 mm². The cordset is designed to operate in harsh environments, offering high resistance to microbes and hydrolysis and a wide temperature range from -40 °C to +90 °C. The contact base material made from CuSn and Cu/Au plating ensures excellent conductivity, while the TPU molded body and attachment material with nickel-plating enhances durability. The cordset boasts a high protection degree of IP65, IP67, IP69K, making it suitable for various applications requiring waterproof and dustproof characteristics.
€49.37
per item

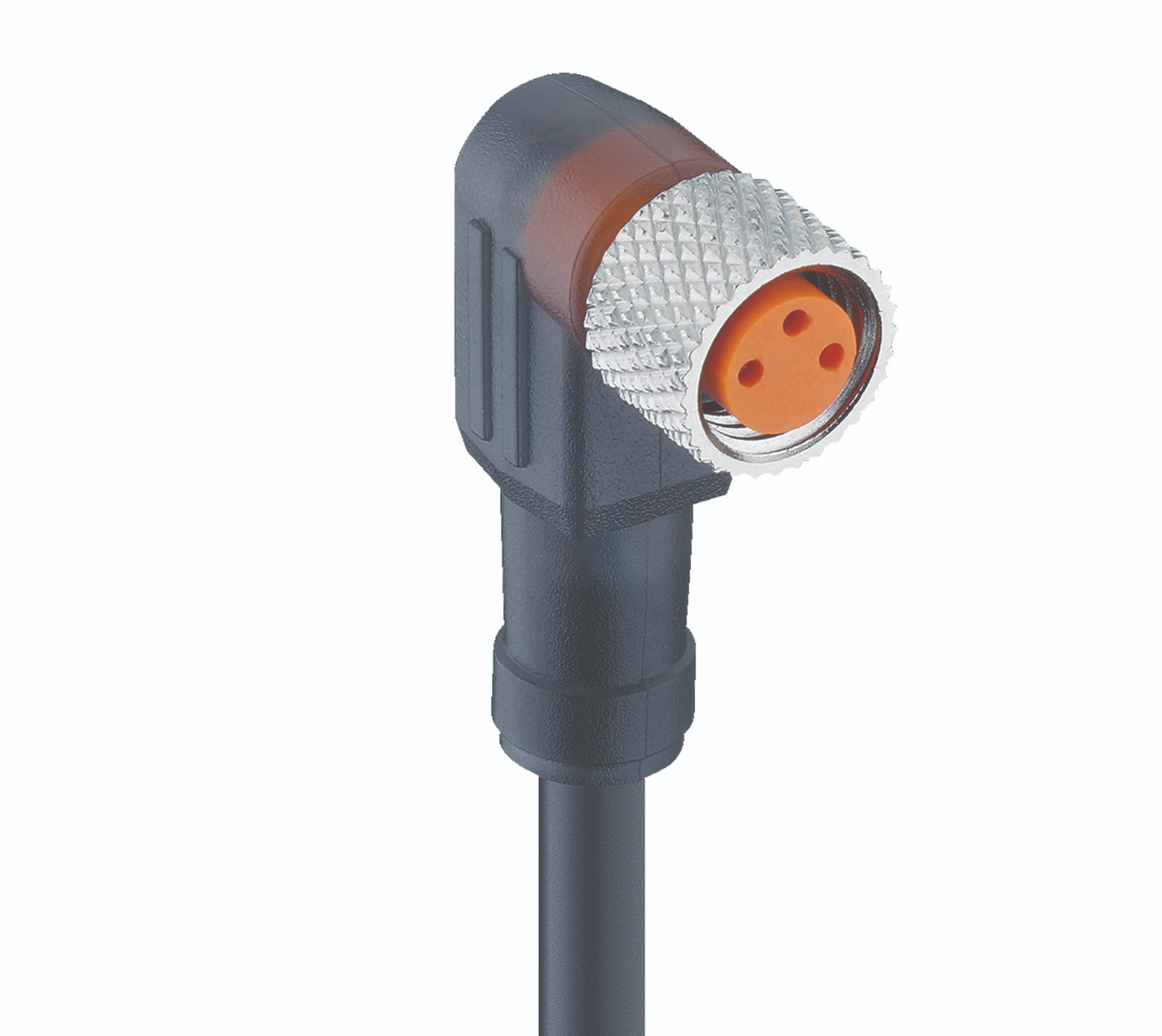

RKMWV/LED A 3-260/5 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is a high-quality, reliable connector designed for demanding industrial applications. This cordset features a female, angled, 3-pin A-coded design with a translucent body. It operates at 10-30 V DC and can handle currents up to 4 A. The unit is fitted with a PUR orange cable, consisting of 3 wires of 0.34 mm² each, ensuring flexibility and durability. Additionally, it is equipped with two LEDs (PNP) for clear status indication. The connector is unshielded and constructed with robust materials, including CuZn attachment plating with nickel and a TPU molded body. Rated for an ambient temperature range of -40°C to +90°C, this cordset offers excellent operational reliability even in harsh environments. The IP65, IP67, and IP69K protection ratings ensure resistance against dust, water, and high-pressure cleaning, making it ideal for use in various industrial automation scenarios. With a compatibility standard of IEC 61076-2-104, this cordset is a dependable choice for connecting sensors or actuators efficiently.
€29.41
per item
RKMW 5-671/25 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is a high-quality connector designed for various industrial applications. This cordset features a female, angled, 5-pin configuration with B-coding and a translucent body. It supports an operating voltage of 50 V AC / 60 V DC and a current rating of 4 A. The attached PVC black cable has 5 wires and a conductor size of 0.34 mm², ensuring dependable electrical transmission with minimal resistance (≤ 10 mOhm) and high insulation resistance (˃ 10^9 Ohm). The cordset is unshielded, features a snap-locking attachment type, and conforms to the IEC 61076-2-104 design standard.
€46.58
per item

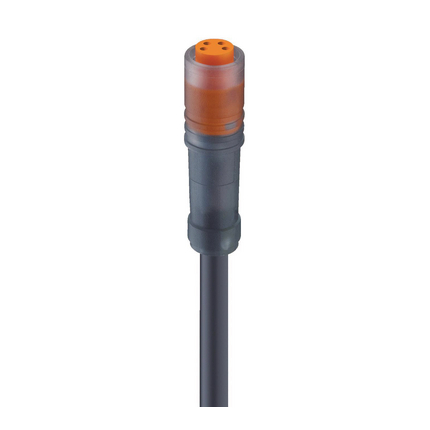

RKM 4-225/1,35 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is a high-quality connection solution designed for optimal performance in industrial automation settings. The cordset features a female, straight, 4-pin A-coded connector with a translucent body, suitable for applications up to 30 V AC/DC and 4 A. The PUR black cable is designed with four wires of 0.34 mm² each, ensuring reliable and efficient signal transmission.
One of the main benefits of this cordset is its durability and robust construction. The molded body and contact bearer are made from thermoplastic polyurethane (TPU), which provides excellent resistance to environmental stresses such as extreme temperatures, mechanical wear, and chemical exposure. The cable is black matte, similarly to RAL 9005, offering good flexibility and resistance to microbes and hydrolysis.
This cordset is well-suited for various industrial applications, including sensor and actuator connections in automation systems. Its IP65 rating ensures reliable performance in harsh environments, and the snap-locking mechanism offers secure and easy installation. The cordset is compatible with UL 2238 standards and provides excellent contact resistance, making it a reliable choice for demanding applications.
€11.23
per item

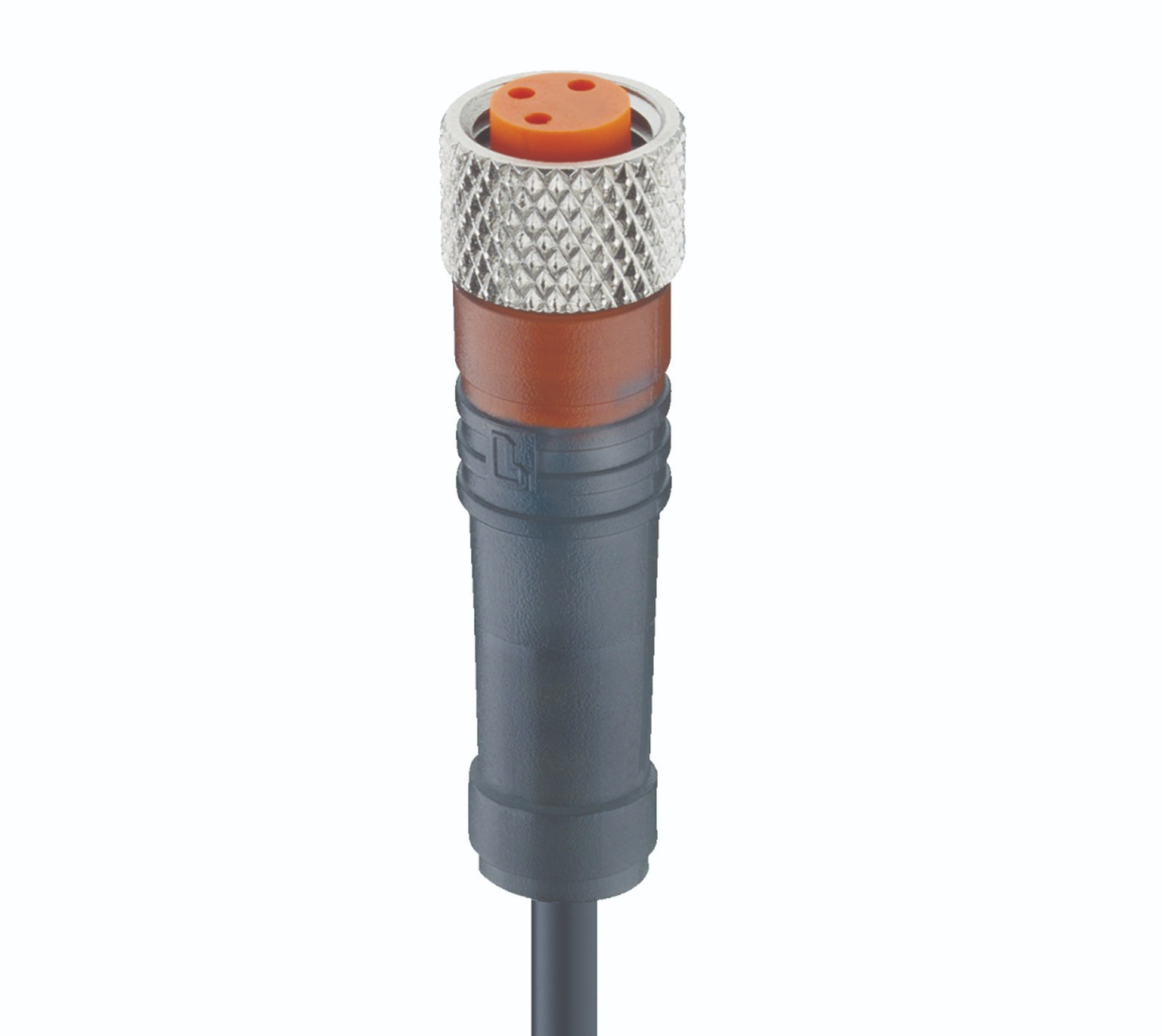

RKMV 3-06/1 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is a high-quality female, straight, 3-pin, A-coded connector. Designed with a sturdy and translucent body, it can handle 50 V AC / 60 V DC and a current rating of 4 A. The cordset features a durable orange PVC cable with 3 wires and a conductor size of 0.34 mm², offering great performance for a wide range of applications. It is ideal for industrial environments and automation systems that demand reliable connectivity.
€9.21
per item
RKM 5-671/10 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is a versatile connector solution ideal for various applications. This female, straight connector features a 5-pin, B-coded design with a translucent body capable of operating at 50 V AC / 60 V DC and handling up to 4 A of current. The connection is secure and reliable, thanks to the snap-locking mechanism. The black PVC cable is equipped with five wires, each with a conductor size of 0.34 mm², and has excellent flexibility and durability. These cordsets are unshielded and can withstand ambient temperatures ranging from -40°C to 90°C, making them suitable for challenging environments. With an IP65 protection degree, the cordsets offer resistance to dust and water, ensuring longevity and performance.
€26.07
per item
RKMW 5-506/10 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is designed with precision and reliability in mind. This female, angled, 5-pin, B-coded connector features a translucent body, operating at voltages up to 50 V AC or 60 V DC and supporting a current of up to 3 A. The cordset includes a robust black PUR cable with five wires, each having a conductor size of 0.25 mm². The design adheres to IEC 61076-2-104 standards, ensuring excellence in performance.
The benefits of this cordset include exceptional durability and versatility, making it ideal for demanding industrial environments. The connector is rated at IP65, offering protection against dust and water ingress. With a mating cycle rating of 100 and a temperature range from -40°C to +90°C, the cordset is well-suited for a variety of conditions.
Applications are extensive, primarily in sensor and actuator connectivity within industrial settings. The snap-locking mechanism ensures secure connections, while its compact, angled design allows for use in space-limited areas. It's ideal for applications requiring reliable data and power transmission.
€30.75
per item
PRKMV 3-06/2 M - 69K
M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset
The M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset is designed for secure and reliable connections in industrial environments. This cordset features a female, straight, 3-pin, A-coded connector with an orange body that operates at voltages up to 50 V AC and 60 V DC, and can support currents up to 4 A. The connector is coupled with an orange PVC cable with a cross-sectional area of 0.34 mm² and 3 wires, ensuring robust performance and longevity. The cordset is unshielded and designed for applications requiring IP65, IP67, and IP69K protection degrees, suitable for harsh environments where durability is essential. The cordset also includes stainless steel coupling nuts and EMDM black O-rings, enhancing its resistance to corrosion and chemical exposure.
Benefits of the M8 F&B cordset include high current and voltage ratings, robust mechanical and chemical resistance, and compatibility with various industrial standards and environments. Its adherence to the IEC 61076-2-104 design standard ensures universal fitment and reliability.
This sensor/actuator cordset is ideal for use in applications where reliable and durable connections are critical, such as in factory automation, process control, and sensor/actuator interfacing. Its high protection degree ratings make it suitable for use in environments with high moisture, dust, or exposure to cleaning processes.
€23.10
per item
WRKMV 4-521/25 M
M8 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset
The M8 F&B (Wash-Down) Sensor/Actuator Single-Ended Cordset features a robust female, straight, 4-pin, A-coded connector with a white body. Designed for industrial applications, it supports a rated voltage of 30 V AC/DC and a current rating of 4 A. The orange TPE cable comprises four wires (0.25 mm² each) and is optimized for flexibility, with a minimal bending radius of more than 10 times its diameter in flexible installations. This cordset is particularly suited for wash-down environments due to its high IP ratings (IP65, IP67, IP68, and IP69K), ensuring reliable performance under harsh conditions. It is also highly resistant to oil and chemicals, making it ideal for food and beverage industry applications.
€81.94
per item

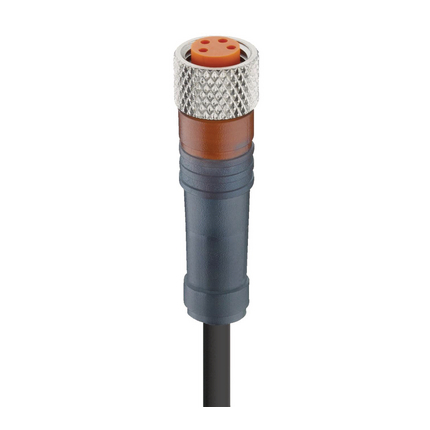

RKMV 4-07/15 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset from Lumberg Automation provides a reliable connection solution for your sensor and actuator needs. This cordset is designed with a female, straight, 4-pin connector, and is A-coded for standardized connectivity. Its robust construction features a translucent body that withstands mechanical stresses and offers clear visibility for easy inspection. Rated for 30 V AC/DC and carrying currents up to 4 A, it ensures consistent electrical performance. The included orange PVC cable is durable and flexible, with a four-wire configuration of 0.25 mm² each, making it ideal for various applications in automation and control systems.
Having an insulation resistance of over 10^9 Ohm and a contact resistance of max 10 mOhm, this cordset guarantees minimal electrical interference and secure data transmission. Its operating temperature ranges from -40 °C to +90 °C, with IP65 and IP67 protection ratings, ensuring resilience under harsh environmental conditions. The coupling nut type attachment facilitates secure mating cycles of up to 100 operations, ensuring a long service life.
This M8 Standard Sensor/Actuator Single-Ended Cordset is ideal for integration into complex automation systems where reliable signal transmission and flexible installations are essential. Suitable for both fixed and flexible installations, and offering good chemical and oil resistance, it proves effective in industrial environments demanding high operational efficiency.
€23.95
per item
RKMV 4-07/5 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset provides a reliable solution for sensor and actuator connections. This cordset features a female, straight, 4-pin, A-coded design with a translucent body, offering a robust 30 V AC/DC rating and a 4 A current capacity. Made with a durable PVC orange cable and equipped with 4 wires of 0.25 mm² each, it ensures secure and efficient transmission. The connector boasts high resistance to contact and insulation, with IP65 and IP67 protection ratings, making it suitable for various industrial applications under harsh conditions.
€13.70
per item
RKM 3-224/6 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is designed to cater to various industrial automation applications. Featuring a female, straight, 3-pin, A-coded connection, this cordset is engineered for reliability and durability. The translucent body makes it versatile for different setups, while handling an operating voltage of 50 V AC / 60 V DC and a current rating of 4 A. Crafted with a PUR black cable, it includes 3 wires with a 0.34 mm² conductor size, ensuring efficient signal transmission.
One of the key benefits of this cordset is its robust design, capable of withstanding harsh environmental conditions with an operational temperature range from -40 °C to +90 °C. The high insulation resistance (˃ 10^9 Ohm) and low contact resistance (≤ 10 mOhm) allow for stable and safe connections, suitable for critical sensor and actuator systems.
This cordset is perfect for installations where quick attachment is needed, thanks to its snap-locking feature. It is ideal for use in automation environments where reliability is critical, providing up to 100 mating cycles. Its IP65 rating ensures protection against dust and water ingress, making it highly dependable for industrial use.
€15.97
per item
RKMWV/LED A 3-224/10 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset: Female, angled, 3-pin, A-coded, with a translucent body and integrated 2xLEDs (PNP), allows for easy installation and reliable performance in various automation settings. It operates within 10-30 V DC and 4 A, featuring a PUR black cable with 3 wires, each 0.34 mm². This cordset is particularly suitable for rugged environments, offering high resistance to chemicals, oils, and mechanical wear. It meets IP65, IP67, and IP69K protection standards, making it ideal for industrial applications where durability and performance are crucial.
€29.08
per item

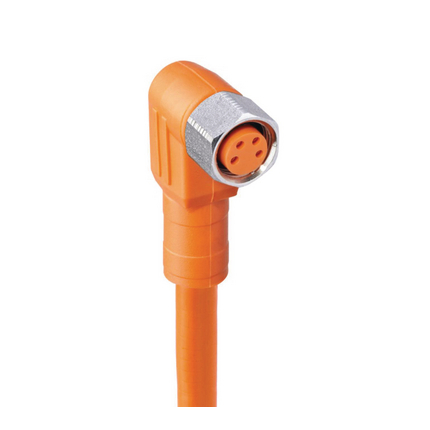

PRKMWV 4-07/10 M - 69K
M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset
M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset features a female, angled 4-pin A-coded connector. The cordset's distinctive orange body is designed for 30 V AC/DC operations supporting up to 4 A current. Constructed from durable PVC, the orange cable comprises 4-wires of 0.25 mm². With a coupling nut attachment, the connector offers robust performance with shielding against environmental elements (IP65, IP67, IP69K rated). It sustains up to 100 mating cycles and operates efficiently within temperatures of -25 °C to +70 °C. Ideal for a variety of automation applications.
€34.32
per item
RKMWV/LED A 3-224/3 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset offers high-performance connectivity suitable for various industrial applications. This female, angled, 3-pin, A-coded cordset is designed for optimal performance with a 30V DC operating range and 4A current rating. An additional feature includes two PNP LEDs for immediate functional indication. The cordset's body is translucent, providing a visually striking and practical design. It utilizes a high-quality PUR black cable with three wires of 0.34 mm², ensuring durability and reliability in demanding conditions. The product is compliant with multiple safety and performance standards, including IEC 61076-2-104 and UL certifications, and meets IP65, IP67, and IP69K protection degrees. The engineering choice of CuSn for contact base material and durable TPU for the molded body further affirms its robustness and longevity, offering effective and secure mating cycles up to 100 operations.
€19.89
per item

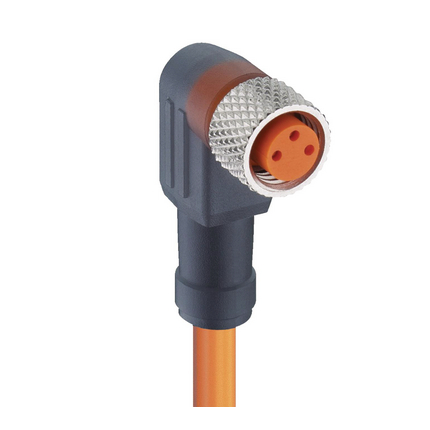

RKMWV 3-260/30 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is a rugged and reliable connection solution designed for industrial automation applications. This cordset features a female, angled, 3-pin, A-coded connector with a translucent body. It is rated for 50 V AC / 60 V DC and a current capacity of 4 A, making it suitable for various sensor and actuator interfaces. The PUR orange cable includes 3-wires with a cross-sectional area of 0.34 mm², ensuring robust performance in harsh environments.
This product offers several benefits, including strong resistance to welding sparks, excellent flexibility at low temperatures, high resistance to oil, and compliance with stringent environmental standards. Additionally, the cordset is halogen-free, making it environmentally friendly.
The M8 Standard Sensor/Actuator Single-Ended Cordset is ideal for applications in industrial automation, such as connecting sensors and actuators to control systems. It is designed to withstand demanding conditions and ensure consistent, reliable connections in harsh industrial environments.
€52.43
per item

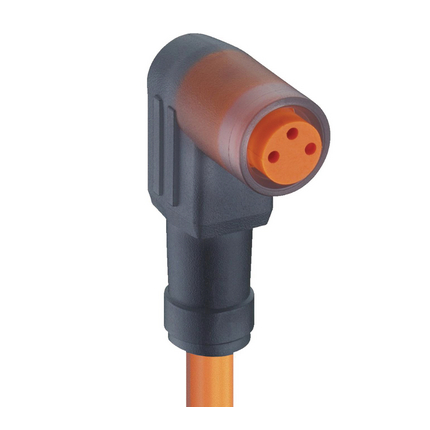

RKMW/LED A 3-06/5 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset features a female connector with an angled design and a 3-pin configuration, A-coded for seamless integration. The translucent body houses a robust electrical system designed to operate within a voltage range of 10-30 V DC and up to 4A of current. The cordset includes two LEDs (PNP) for status indication, providing clear and immediate feedback. It is equipped with a durable PVC orange cable comprising three wires with a conductor size of 0.34 mm², ensuring reliable performance in various industrial applications. Rated for use in environmental temperatures ranging from -40 °C to +90 °C, this cordset is built to withstand challenging conditions, offering oil and chemical resistance.
€20.53
per item
RKMWV 5-506/10 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is designed to meet the demands of industrial applications, featuring a robust female, angled, 5-pin, B-coded connector. With a translucent body and a rated operation of 50 V AC/60 V DC at 3 A, this cordset ensures reliable and resilient performance. Its construction comprises a PUR black cable, with 5 wires of 0.25 mm², providing durability and flexibility.
This product is ideal for automated systems requiring robust sensor/actuator connections. The copper alloy contacts ensure low contact resistance (≤ 10 mΩ) and high insulation resistance (> 10^9 Ω), providing secure connections under tough conditions. The TPU molded body offers additional protection, while its IP65, IP67, and IP69K ratings make it suitable for use in environments subject to dust and water exposure.
This cordset is primarily used in industrial settings, such as assembly lines, robotics, and automated machinery, thanks to its superior design standards (IEC 61076-2-104) and outstanding temperature range from -40 °C to +90 °C. Available in various cable lengths, this connector is versatile and essential for maintaining efficient operations.
€30.57
per item
RKMW 5-293/2 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is a high-quality connector designed for efficient and reliable performance. With a female, angled, 5-pin configuration and B coding, this cordset ensures a secure connection for sensor and actuator applications. It boasts a translucent body with a robust PUR black cable consisting of 5 wires, each with a conductor size of 0.34 mm². It can handle 50 V AC / 60 V DC and a current of up to 4 A. This makes it ideal for various industrial applications where durability and signal integrity are critical. The cordset is designed to withstand environments ranging from -40°C to +90°C, adhering to IEC 61076-2-104 standards. This product offers excellent resistance against microbes and hydrolysis, providing a long service life in harsh conditions. It excludes PVC and silicone, ensuring minimal environmental impact. This cordset is unshielded with a snap-locking attachment, available in multiple lengths, from 2m to 25m, to suit different setup requirements.
€16.37
per item

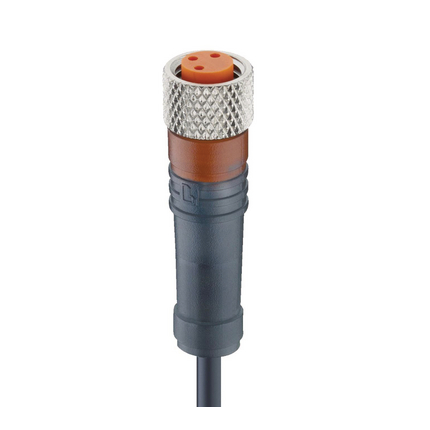

RKMV 3-06/3 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is designed to provide efficient connectivity for industrial automation systems. It features a female, straight, 3-pin, A-coded design with a translucent body, ensuring a secure and robust connection. Rated for 50 V AC and 60 V DC, this cordset supports up to 4 A of current, making it suitable for a range of sensor and actuator applications. The orange PVC cable is equipped with 3 wires and has a conductor size of 0.34 mm², ensuring durability and flexibility in various environments. This cordset is unshielded, with a coupling nut attachment, and complies with several industrial standards, including IEC 61076-2-104, offering IP65 and IP67 protection. It is crafted from high-quality materials such as CuSn for contacts and TPU for the molded body, featuring good chemical and oil resistance. Ideal for fixed and flexible installations, it guarantees reliable performance in temperatures ranging from -40 °C to +90 °C.
€10.57
per item

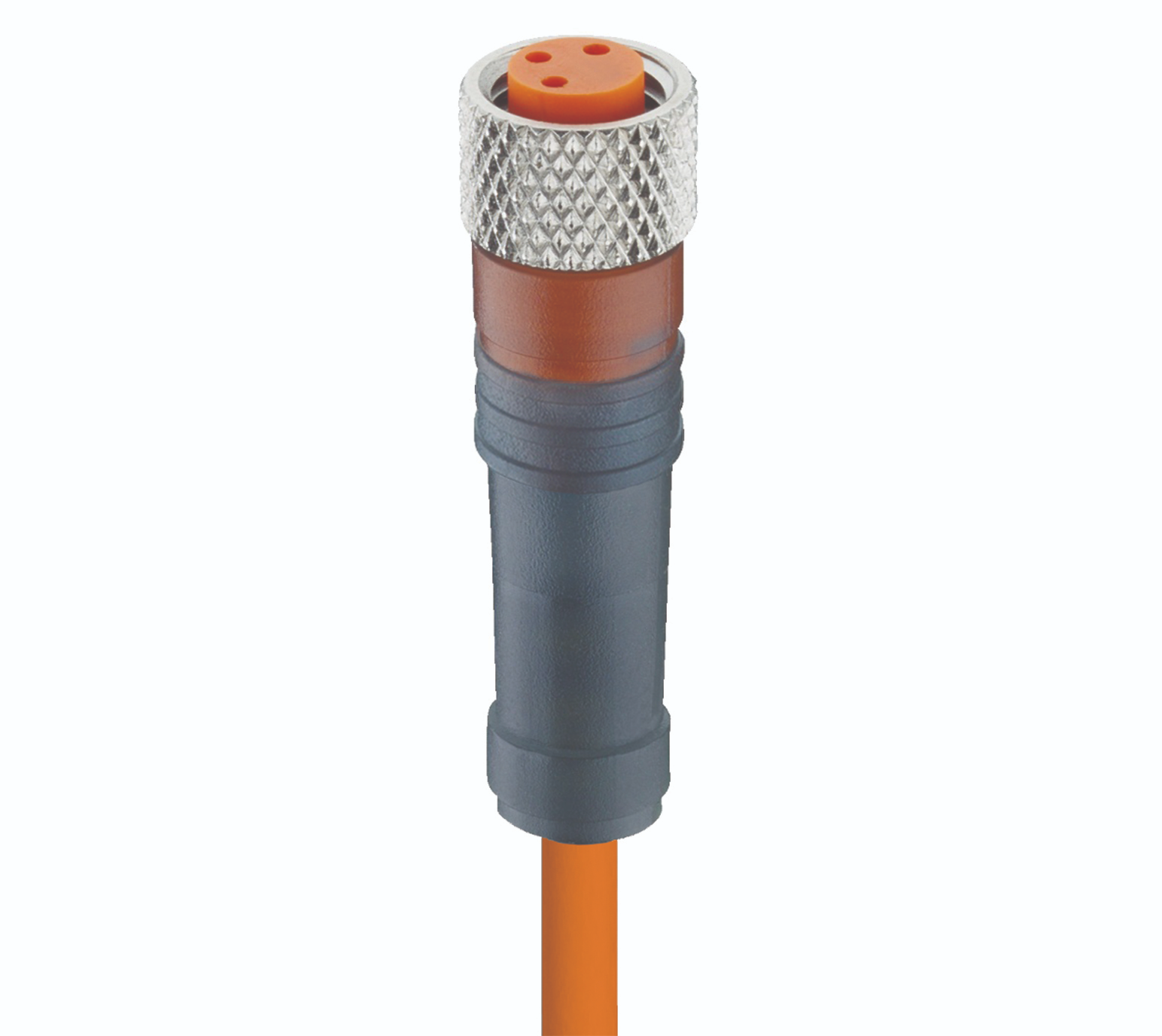

RKMV 3-224/6 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is designed for reliability and performance in industrial settings. This cordset features a female, straight, 3-pin connector with an A-coded translucent body, making it suitable for various sensor and actuator applications. With a voltage rating of 50 V AC / 60 V DC and a current rating of 4 A, it is well-equipped for demanding tasks. The cordset includes a robust PUR black cable, comprising three wires with a conductor size of 0.34 mm², offering excellent durability and resistance to chemicals and oil.
Benefits of this cordset include its high insulation resistance of over 10^9 Ohm, ensuring safe and reliable connections. Its protection degree is rated at IP65, IP67, and IP69K, ensuring excellent protection against dust and water ingress. Designed to withstand -40 °C to +90 °C temperatures, this cordset is versatile for various environments, including those with rigid or flexible installations.
Ideal for use in automation systems, the cordset's compatibility with Lumberg Automation components and ease of installation provides reliable connectivity solutions to enhance machine efficiency and productivity.
€15.64
per item
