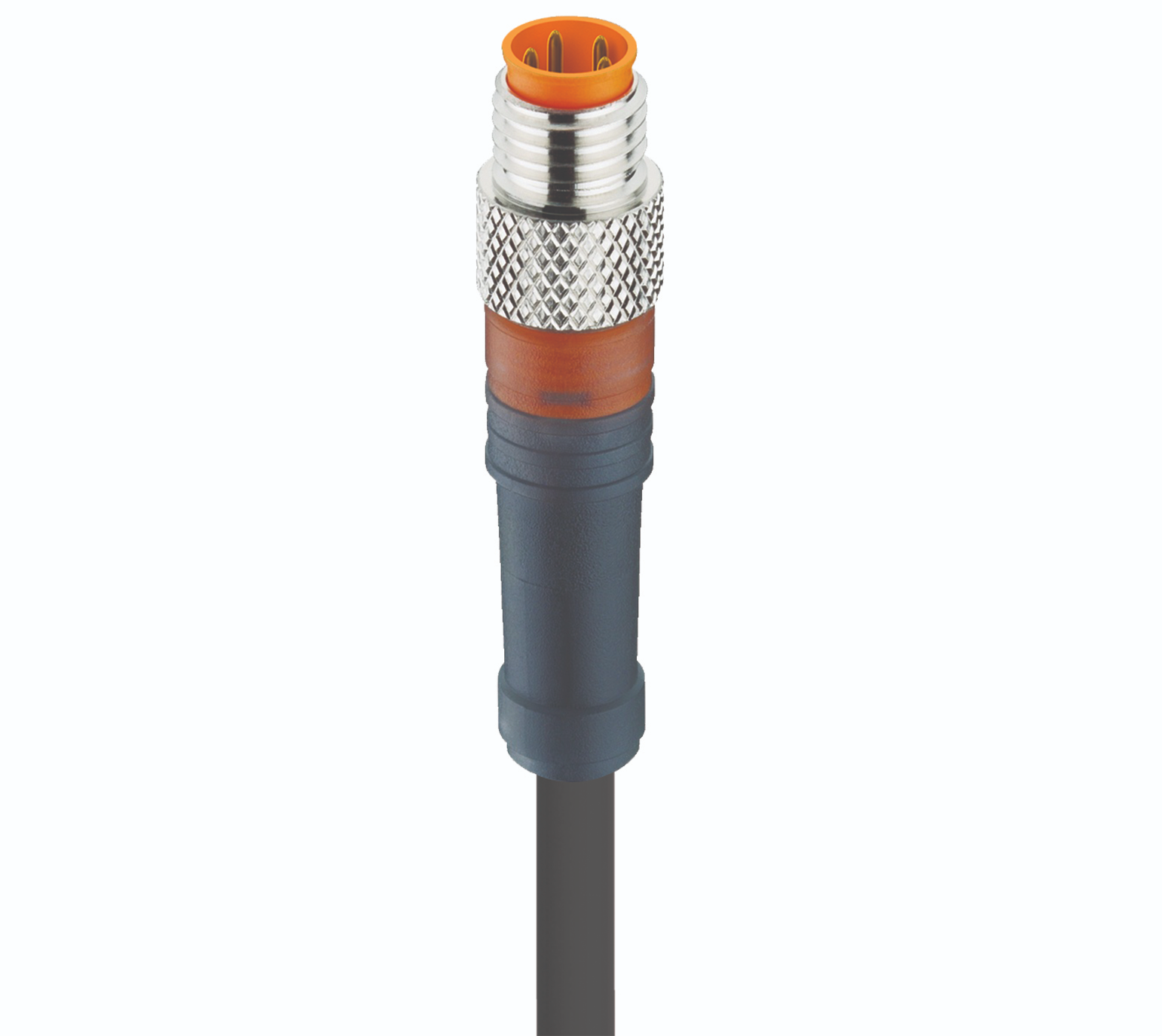

M8 Molded Cable Male

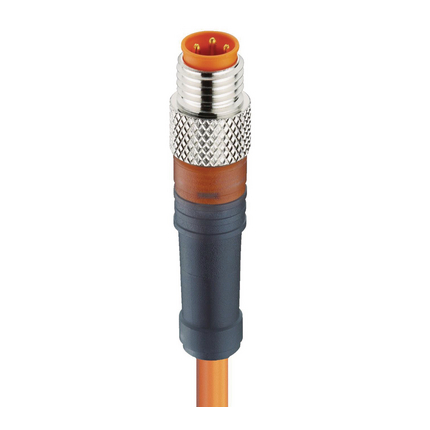

RSMV 3-294/6 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is a high-quality connector designed for secure and efficient signal transmission in various industrial environments. This cordset features a male, straight, 3-pin A-coded connector with a translucent body, ensuring easy identification and reliable connectivity. With a rated voltage of 50 V AC / 60 V DC and a current capacity of 4 A, it is well-suited for demanding applications. The PVC black cable, with 3-wires and a conductor size of 0.34 mm², provides durability and resistance to bending. The cordset complies with IP65 and IP67 protection ratings, ensuring it can withstand harsh conditions. Ideal for connecting sensors and actuators, it is suitable for fixed and flexible installations in industrial automation systems.
€17.27
per item

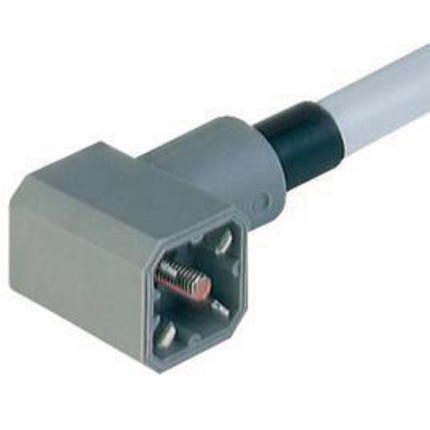

G 30 KW 3 M 2m

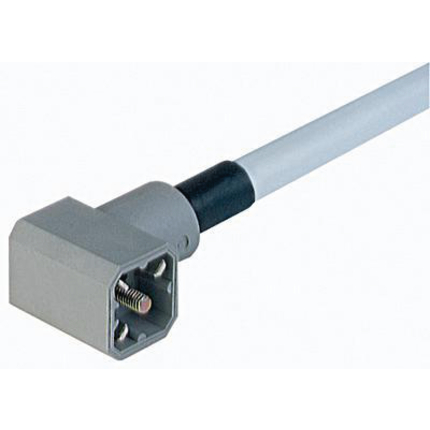

G-Series Power Single-Ended Cordset
The G-Series Power Single-Ended Cordset is a robust and reliable connection solution, featuring a male, angled, 4-pin (3+PE) configuration with a grey body. Designed to operate at 230 V AC/DC with a rated current of 10 A, this cordset is equipped with a PVC grey cable of 0.75 mm² gauge, ensuring durability and flexibility. The connector is unshielded and attaches with a central screw. Rated for up to 250 V AC/DC and 4.0 kV impulse voltage, this cordset meets DIN EN 61984 (VDE 0627) standards and offers IP65 protection when properly installed.
This cordset provides reliable electrical connection in harsh environments, with a wide operating temperature range from -40°C to +90°C. Its durable construction includes CuZn contacts with Cu/Sn plating, a PA GF body, and meets UL 94 HB flammability standards. It’s suitable for various industrial applications where high performance and durability are critical. Whether in fixed or flexible installations, the G-Series Power Single-Ended Cordset is designed to meet demanding requirements.
Applications include industrial automation systems, machinery, and other electrical and electronic devices requiring secure and stable power connections. The cordset’s robustness and compliance with significant safety standards make it ideal for use in environments subjected to harsh conditions, ensuring long-term reliability and performance.
€18.76
per item
RSMV 5-671/5 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is a robust and reliable connection component ideal for various automation applications. It features a 5-pin, male, straight connector with B-coding, enclosed in a durable translucent body. The cordset supports an impressive 50 V AC / 60 V DC at 4 A, making it suitable for demanding electrical environments. The black PVC cable features five wires of 0.34 mm² each, ensuring excellent conductivity and flexibility.
This cordset offers numerous benefits, such as resistance to chemicals and oils, along with noteworthy IP65, IP67, and IP69K ratings when securely mounted and locked with compatible connectors. With excellent contact and insulation resistance, and a flammability rating of UL 94 V-0 for the contact bearer, it promises safety and durability under a range of operational temperatures from -40 °C to +90 °C.
Suitable for fixed, flexible, and drag chain installations, the cordset serves a wide array of automation needs. Its sturdy design conforms to IEC 61076-2-104 standards, providing ease of use and reliability in industrial settings. It's available in various lengths, accommodating diverse installation scenarios.
€22.73
per item

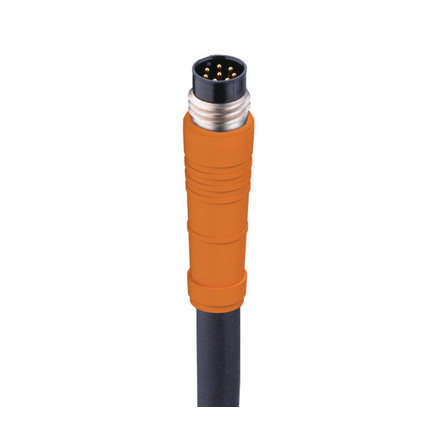

RSM 8-354/5 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is an essential component for reliable sensor and actuator connections. It features a male, straight, 8-pin, A-coded connector design with a sturdy orange body. The cordset operates at a rating of 30 V AC/DC and 1 A, making it suitable for various industrial applications. The TPU black cable consists of 8-wires each with a conductor size of 0.14 mm², ensuring optimal signal transmission. It is designed to withstand ambient temperature ranges from -40 °C to +90 °C and provides protection degrees of IP65 and IP67 when connected with appropriate female connectors. This cordset is ideal for use in automated environments requiring durable and reliable connections.
€42.05
per item
RSMV 3-06/1 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is designed to provide reliable connectivity for various industrial automation applications. It features a male, straight 3-pin A-coded connector with a translucent body, capable of handling 50 V AC/60 V DC and a current rating of 4 A. The cordset is manufactured with a robust PVC orange cable that contains 3 wires with a conductor size of 0.34 mm², ensuring efficient electrical performance. The connector boasts unshielded construction, making it suitable for environments where minimal electromagnetic interference is present. The cordset is compliant with multiple safety and environmental regulations, including RoHS, and provides good chemical and oil resistance. Suitable for use in temperatures ranging from -40°C to +90°C and offering an IP65/IP67 protection degree when properly mounted, this cordset is an ideal choice for use in automation systems, robotics, and sensor networks.
€12.16
per item
RSMV 4-329/1 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset guarantees robust and precise connections for your sensor and actuator applications. Featuring a male, straight, 4-pin, A-coded design, this cordset operates at a voltage of 30 V AC/DC and a current rating of 2 A. The connector is encased in a durable translucent body with a coupling screw attachment, ensuring a secure and stable connection. The black PUR cable, composed of 4 wires with a conductor size of 0.14 mm², provides excellent flexibility and durability under various environmental conditions, including a temperature range from -40 °C to +90 °C.
Product benefits include high reliability with a contact resistance of ≤ 10 mOhm and insulation resistance ˃ 10⁹ Ohm, accommodating up to 100 mating cycles. The IP65, IP67, and IP69K protection degrees ensure superior resistance to dust and water. The cordset conforms to IEC 61076-2-104 standards, ensuring high-quality performance and safety compliance.
Applications for this cordset span across numerous industrial environments requiring reliable sensor and actuator connections. Whether in automation systems, machinery, or production lines, this cordset provides a dependable interface. The copper conductors and TPU molded body enhance mechanical performance and resistance to chemicals and oils, making it ideal for both stationary and flexible installations.
€13.54
per item
PRSMV 3-06/20 M - 69K
M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset
The M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset is designed for reliable connectivity in industrial environments. This cordset features a male, straight, 3-pin, A-coded connector housed in an orange PVC body. The durable design ensures it can handle up to 50 V AC / 60 V DC, with a rated current of 4 A. The cordset includes a high-quality, orange PVC cable with three conductors of 0.34 mm², ensuring efficient signal transmission and robustness in demanding applications. The PVC outer material provides flexibility and resilience against mechanical stress and chemical exposure, making it suitable for various industrial applications such as automation systems and process control environments. With an IP rating of IP65, IP67, and IP69K, the cordset is protected against dust and water immersion, ensuring reliable performance in harsh conditions.
€47.59
per item
RSMWVK 3-338/2 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is an essential component for connecting sensors and actuators in automation applications. This cordset features a male, angled, 3-pin configuration with A-coding, designed for reliability and durability. It operates at a voltage of 50 V AC / 60 V DC and can handle a current of up to 2 A, making it suitable for various industrial environments. The body is translucent, ensuring visibility and ease of use, while the black PUR cable is robust and flexible with a conductor size of 0.14 mm² and three wires. The connector type is a single-ended cordset with an attachment type of a coupling screw, ensuring secure connections.
Benefits of this cordset include high resistance to chemicals and oils, as well as good cold flexibility, making it ideal for harsh environments. It is rated IP65, IP67, and IP69K, ensuring protection against dust and moisture, and has a long service life with more than 2 million bending cycles. The contact resistance is less than 10 mOhm, and it offers excellent insulation resistance over 10^9 Ohm.
Applications of this cordset include its use in factory automation, machinery, and equipment that require reliable sensor and actuator connectivity. Its compliance with the IEC 61076-2-104 standard ensures it meets industry requirements, and its polyurethane (PUR) cable jacket provides durability in challenging conditions. This product is especially suited for applications where flexibility and resistance to environmental factors are crucial.
€14.50
per item
RSM 3-224/0,3 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is an ideal solution for various industrial connectivity requirements. Featuring a male, straight, 3-pin A-coded connection, this cordset provides a reliable and secure attachment with its translucent body. Designed to handle up to 50 V AC / 60 V DC and 4 A, it ensures effective power transfer in demanding conditions. The black polyurethane (PUR) cable with 0.34 mm² conductors offers durability and flexibility, supporting a wide range of installations. With an IP65/IP67 rating, it ensures high protection against dust and water, making it suitable for harsh environments. Applications range from sensor and actuator connection to automation systems, ensuring efficient signal and power transmission. This cordset meets IEC 61076-2-104 standards and ensures compliance with various safety and environmental regulations, making it a reliable choice for robust industrial applications.
€12.07
per item
RSMWV 3-224/10 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is an essential component designed for reliable connectivity in industrial automation systems. This specific variant features a male, angled 3-pin configuration, A-coded, within a translucent body that accommodates various environmental conditions. It supports a rated voltage of 50 V AC or 60 V DC and a current of up to 4 A. Constructed with a robust PUR black cable and three wires with 0.34 mm² cross-sectional area, this cordset promises high durability and operational efficiency. The product is unshielded and incorporates a coupling screw attachment for secure and reliable connections. It meets IP65, IP67, and IP69K protection degrees, ensuring high resistance against water and dust ingress. The ambient operational temperature ranges from -40 °C to +90 °C, enhancing its suitability for diverse industrial applications.
€24.29
per item
RSMV 3-106/40 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is designed for reliable sensor and actuator connectivity. Featuring a male, straight, 3-pin, A-coded translucent body, it is suitable for 50 V AC and 60 V DC applications with a current rating of 4 A. The cordset includes a durable grey PVC cable with three conductors, each 0.34 mm², providing secure and consistent electrical performance. Rated for IP65 and IP67 protection, it withstands moisture and dust ingress, and operates efficiently in temperatures ranging from -40 °C to +90 °C.
€52.87
per item
RSMWV 4-07/5 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset provides reliable and efficient connectivity with its angled 4-pin male design, suitable for various applications. This cordset is A-coded and supports a voltage of 30 V AC/DC with a current rating of 4 A. Its translucent TPU molded body ensures durability and visibility. The PVC orange cable with 0.25 mm² 4-wire configuration supports easy installation and use in diverse environments. Rated with an IP65 and IP67 protection degree, this cordset is perfect for both industrial and technical setups. Additionally, it offers excellent oil and chemical resistance, ensuring long-lasting performance.
€17.27
per item
PRSMWV 4-07/20 M - 69K
M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset
The M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset is designed for robust connections in industrial environments. Featuring a male, angled, 4-pin connector with A-coding, it’s built to support both AC and DC operations at 30V and 4A. The orange PVC cable is flexible, durable, and composed of 4 wires with a 0.25 mm² conductor size. Rated with IP65, IP67, and IP69K protection standards, this cordset ensures reliable performance even in harsh conditions. It has a mating cycle rating of up to 100 and can operate within a temperature range of -25°C to +70°C. Suitable for diverse applications, from sensor connections to actuator interfaces, it offers resilience against chemicals and oils due to its high-quality materials, including the stainless steel coupling screw and Cu/Au plated contacts.
€51.00
per item
RSMV 4-251/5 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset features a straight, 4-pin male connector with A-coding and a translucent body. Designed for robust performance, it supports a voltage of 30 V AC/DC and a current of 4A. The cordset is equipped with a durable PUR orange cable, consisting of 4 wires with a 0.34 mm² cross-sectional area. This product is ideal for use in sensor and actuator applications, providing dependable performance even in challenging environments. The assembly meets several key quality and safety standards, including UL 94 HB flammability and IP65, IP67, IP69K protection ratings, ensuring high reliability and compliance with international standards.
€19.26
per item
G 20 KW 3 M 1,5m
G-Series Power Single-Ended Cordset
The G-Series Power Single-Ended Cordset is designed for high-performance connectivity in demanding applications. Featuring a male, angled 3-pin configuration (2+PE) and a robust grey body, this cordset is capable of handling 230 V AC/DC and a maximum current of 10 A. The attached grey PVC cable has a conductor size of 0.75 mm², ensuring reliable power transmission. This product is part of the Hirschmann G Series and is built to meet DIN EN 61984 standards, offering an IP65 protection rating when properly mounted and locked. The ambient operating temperature range from -40°C to +90°C makes it suitable for various environmental conditions. Constructed with high-quality materials such as CuZn for contact base and PA GF for molded body, this cordset provides durability and longevity. The cordset is specifically designed for fixed and flexible installations with minimal bending radii and is RoHS compliant. Ideal for industrial automation, machinery, and power distribution applications.
€15.97
per item
PRSMWV 3-06/20 M - 69K
M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset
The M8 F&B (PVC) Sensor/Actuator Single-Ended Cordset is a reliable and efficient solution for industrial automation. Featuring a male, angled, 3-pin design with A-coding, this cordset supports up to 50 V AC and 60 V DC with a maximum current rating of 4 A. Its orange body and PVC orange cable, comprising three wires of 0.34 mm² each, ensure durability and visibility in demanding environments. The cordset offers a robust connection with an IP65, IP67, and IP69K protection degree, ensuring resistance to dust and water, making it suitable for harsh industrial conditions. With a coupling screw attachment type, it facilitates easy and secure installations. Additionally, the cordset exhibits good chemical and oil resistance, enhancing its longevity and reliability in various applications, including automation and sensor/actuator interfacing.
€47.59
per item
RSMWV 5-507/5 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset is designed for reliable connections in industrial environments. This male, angled, 5-pin B-coded connector is equipped with a translucent body, operating at 50 V AC / 60 V DC, 3 A. With an unshielded design, it ensures efficiency in various automation processes. The black PVC cable is durable, with a 5-wire configuration at 0.25 mm², ensuring optimal performance. The connector boasts a high protection degree of IP65 and IP67, making it suitable for harsh conditions. Ideal for integrating sensors or actuators in setups requiring dependable connections, it meets IEC 61076-2-104 standards.
€22.35
per item
RSM 4-225/0,2 M
M8 Snap-In Sensor/Actuator Single-Ended Cordset
The M8 Snap-In Sensor/Actuator Single-Ended Cordset is designed with a straight, 4-pin male connector that is A-coded and features a translucent body. It operates at 30V AC/DC with a current rating of 4A, making it suitable for various industrial applications. The cordset includes a durable PUR black cable comprising 4 wires, each with a conductor size of 0.34 mm². This unshielded cordset is noted for its robust construction, providing a reliable connection with an IP65/IP67 protection rating when combined with appropriate female connectors. It is built to handle extreme temperatures and offers excellent resistance to environmental stresses such as microbes and hydrolysis.
€12.94
per item
RSMWV 3-06/5 M
M8 Standard Sensor/Actuator Single-Ended Cordset
The M8 Standard Sensor/Actuator Single-Ended Cordset features a male angled 3-pin connection with A-coding. It is designed for 50 V AC / 60 V DC, and supports up to 4 A. The translucent body ensures visibility during connection and the robust design is IP65/IP67 rated, ensuring reliable performance in demanding environments. The cordset includes a PVC orange cable with 3 wires of 0.34 mm² each.
This cordset excels in reliability and durability, withstanding operating temperatures from -40°C to +90°C and up to 100 mating cycles. The materials used, including Cu/Au plated contacts and TPU molded body, provide excellent electrical conductivity and mechanical strength. Rated IP65/IP67, it ensures excellent protection against dust and moisture.
Ideal for industrial automation systems and sensor/actuator applications, this single-ended cordset simplifies installation and maintenance in hard-to-reach areas. The angled design is perfect for space-constrained setups.
€15.90
per item
