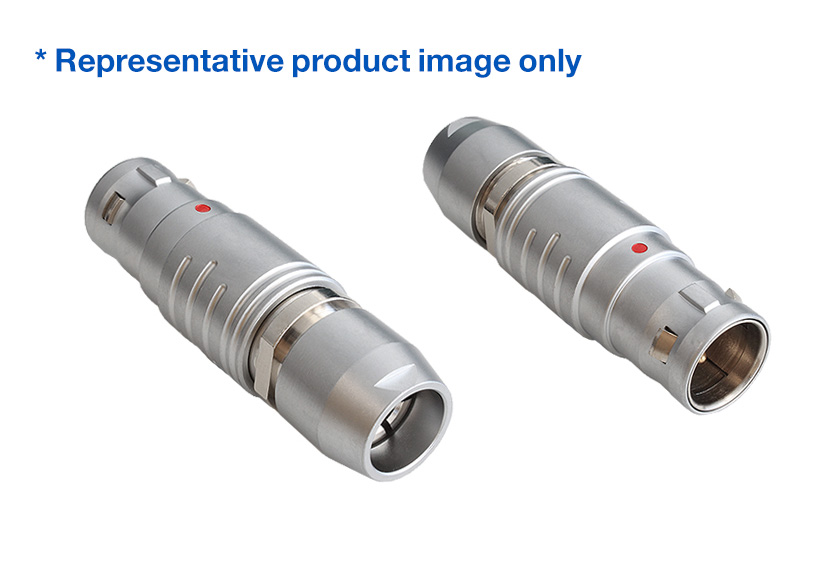

6 Contacts Straight Plug 3X Series Push Pull Connector
€118.25*
Prices excl. VAT plus shipping costs
Article number:
PPCFGG3B06CLAD
Manufacturer number:
PPCFGG3B06CLAD
Brand:
Bulgin
Minimum order quantity:
7
Product information
3X Series Straight Plug Push Pull Connector
Downloads
Datasheet (EN)Specifications
| Pin-to-Pin Terminal Voltage: | 1600V |
|---|---|
| Operating Humidity: | 0.95 |
| Number of Contacts: | 6 Contacts |
| Operating Temperature (min.): | -50°C |
| Pin-Shell Terminal Voltage: | 1150V |
| Push-Pull Connector Series: | 3X Series |
| RoHS Compliant: | |
| Vibration Resistance (min.): | 10Hz |
| Vibration Resistance (max.): | 2000Hz |
| Terminal Diameter: | 1.6mm |
| Shock Resistance: | 100g |
| Shielding Efficiency (min.): | 75dB |
| Shielding Efficiency (max.): | 40dB |
| Salt Spray Corrosion Test: | 48h |
| Cable Entry Size (min.): | 6.3mm |
| Operating Temperature (max.): | +200°C |
| Diameter Over Coupling Ring (mm): | 18mm |
| Current (max.): | 17A |
| Contact Pin Material: | Brass gold plated 3u" |
| Durability: | >4500 cycles |
| Function: | Straight Plug Push Pull Connector |
| Contact Accommodation (max.) (mm²): | 1.5mm2 |
| Contact Accommodation (max.) (AWG): | 16AWG |
| Cable Entry Size (max.): | 7.0mm |
| Locking Sleeve Material: | Brass plated |
| IP Rating: | IP50 |
| Insulator: | PPS |
| Unique No.: | blgPPCFGG3B06CLAD |
