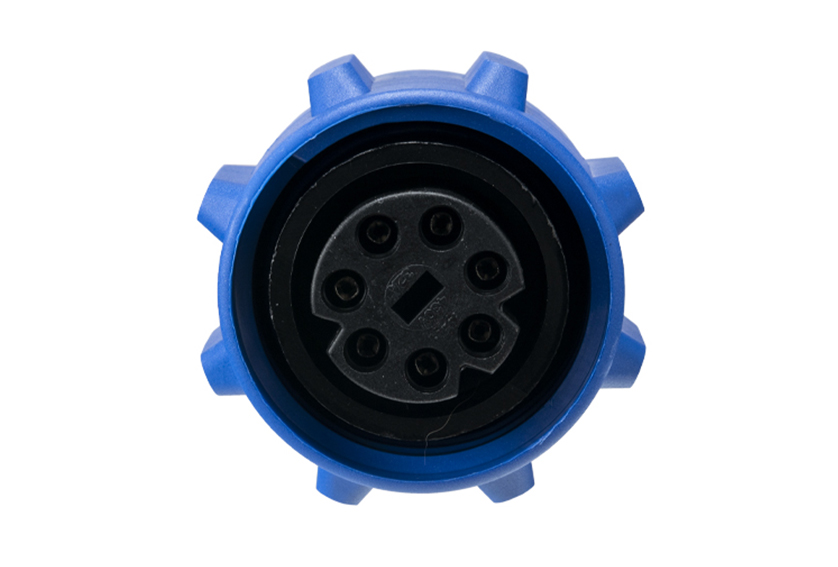

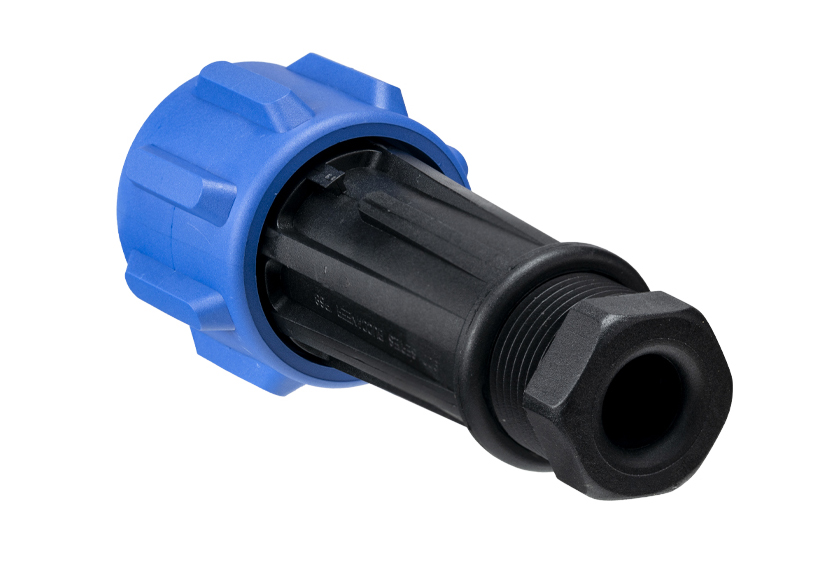

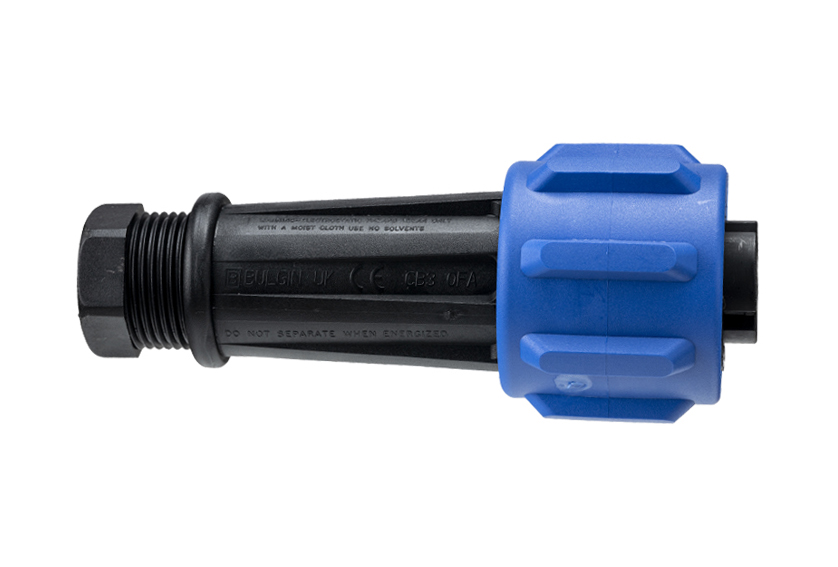

PX0911 Series 7 Contact Socket 13mm-15mm Cable (Yellow Gland)
€72.88*
Prices excl. VAT plus shipping costs
Article number:PX0911/07/S
Manufacturer number:PX0911/07/S
Brand:Bulgin
Minimum order quantity:2
Datasheet (EN)Specifications
| approvals: | UL |
|---|---|
| body_material: | Polyamide (PA) |
| body_material_type: | Plastic Body |
| contact_type: | Socket Contact |
| coupling_type: | Screw |
| current_max: | 32A |
| diameter_over_coupling_ring_mm: | 58mm |
| flamability_rating: | UL94V-0 |
| function: | Flex Cable Connector |
| ip_rating: | IP68 |
| max_cable_entry_size: | 15mm |
| max_contact_accomodation_awg: | 13AWG |
| max_contact_accomodation_mm2: | 4mm2 |
| max_operating_temperature: | +85°C |
| min_cable_entry_size: | 13mm |
| min_contact_accomodation_awg: | 10AWG |
| min_contact_accomodation_mm2: | 2.6mm2 |
| min_operating_temperature: | -40°C |
| number_of_contacts: | 7 Contacts |
| uniek_nr: | blgPX0911/07/S |
| voltage_max: | 430V |
