4 mm safety socket gray - SLB4-F6,3/N-X gray
€2.43*
Prices excl. VAT plus shipping costs
Article number:
SLB4-F6,3/N-X gray
Manufacturer number:
49.7046-28
Brand:
Stäubli
Minimum order quantity:
1
Product information

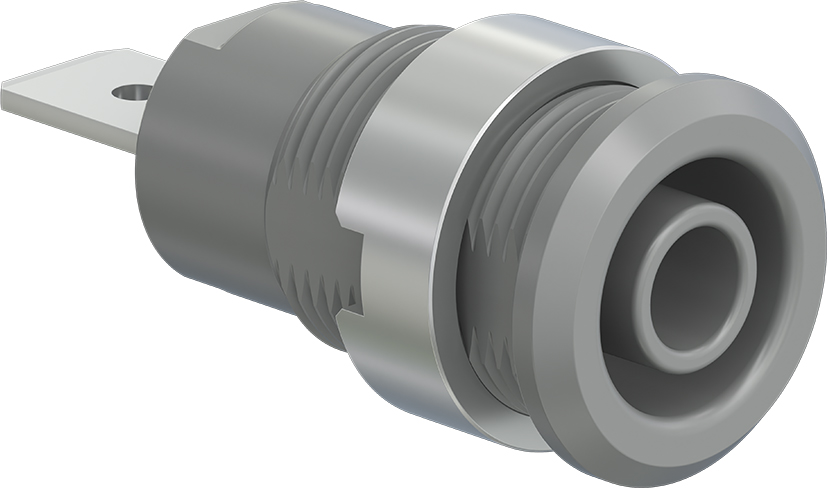

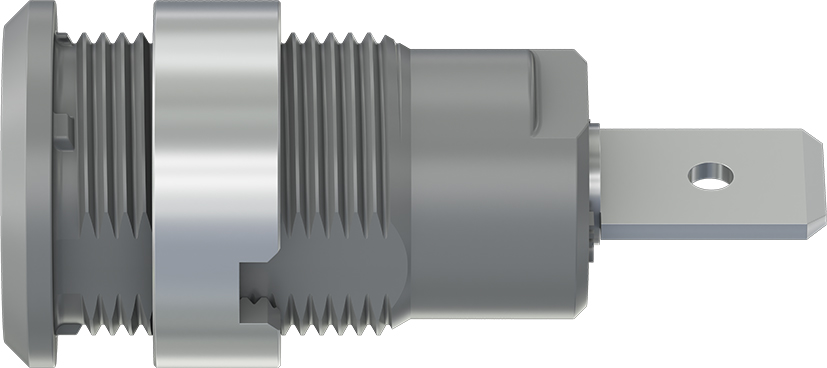

Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. Insulation material UL94 V-0. The socket is screwed into pre-drilled panels of plastic, metal, etc. Flat connecting tab 6.3 mm x 0.8 mm.
Downloads
Datasheet (EN)Specifications
| Type of accessory/spare part: | Connector |
|---|---|
| Accessory: | |
| Spare part: | |
| Set version: | |
| With case/bag: | |
| Plug in technique: | 4 mm safety plug |
| Insulating material: | Other |
| Max. working voltage: | 1000 V |
| Current carrying capacity: | 32 A |
| Measuring circuit category: | CAT IV |
| Unique No.: | tnm49.7046-28 |
