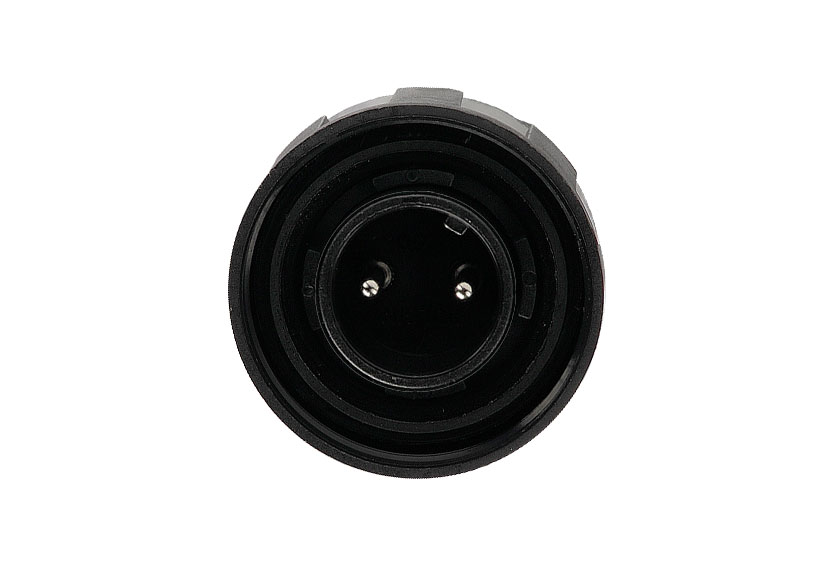

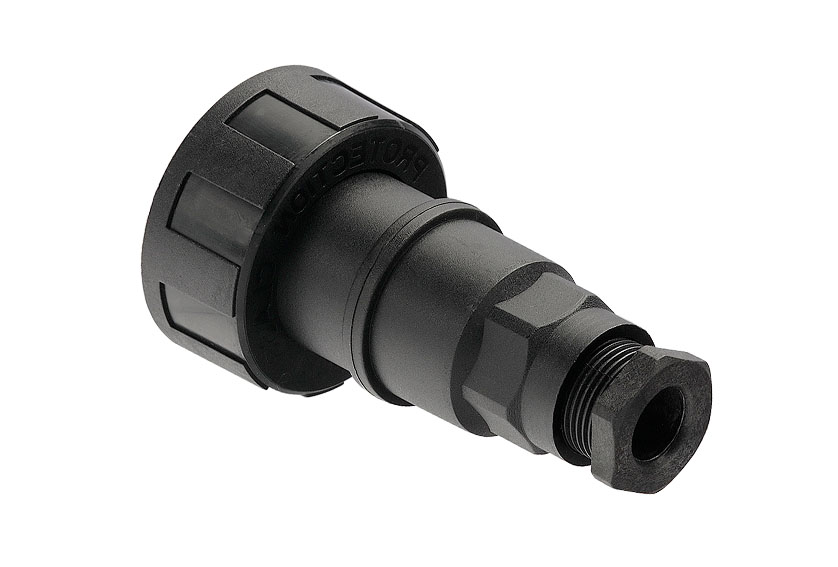

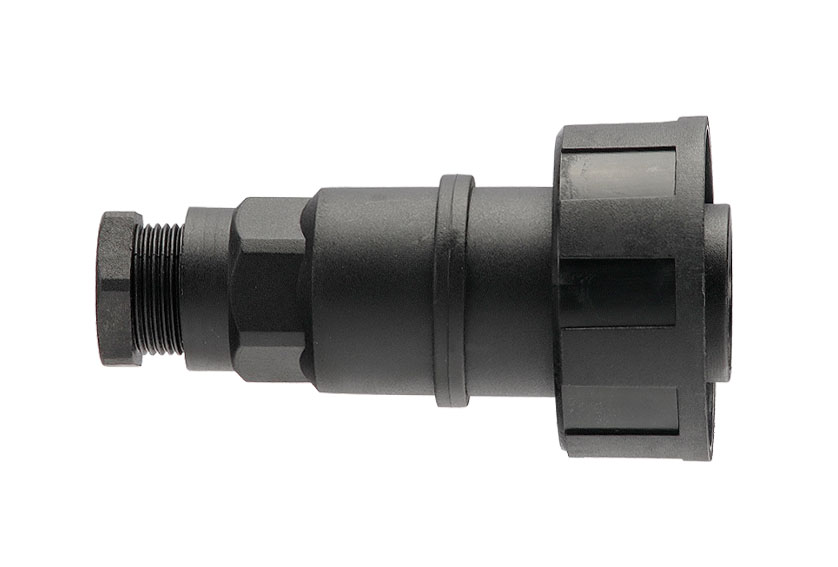

2 POLE FLEX PLUG
€18.18*
Prices excl. VAT plus shipping costs
Article number:PX0736/P
Manufacturer number:PX0736/P
Brand:Bulgin
Minimum order quantity:10
Datasheet (EN)Specifications
| approvals: | CSA, UL, VDE |
|---|---|
| body_material: | Polyamide (PA)- Glass Filled |
| body_material_type: | Plastic Body |
| contact_type: | Plug Contact |
| coupling_type: | Screw |
| current_max: | 10A, 12A |
| diameter_over_coupling_ring_mm: | 38.1mm |
| flamability_rating: | UL94HB |
| function: | Flex Cable Connector |
| insert_colour: | Black Insert And Gland Nut |
| ip_rating: | IP68, IP69K |
| max_cable_entry_size: | 8mm |
| max_contact_accomodation_awg: | 14AWG |
| max_contact_accomodation_mm2: | 4mm2 |
| max_operating_temperature: | +70°C |
| min_cable_entry_size: | 6mm |
| min_contact_accomodation_awg: | 12AWG |
| min_contact_accomodation_mm2: | 2.5mm2 |
| min_operating_temperature: | -20°C |
| number_of_contacts: | 2 Contacts |
| uniek_nr: | blgPX0736/P |
| voltage_max: | 277V |
