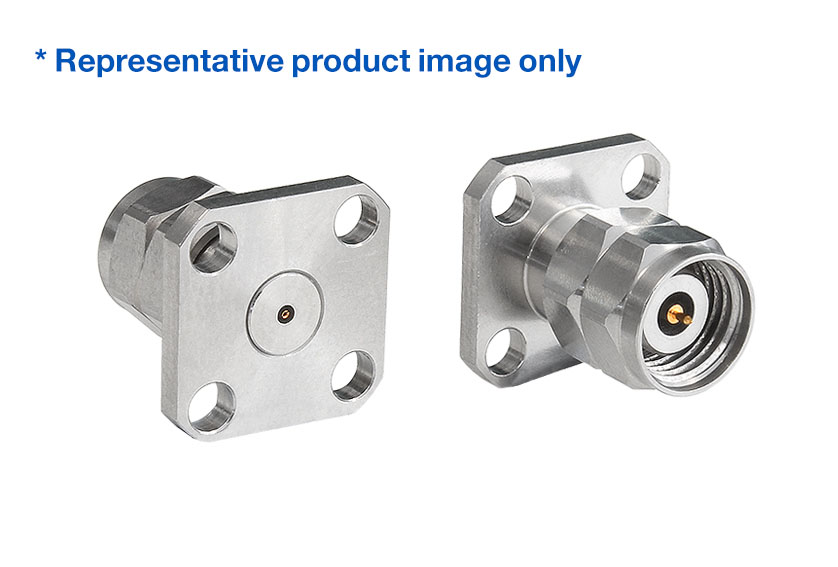

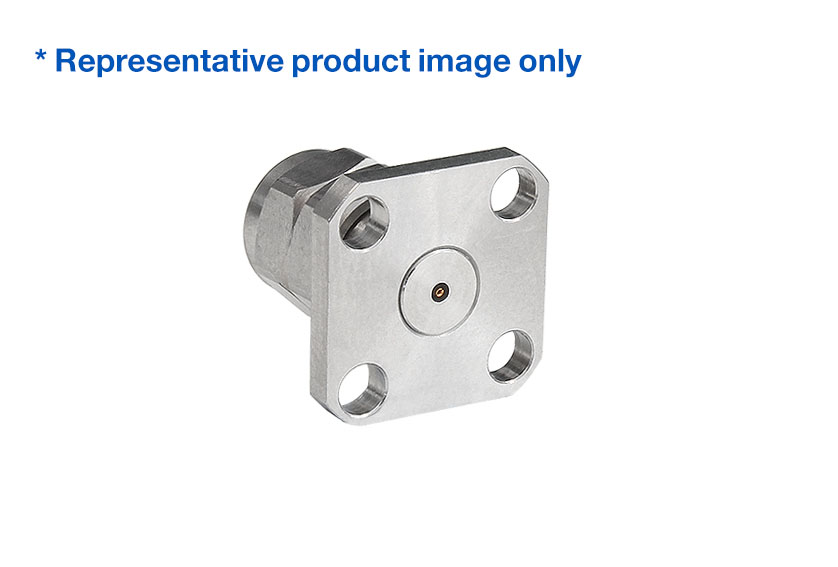

2.4mm Plug Straight 4 Hole Flange RF Connector
€125.43*
Prices excl. VAT plus shipping costs
Article number:RF240A4PCCB
Manufacturer number:RF240A4PCCB
Brand:Bulgin
Minimum order quantity:25
Datasheet (EN)Specifications
| body_length: | 12.70mm |
|---|---|
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >20N |
| contact_pin_material: | Beryllium Copper |
| dielectric_withstanding_voltage: | >500V |
| durability: | >500 cycles |
| flange_mount_length: | 12.70mm |
| function: | Male Flange Mount RF Connector |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | UNFILLED ULTEM 1000/PEI |
| max_coupling_torque: | 1.10Nm |
| max_operating_frequency: | 50GHz |
| max_operating_temperature: | +85°C |
| min_coupling_torque: | 0.80Nm |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -40°C |
| mount_hole_distance: | 8.60mm |
| socket_diameter: | 0.30mm |
| uniek_nr: | blgRF240A4PCCB |
| voltage_max: | 150V |
| vswr: | <1.30 |
