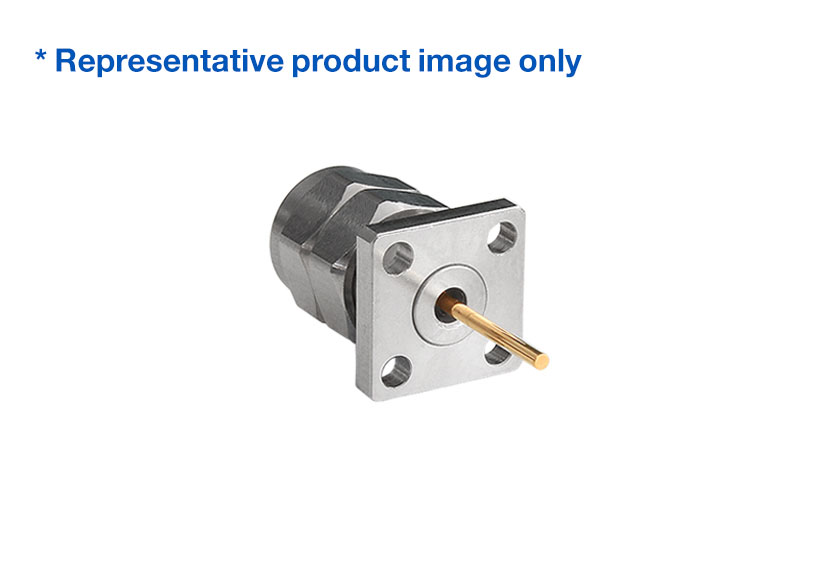

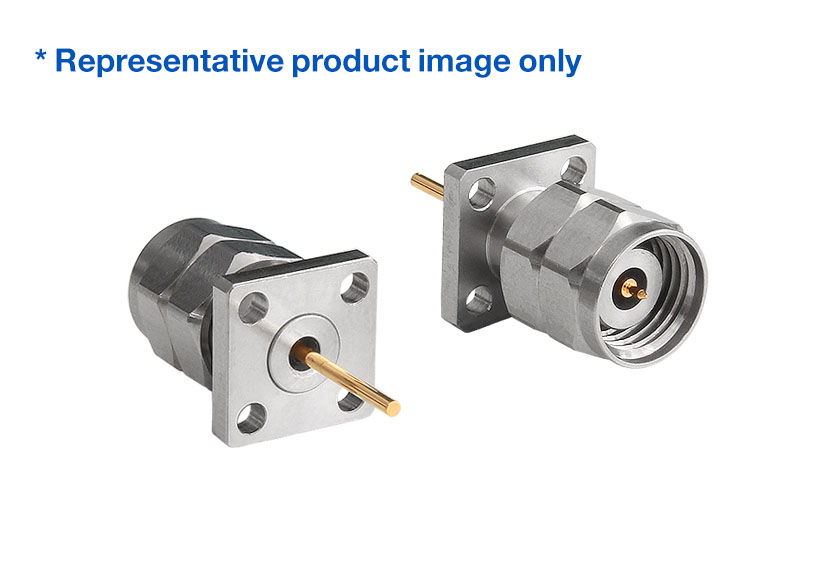

2.4mm Jack Straight 4 Hole Flange RF Connector
€117.08*
Prices excl. VAT plus shipping costs
Article number:
RF240A4JCCGM
Manufacturer number:
RF240A4JCCGM
Brand:
Bulgin
Minimum order quantity:
25
Product information
2.40mm Series Pin without Extended PTFE 4 Hole Flange
Downloads
Datasheet (EN)Specifications
| Operating Temperature (min.): | -40°C |
|---|---|
| Mounting Hole Distance: | 8.60mm |
| Pin Diameter: | 0.86mm |
| Pin Length: | 8.75mm |
| Voltage (max.): | 150V |
| VSWR: | < 1.30 |
| Operating Frequency (min.): | 0GHz |
| Coupling Torque (min.): | 0.80Nm |
| Operating Temperature (max.): | +85°C |
| Body Length: | 10.80mm |
| Body Material: | Stainless Steel Passivation |
| Centre Contact Retention Force: | >20N |
| Contact Pin Material: | Beryllium Copper |
| Dielectric Withstanding Voltage: | >500V |
| Durability: | >500 cycles |
| Flange Mount Length: | 12.70mm |
| Function: | Female Flange Mount RF Connector |
| Impedance: | 50Ohm |
| Insulation Resistance: | >5000MOhm |
| Insulator: | UNFILLED ULTEM 1000/PEI |
| Coupling Torque (max.): | 1.10Nm |
| Operating Frequency (max.): | 50GHz |
| Unique No.: | blgRF240A4JCCGM |
