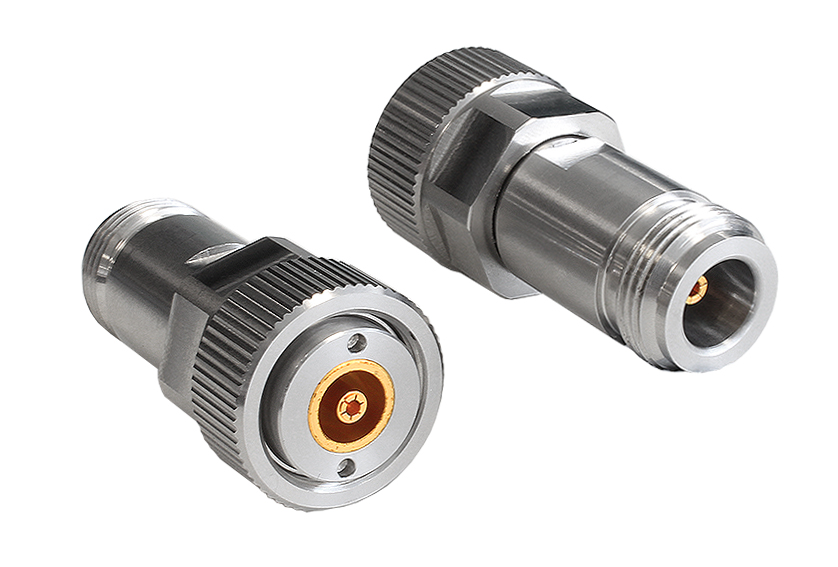

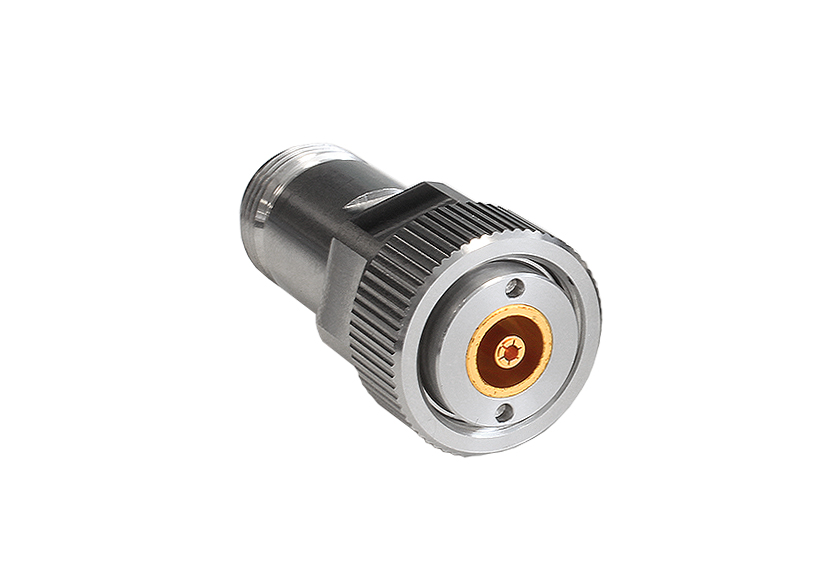

APC 7mm to N Type Jack RF Adapter
On Request
Vraag product aanPrices excl. VAT plus shipping costs
Article number:RFAAAPC7NJ
Manufacturer number:RFAAAPC7NJ
Brand:Bulgin
Minimum order quantity:50
Datasheet (EN)Specifications
| body_length: | 47.40mm |
|---|---|
| body_material: | Stainless Steel Passivation |
| centre_contact_captivation: | 28N |
| centre_contact_retention_force: | >26.7N |
| contact_pin_material: | Beryllium Copper |
| dielectric_withstanding_voltage: | >2500V |
| durability_rpc_7: | >5000 cycles |
| durability_rpc_n: | >500 cycles |
| function: | Male to Female RF Adapter |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | UNFILLED ULTEM 1000/PEI |
| max_operating_frequency: | 18GHz |
| max_operating_temperature: | +85°C |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -40°C |
| thread_size: | 11/16 24UNEF 2A & 5/8 24UNEF 2A |
| uniek_nr: | blgRFAAAPC7NJ |
| voltage_max: | 1000V |
| vswr: | <1.15 |
