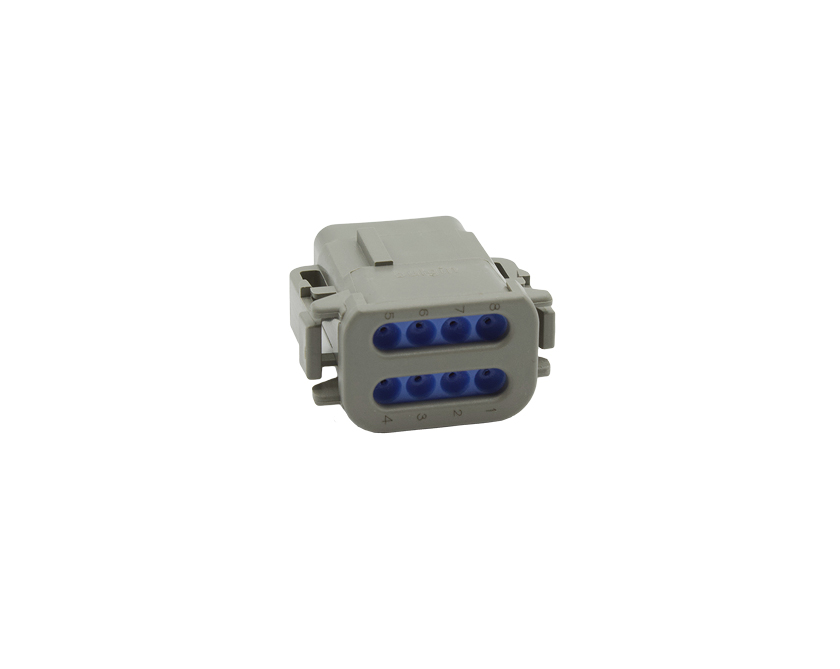

8 Contacts Female Miniature Rectangular Grey Connector - PEC
On Request
Vraag product aanPrices excl. VAT plus shipping costs
Article number:
PX0012S08AGY
Manufacturer number:
PX0012S08AGY
Brand:
Bulgin
Minimum order quantity:
1
Product information
8 Contacts Female Miniature Rectangular Grey Connector - PEC
Downloads
Datasheet (EN)Specifications
| Body Colour: | Grey |
|---|---|
| Operating Temperature (max.): | +125°C |
| Operating Temperature (min.): | -55°C |
| Number of Contacts: | 8 Contacts |
| RoHS Compliant: | |
| IP Rating: | IP68 |
| Insulation Resistance: | >1000MOhms |
| Body Material: | Polycarbonate/Polybutylene Terephthalate (PC/PBT) |
| Body Material Type: | Plastic Body |
| Contact Type: | Socket Contact |
| Coupling Type: | Snap-in |
| Current (max.): | 7.5A |
| Dielectric Withstanding Voltage: | 1500V |
| Durability: | >100 Cycles |
| Function: | Straight Male Connector |
| Voltage (max.): | 250V |
| Unique No.: | blgPX0012S08AGY |
