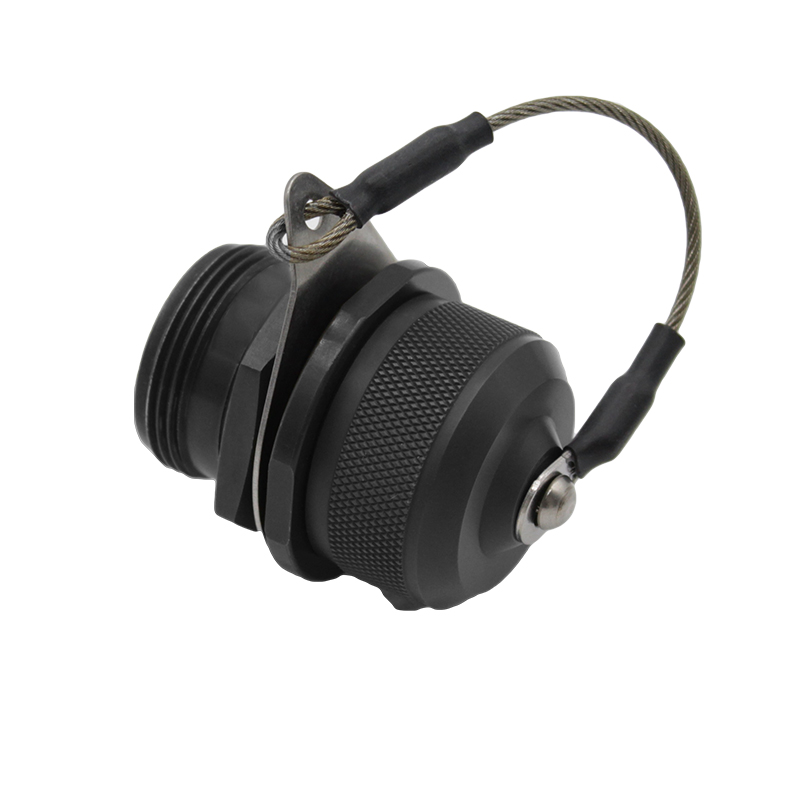

Black Electroless Nickel Aluminium Jam Nut Connector with Cap - EMI Shielded - Cat6a Female
€442.39*
Prices excl. VAT plus shipping costs
Article number:PXM06106FENBKSH
Manufacturer number:PXM06106FENBKSH
Brand:Bulgin
Minimum order quantity:1
Product information
Black Electroless Nickel Aluminium Jam Nut Connector with Cap - EMI Shielded - Cat6a Female
Downloads
Datasheet (EN)Specifications
| body_colour: | Black |
|---|---|
| body_length: | 32.6mm |
| body_material: | Aluminium |
| body_material_type: | Metal Body |
| connection_method: | Latching |
| contact_type: | Female |
| coupling_type: | Screw |
| diameter_over_coupling_ring_mm: | 35mm |
| durability: | >500 cycles |
| ethernet_category: | Cat 6a |
| function: | Jam Nut Connector |
| ip_rating: | IP68 |
| material_finish: | Electroless Nickel |
| max_operating_frequency: | +100°C |
| max_panel_thickness: | 5mm |
| min_operating_temperature: | -40°C |
| min_panel_thickness: | 1.5mm |
| operating_humidity: | 43°C - 98% |
| rohs_compliant: | |
| salt_spray_corrosion_test: | 500hr |
| shock_resistance: | 100G - 6ms |
| uniek_nr: | blgPXM06106FENBKSH |
