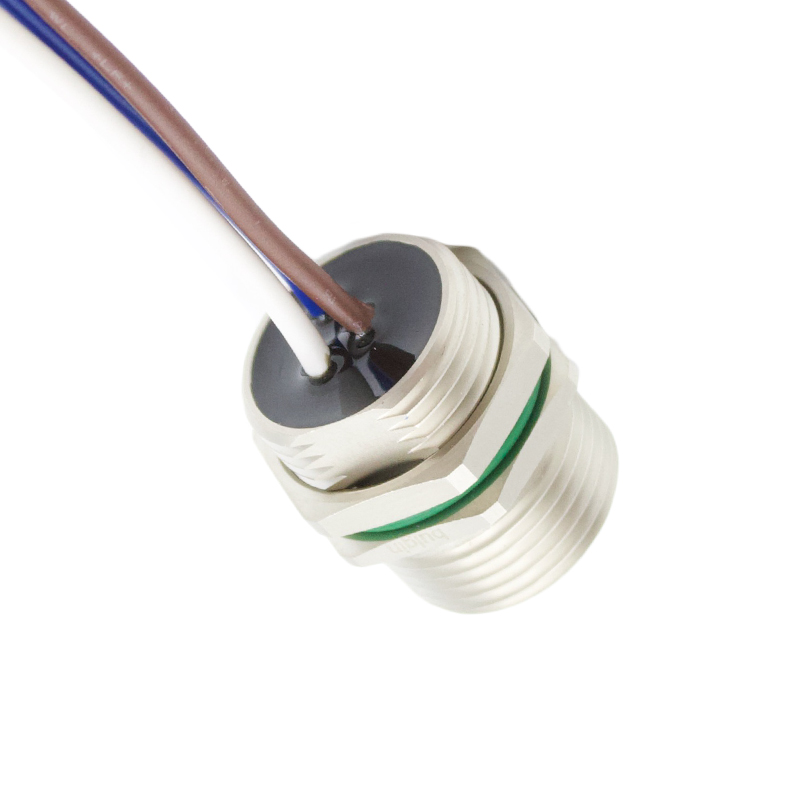

3 Contacts 7/8" Front Panel Mounting Male 500mm Flying Leads
€49.96*
Prices excl. VAT plus shipping costs
Article number:PXMBNI78FPM03AFL78005
Manufacturer number:PXMBNI78FPM03AFL78005
Brand:Bulgin
Minimum order quantity:2
Datasheet (EN)Specifications
| cable_length: | 0.5m |
|---|---|
| connection_method: | Solder |
| contact_type: | Plug Contact |
| current_max: | 12A |
| durability: | >100 Cycles |
| function: | Front Panel Mounting Male Connector with Flying Leads |
| insulation_resistance: | >100MOhm |
| ip_rating: | IP67 |
| max_operating_temperature: | +80°C |
| min_operating_temperature: | -25°C |
| number_of_contacts: | 3 Contacts |
| pin_layout_code: | A Code |
| rohs_compliant: | |
| thread_size: | 7/8-16UN |
| uniek_nr: | blgPXMBNI78FPM03AFL78005 |
| voltage_max: | 300V |
