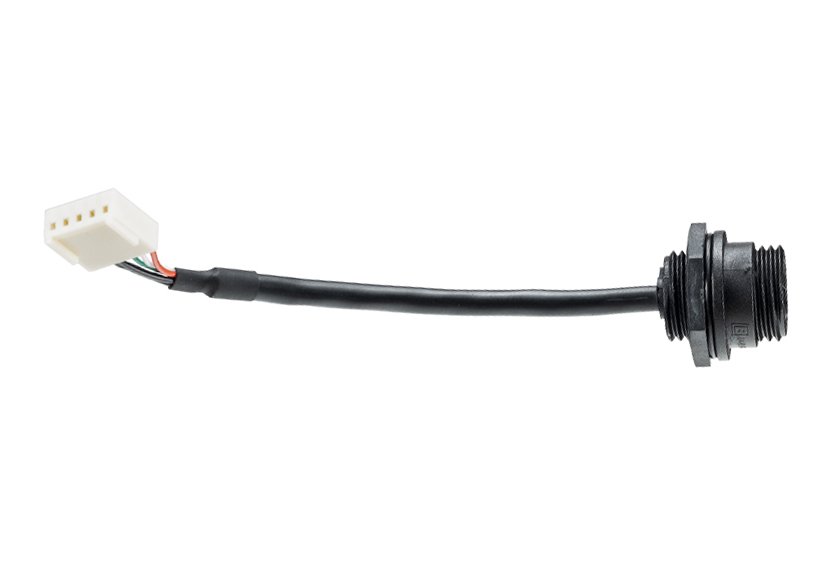

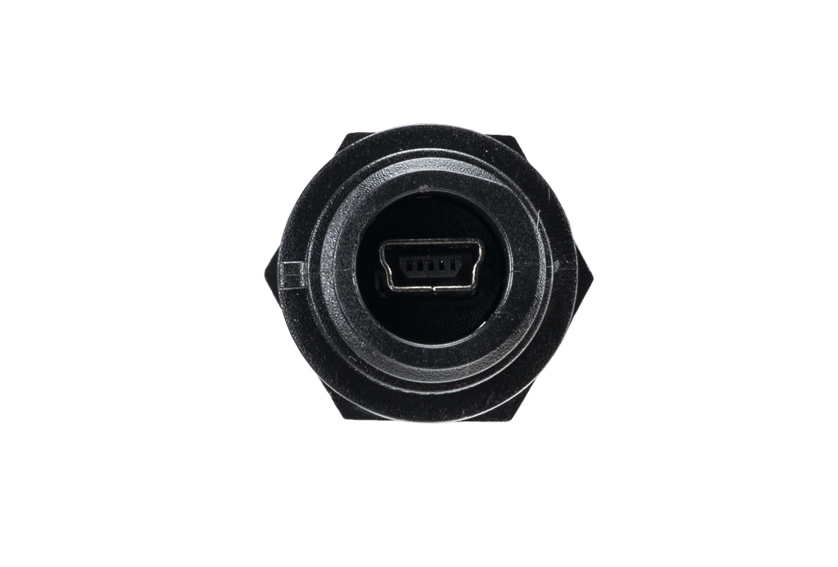

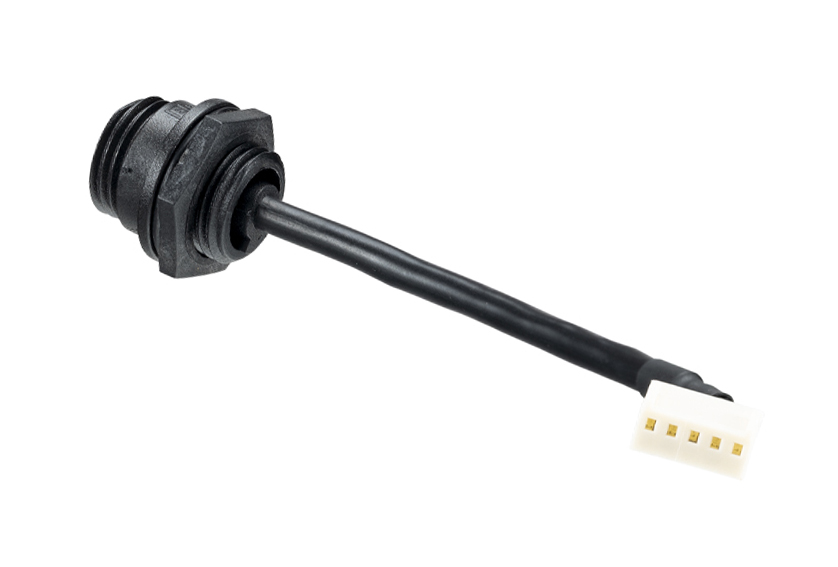

MINI B CHASSIS TO CRIMP
€13.56*
Prices excl. VAT plus shipping costs
Article number:
PX0443
Manufacturer number:
PX0443
Brand:
Bulgin
Minimum order quantity:
10
Downloads
Datasheet (EN)Specifications
| Approvals: | CSA, UL, VDE |
|---|---|
| Operating Temperature (max.): | +70°C |
| Operating Temperature (min.): | 0°C |
| Number of Contacts: | 5 Contacts |
| IP Rating: | IP68, IP69K |
| Function: | Front Panel Mount Connector |
| Body Material: | Polycarbonate/Polybutylene Terephthalate (PC/PBT) |
| Body Material Type: | Plastic Body |
| Contact Type: | Socket Contact |
| Coupling Type: | Screw |
| Current (max.): | 1A |
| Data Cable Type: | USB Sealed Mini B Socket to 5 Way Crimp |
| Diameter Over Coupling Ring (mm): | 19.1mm |
| Flammability Rating: | UL94V-0 |
| Voltage (max.): | 42V |
| Unique No.: | blgPX0443 |
