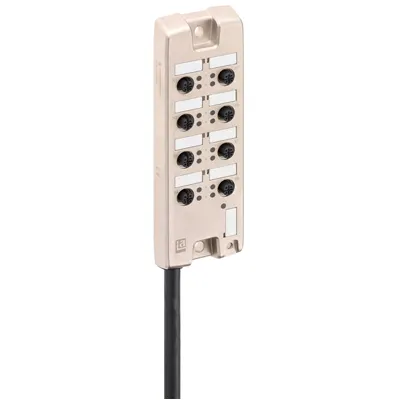

LioN-R passive, 8 ports, LED

The LioN-R passive module with 8 ports and LED indicators is ideal for various automation tasks. It features a sturdy metallic housing made of zinc die-cast, ensuring durability and longevity. Designed to withstand extreme environmental conditions, the module operates efficiently between -40°C and 80°C, compliant with IP65/IP67 ratings for dust and water resistance. The device is equipped with M12, 5-poles, A-coded I/O connections, offering single I/O per port, with a system supply indicator via a green LED. The module operates on a 24 V DC actuator supply voltage (10 V DC to 30 V DC range), suitable for multiple sensor types including PNP. All ports support 2-, 3-, and 4-wire input wiring configurations, with galvanically isolated digital output channels ensuring reliable operation.

One of the main benefits of the LioN-R passive module is its robust build, crafted to handle extensive operational demands in industrial environments. The zinc die-cast body with nickel matt plating reinforces its resistance against mechanical stress, while the PA / TPU contact bearer material and FKM O-ring materials enhance its overall durability. The module's protection degree rating of IP65/IP67 confirms its capability to operate under challenging conditions, making it an excellent choice for both indoor and outdoor applications.

This module is versatile and can be utilized in various applications including factory automation, machinery, and process control systems. It is potted for better environmental protection and uses standard M6 x 25 / 30 screws for secure mounting. The device ensures safety and compliance with certifications like CE, RoHS, and cULus (UL 508). Its environmental resilience, high performance, and reliable connectivity make it an indispensable asset in creating a robust automation infrastructure.
