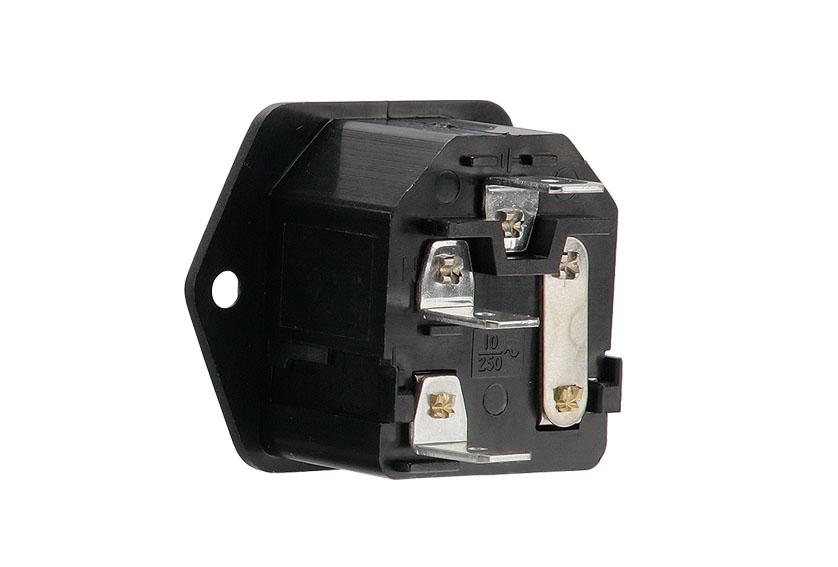

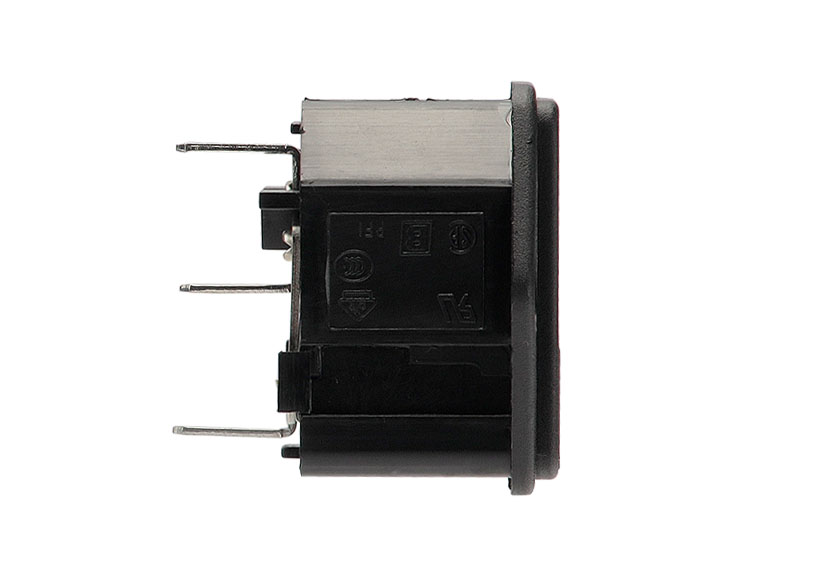

3 POLE FUSED INLET
€3.86*
Prices excl. VAT plus shipping costs
Article number:
PF0001/63
Manufacturer number:
PF0001/63
Brand:
Bulgin
Minimum order quantity:
30
Downloads
Datasheet (EN)Specifications
| Approvals: | CSA, ENEC, UL, VDE, CCC |
|---|---|
| Operating Temperature (max.): | +70°C |
| Operating Temperature (min.): | -40°C |
| Number of Contacts: | 3 Contacts |
| Body Material: | Nylon 66 |
| Current (max.): | 10A |
| Flammability Rating: | UL94V-0 |
| Function: | Flange Mount Fused Connector |
| IEC Connector Colour: | Black |
| IEC Connector Mates With: | PX0587,PX0587/SE,PX0588 |
| IEC EN 60620 Type: | EN60 320-1 Standard Sheet C14 Class I |
| Voltage (max.): | 250V |
| Unique No.: | blgPF0001/63 |
