4 Contacts Female Power Rectangular Grey Connector
€5.15*
Prices excl. VAT plus shipping costs
Article number:
PX1001P04GY
Manufacturer number:
PX1001P04GY
Brand:
Bulgin
Minimum order quantity:
1000
Product information

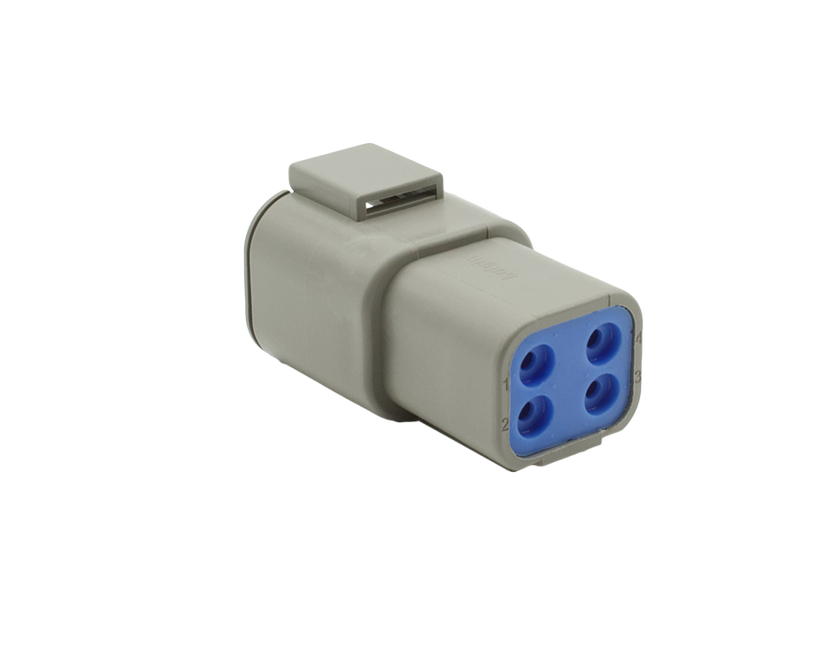

4 Contacts Female Power Rectangular Grey Connector
Downloads
Datasheet (EN)Specifications
| Body Colour: | Grey |
|---|---|
| Operating Temperature (max.): | +125°C |
| Operating Temperature (min.): | -55°C |
| Number of Contacts: | 4 Contacts |
| RoHS Compliant: | |
| IP Rating: | IP68 |
| Insulation Resistance: | >1000MOhms |
| Body Material: | Polycarbonate/Polybutylene Terephthalate (PC/PBT) |
| Body Material Type: | Plastic Body |
| Contact Type: | Plug Contact |
| Coupling Type: | Snap-in |
| Current (max.): | 25A |
| Dielectric Withstanding Voltage: | 1500V |
| Durability: | >100 Cycles |
| Function: | Straight Female Connector |
| Voltage (max.): | 200V |
| Unique No.: | blgPX1001P04GY |
