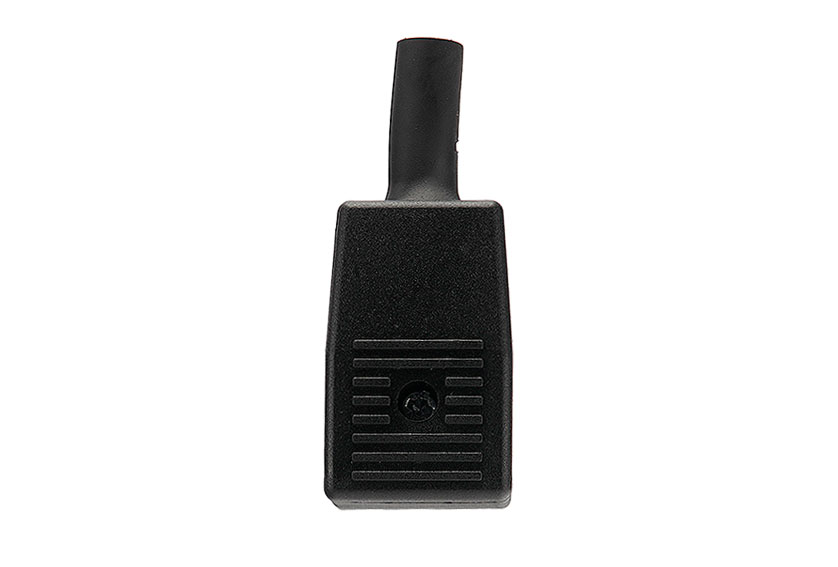

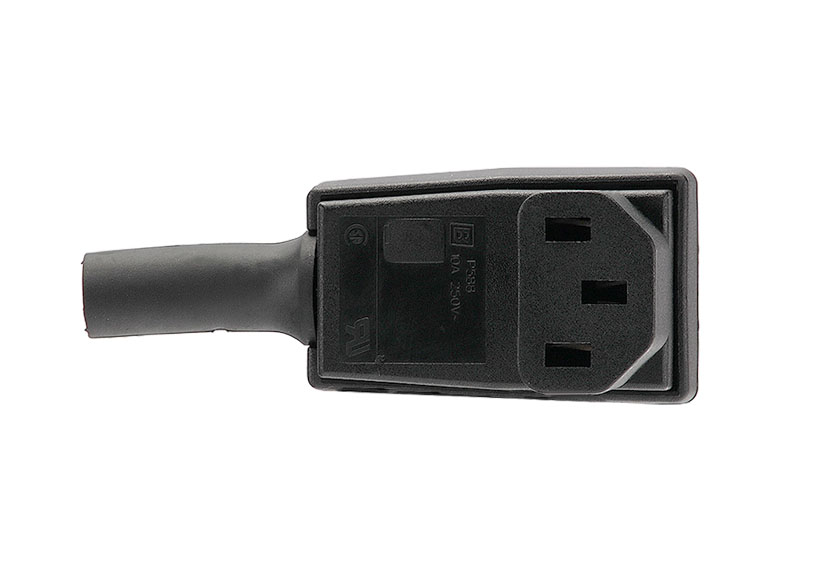

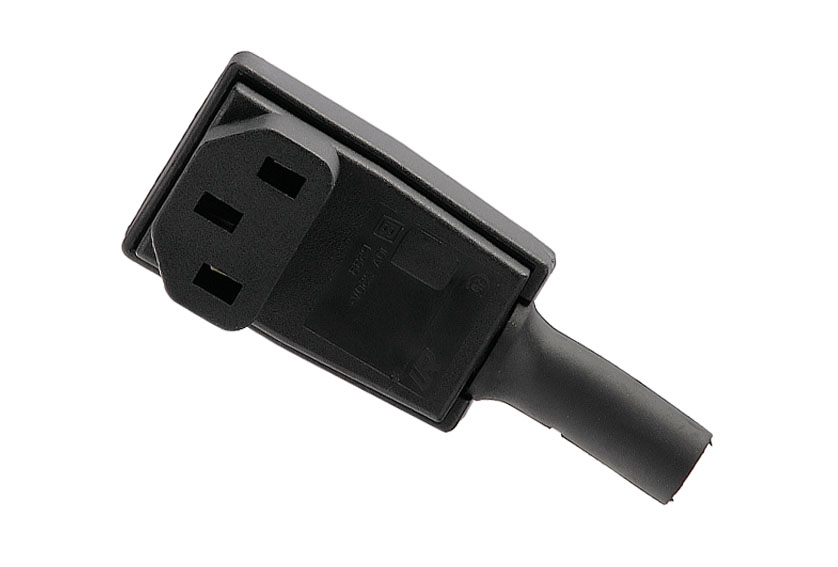

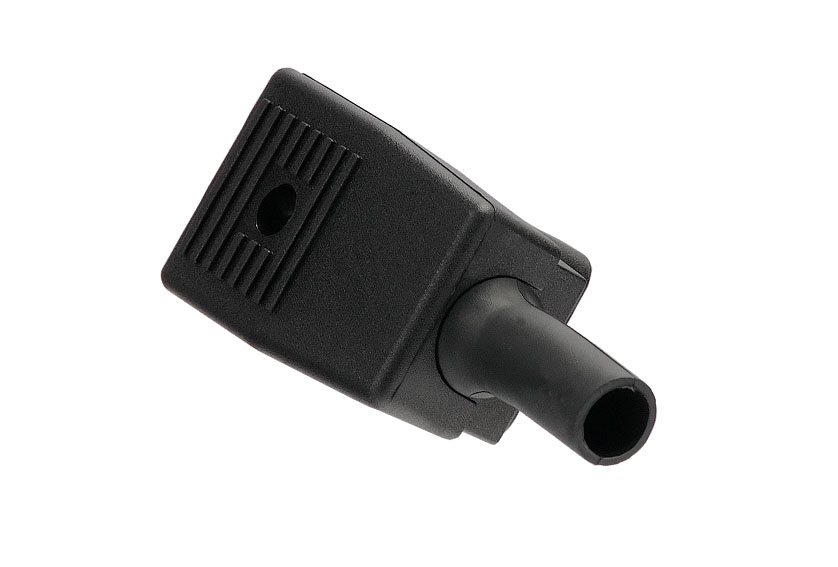

C13 IEC CONNECTOR
€9.78*
Prices excl. VAT plus shipping costs
Article number:PX0588
Manufacturer number:PX0588
Brand:Bulgin
Minimum order quantity:15
Downloads
Datasheet (EN)Specifications
| approvals: | CSA, UL, RCM |
|---|---|
| body_material: | Nylon 66 |
| current_max: | 10A |
| flamability_rating: | UL94V-0 |
| function: | Right Angle Female Connector |
| iec_connector_mates_with: | PX0575,PX0579,PX0580,PF0001,PF0011,PF0030,PF0033 |
| iec_en60620_type: | EN60 320-1 Standard Sheet C13 Class I |
| max_operating_temperature: | +70°C |
| min_operating_temperature: | -40°C |
| number_of_contacts: | 3 Contacts |
| uniek_nr: | blgPX0588 |
| voltage_max: | 250V |
