Sensor / Actuator Connectors
On Request
Vraag product aanPrices excl. VAT plus shipping costs
Article number:
RST 3-RKWT 4-3-659/1M
Manufacturer number:
600006336
Brand:
Lumberg Automation
Minimum order quantity:
1
Product information

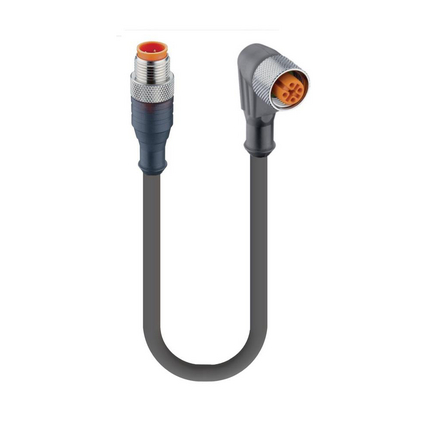

The Sensor / Actuator Connectors are designed for robust industrial use, featuring a cordset with double-ended M12 Standard connectors. These connectors include a straight male and an angled female, each with a 3-pole configuration, ensuring reliable connectivity. The connectors support a voltage of 250V and a current of 4A, making them suitable for power-demanding applications. The grey PVC 22 AWG cable enhances durability and flexibility, providing an efficient solution for connecting sensors and actuators in automated systems.
These connectors offer numerous benefits, including ease of installation and increased operational reliability. The double-ended feature reduces the need for additional cables, and the M12 standard ensures compatibility with a wide range of devices. The angled female design allows for space-saving configurations in compact areas.
Perfect for use in industrial settings, these connectors are ideal for machinery, automation, and control systems. They are engineered to withstand demanding environments, providing a secure and stable connection for critical components.
These connectors offer numerous benefits, including ease of installation and increased operational reliability. The double-ended feature reduces the need for additional cables, and the M12 standard ensures compatibility with a wide range of devices. The angled female design allows for space-saving configurations in compact areas.
Perfect for use in industrial settings, these connectors are ideal for machinery, automation, and control systems. They are engineered to withstand demanding environments, providing a secure and stable connection for critical components.
Downloads
Specifications
| Note Derating: | Notice derating |
|---|---|
| Note, Side 2: | Do not connect or disconnect under load. |
| Number of Pins: | 3 |
| Number of Pins, Side 2: | 3 |
| Number of Wires: | 3 |
| O-Ring Material, Side 2: | FKM, green or black |
| Oil Resistance: | Good chemical and oil resistance |
| Operating Voltage: | 230 V AC/DC |
| Overvoltage Category: | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Overvoltage Category, Side 2: | II acc. to DIN EN 60664-1 (VDE 0110-1) |
| Part Number (#1): | 600006336 |
| Rated Impulse Voltage: | 2.5 kV |
| Rated Voltage: | 250 V |
| RoHS Compliant: | yes |
| Shielding: | Unshielded |
| Type of Contact / Gender: | Male |
| Type of Contact / Gender, Side 2: | Female |
| UL: | |
| UL Cable Type: | AWM 2661, C(RU) AWM I/II A/B |
| UL-File: | E315587 |
| VDE: | |
| Rated Current*: | 4 A |
| Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Pollution Degree, Side 2: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Product Family: | Sensor / Actuator Connectors |
| Product Sub Family: | M12 Standard |
| Product Sub Family, Side 2: | M12 Standard |
| Protection Degree / IP Rating Note: | Protection Degree and IP Rating per test standard IEC 60529 using a Lumberg Automation mating product |
| Protection Degree / IP Rating**: | IP65, IP67 |
| Protection Degree / IP Rating, Side 2**: | IP65, IP67 |
| Wire Insulation Material: | PVC-SR |
| Ambient Temperature (Drag Chain Inst): | - 15 to 105°C |
| Coding: | A |
| Coding, Side 2: | A |
| Conductor Size: | 22 AWG |
| Conductor material: | Cu [Bare Copper] |
| Connector Design: | Straight |
| Connector Design, Side 2: | Angled |
| Connector Type: | Cordset, double ended |
| Contact Base Material (#1): | CuSn |
| Contact Base Material, Side 2: | CuSn |
| Contact Bearer Color: | Orange |
| Contact Bearer Color, Side 2: | Orange |
| Contact Bearer Material (#1): | TPU |
| Contact Bearer Material, Side 2: | TPU |
| Contact Plating: | Cu/Au |
| Cable Number: | 659 |
| Cable Length: | 1 m |
| Ambient Temperature (Fixed Installation): | - 40 to 105°C |
| Ambient Temperature (Flex Installation): | - 15 to 105°C |
| Ambient Temperature (Operation)*: | - 40 °C - + 90 °C |
| Ambient Temperature (Operation), Side 2*: | - 40 °C - + 90 °C |
| Attachment Material: | CuZn, Nickel-plated, External thread |
| Attachment Material, Side 2: | CuZn, Nickel-plated, Internal thread |
| Attachment Type: | Coupling Screw |
| Attachment Type, Side 2: | Coupling Thread |
| Cable Characteristics: | Mechanical Resistances, Abrasion, Impact, Weathering; Chemical Resistances to Oils, Acids, Alkalis |
| Cable Diameter D: | Ø 4.82 mm |
| Cable Jacket Color: | Grey |
| Cable Jacket Material: | PVC |
| Contact Plating, Side 2: | Cu/Au |
| Contact Resistance: | ≤ 10 mOhm |
| Insulated Wire Diameter: | Ø 1.25 mm |
| Insulation Resistance: | ˃ 10^9 Ohm |
| Insulation Resistance, Side 2: | ˃ 10^9 Ohm |
| Item Description: | RST 3-RKWT 4-3-659/1M |
| Long Description (#1): | Sensor / Actuator Connectors: Cordset, double ended, M12 Standard, Straight Male, 3-pole to a, M12 Standard, Angled Female, 3-pole, 250 V | 4 A; with Grey PVC 22 AWG cable |
| Mating Cycles: | ≤ 100 |
| Mating Cycles, Side 2: | ≤ 100 |
| Minimal Bending Radius (Fixed Inst): | ˃ 7 x D |
| Minimal Bending Radius (Flexible Inst): | ˃ 10 x D |
| Molded Body Color: | Grey Transluscent |
| Molded Body Color, Side 2: | Grey Transluscent |
| Molded Body Material: | TPU |
| Contact Resistance, Side 2: | ≤ 10 mOhm |
| Cycles (Bending): | ˃ 1 M |
| Design Standard: | IEC 61076-2-101 |
| Design Standard, Side 2: | IEC 61076-2-101 |
| Fastening Torque (Attachment): | M 12x1: (50-60) Ncm, hand-tight |
| Fastening Torque (Attachment), Side 2: | M 12x1: (50-60) Ncm, hand-tight |
| Flammability Class (Cable Jacket): | UL VW-1, FT1 |
| Flammability Class (Contact Bearer): | UL 94 HB |
| Flammability Class (Contact Bearer), Side 2: | UL 94 HB |
| Flammability Class (Molded Body): | UL 94 HB |
| Flammability Class (Molded Body), Side 2: | UL 94 HB |
| Molded Body Material, Side 2: | TPU |
| Unique No.: | aut600006336 |
