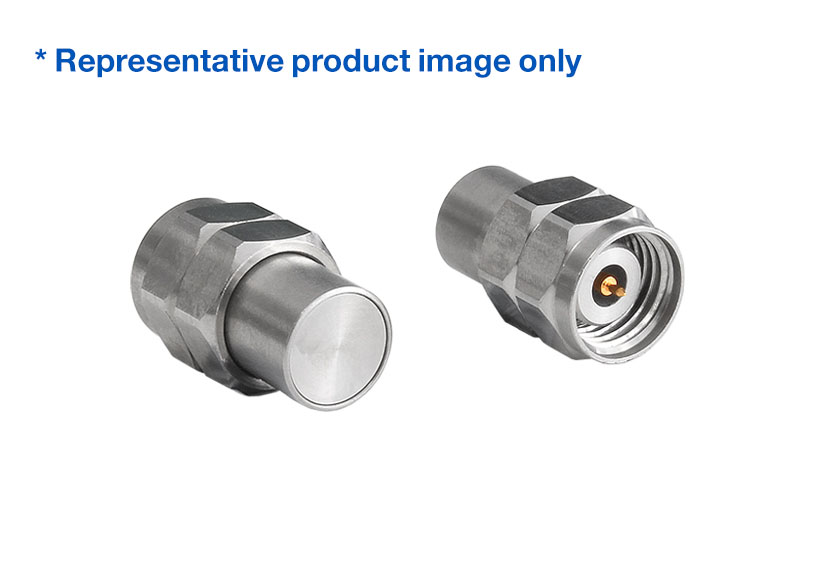

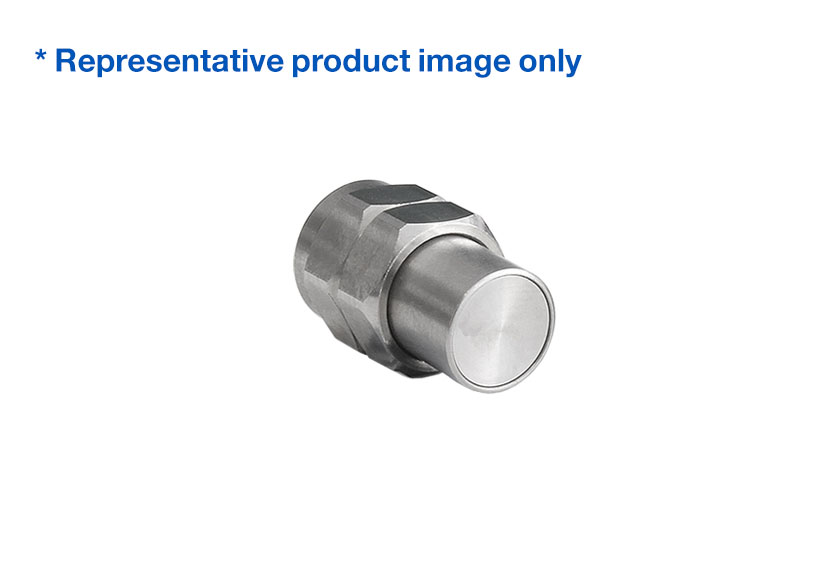

2.40mm Jack Termination (0.5W)
On Request
Vraag product aanPrices excl. VAT plus shipping costs
Article number:RFTERM240J05W
Manufacturer number:RFTERM240J05W
Brand:Bulgin
Minimum order quantity:50
Datasheet (EN)Specifications
| average_power: | <0.5W |
|---|---|
| body_length: | 15.00mm |
| body_material: | Stainless Steel Passivation |
| centre_contact_retention_force: | >26.7N |
| contact_pin_material: | Beryllium Copper |
| dielectric_withstanding_voltage: | >750V |
| durability: | >500 cycles |
| function: | Female RF Termination |
| impedance: | 50Ohm |
| insulation_resistance: | >5000MOhm |
| insulator: | UNFILLED ULTEM 1000/PEI |
| max_operating_frequency: | 50GHz |
| max_operating_temperature: | +85°C |
| min_operating_frequency: | 0GHz |
| min_operating_temperature: | -40°C |
| thread_size: | M7x0.75 6g |
| uniek_nr: | blgRFTERM240J05W |
| voltage_max: | 335V |
| vswr: | <1.25 |
